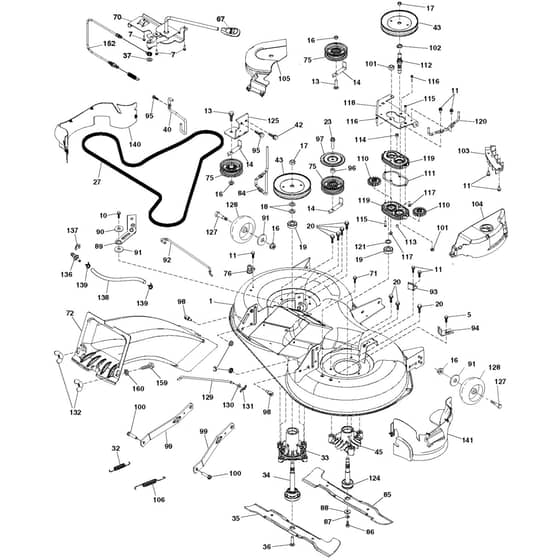

McCulloch M14597HRB - 96051003800 - 2012-01 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M14597HRB - 96051003800 - 2012-01 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70 Out of stock	Spindle (--)	£124.66 £103.88
0	HV583 59 82-01 Out of stock	Cutting Deck (--)	£1,056.12 £880.10
1	HV583 51 39-01 Out of stock	Deck	£268.84 £224.03
3	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
5	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
7	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
10	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
11	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
13	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
16	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
17	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
18	HV532 18 76-90 In stock	Washer	£2.96 £2.47
19	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
20	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
23	HV817 49 06-28 Out of stock	Screw	£5.99 £4.99
27	HV532 43 97-26 In stock	Belt	£57.98 £48.32
32	HV532 40 18-72 Out of stock	Spring	£5.29 £4.41
33	HV587 81 97-01 Out of stock	Bearing Housing	£153.76 £128.13
34	HV532 19 28-72 Out of stock	Shaft Assy	£153.76 £128.13
35	HV532 42 79-84 In stock	Ride On Blade	£29.42 £24.52
36	HV532 19 30-03 Out of stock	Screw	£15.37 £12.81
40	HV531 16 95-01 Out of stock	Belt Guide	£18.25 £15.21
42	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
43	HV532 19 59-45 Out of stock	Pulley	£45.22 £37.68
45	HV532 13 71-52 Out of stock	Bearing Housing	£62.00 £51.67
67	HV532 40 97-92 Out of stock	Handle	£8.81 £7.34
70	HV532 40 12-46 Out of stock	Clutch	£63.95 £53.29
71	HV817 67 06-08 Out of stock	Screw	£4.30 £3.58
72	HV582 03 56-01 Out of stock	Chute	£74.20 £61.83
75	HV597 02 50-01 Out of stock	Pulley	£47.03 £39.19
88	HV532 14 02-96 Out of stock	Washer	£7.86 £6.55
90	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
94	HV532 19 72-50 Out of stock	Bracket	£7.28 £6.07
95	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
98	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
100	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
102	HV532 40 25-11 Out of stock	Spacer	£5.45 £4.54
106	HV532 19 32-16 Out of stock	Ressort Retour Frein De Lame	£6.46 £5.38
110	HV587 93 48-01 Out of stock	Gear	£53.02 £44.18
111	HV583 51 40-01 Out of stock	Gasket	£7.19 £5.99
117	HV586 66 89-01 Out of stock	Nut	£2.20 £1.83
119	HV583 52 76-01 Out of stock	Gearcase	£54.14 £45.12
128	HV532 17 48-73 In stock	Wheel	£16.66 £13.88
129	HV532 40 48-51 Out of stock	Rod	£17.02 £14.18
130	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
131	HV532 19 42-08 Out of stock	Pin	£1.26 £1.05
132	HV532 17 88-99 Out of stock	Knob	£4.66 £3.88
137	HV812 00 00-29 Out of stock	Retainer Ring	£0.78 £0.65
138	HV532 44 07-43 Out of stock	Hose	£5.59 £4.66
139	HV532 44 07-42 Out of stock	Clamp	£0.77 £0.64
140	HV532 44 86-32 Out of stock	Guard	£56.09 £46.74
141	HV532 44 85-30 Out of stock	Guard	£74.08 £61.73
152	HV583 54 84-01 Out of stock	Cable	£41.16 £34.30
159	HV596 98 75-01 Out of stock	Bolt	£6.62 £5.52
