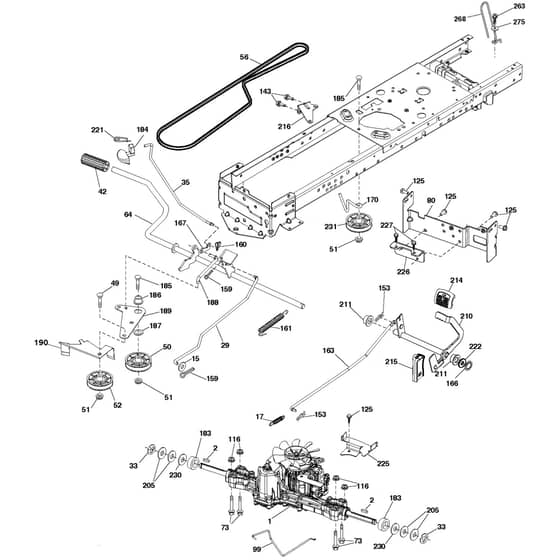

McCulloch M145107T - 96041029201 - 2012-12 - Drive Parts Diagram

Name: McCulloch M145107T - 96041029201 - 2012-12 - Drive Parts Diagram
SKU: m145107t_96041029201_2012_12_drive-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M145107T - 96041029201 - 2012-12 - Drive Parts Diagram

Description

McCulloch M145107T - 96041029201 - 2012-12 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
17	HV532 41 36-78 Out of stock	Srping.Brake.K46.GreenSubs/2	£10.51 £8.76
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
35	HV532 40 10-31 Out of stock	Rod	£10.43 £8.69
49	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
50	HV532 19 43-27 Out of stock	Pulley	£35.15 £29.29
51	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
52	HV532 19 43-26 Out of stock	Pulley	£34.79 £28.99
56	HV532 13 09-69 Out of stock	Belt	£54.73 £45.61
73	HV874 49 05-40 Out of stock	Bolt	£5.53 £4.61
99	HV532 41 57-42 Out of stock	Rod	£11.78 £9.82
116	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
125	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
143	HV817 49 05-08 Out of stock	Screw	£2.96 £2.47
153	HV532 00 44-97 Out of stock	Retainer Ring	£1.51 £1.26
160	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
161	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
163	HV532 44 82-68 Out of stock	Rod	£21.54 £17.95
166	HV532 42 91-64 Out of stock	Nut	£1.42 £1.18
167	HV532 40 52-57 Out of stock	Latch	£4.74 £3.95
170	HV532 41 34-30 Out of stock	Belt Guide	£7.56 £6.30
183	HV532 13 70-57 Out of stock	Spacer	£7.73 £6.44
184	HV532 44 14-07 Out of stock	Brake	£11.20 £9.33
185	HV872 11 06-22 Out of stock	Bolt	£7.48 £6.23
186	HV532 19 43-21 Out of stock	Spacer	£11.27 £9.39
188	HV532 19 43-23 Out of stock	Link	£7.91 £6.59
189	HV532 19 43-17 Out of stock	Plate	£12.12 £10.10
205	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
210	HV532 40 09-80 Out of stock	Pedal Arm	£34.26 £28.55
211	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
215	HV532 40 17-23 Out of stock	Pedal	£29.69 £24.74
221	HV532 40 31-87 Out of stock	Spring	£3.14 £2.62
222	HV879 21 20-10 Out of stock	Washer	£4.66 £3.88
225	HV532 40 33-19 Out of stock	Belt Guide	£12.53 £10.44
230	HV532 18 89-67 Out of stock	Washer	£4.24 £3.53
231	HV532 40 72-87 Out of stock	Pulley	£27.44 £22.87
263	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
