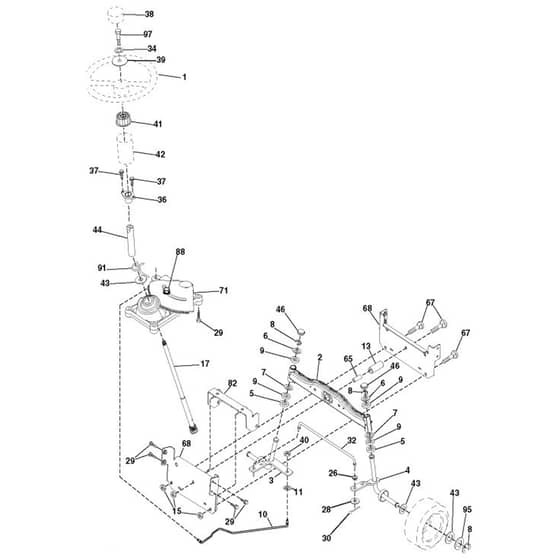

McCulloch M13597 - 96011023802 - 2010-03 - Steering Parts Diagram

Name: McCulloch M13597 - 96011023802 - 2010-03 - Steering Parts Diagram
SKU: m13597_96011023802_2010_03_steering-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M13597 - 96011023802 - 2010-03 - Steering Parts Diagram

Description

McCulloch M13597 - 96011023802 - 2010-03 - Steering Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV531 17 11-01 Out of stock	Axle	£123.32 £102.77
3	HV596 87 39-01 Out of stock	Spindle	£64.38 £53.65
4	HV532 16 98-39 Out of stock	Spindle	£32.98 £27.48
5	HV532 00 62-66 Out of stock	Washer	£2.36 £1.97
6	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
7	HV819 27 20-16 Out of stock	Washer	£2.78 £2.32
8	HV812 00 00-29 Out of stock	Retainer Ring	£0.78 £0.65
9	HV532 00 33-66 Out of stock	Bearing Col. Strg.	£5.46 £4.55
10	HV532 17 51-21 Out of stock	Rod	£62.52 £52.10
13	HV532 13 65-18 Out of stock	Pipe	£5.66 £4.72
17	HV532 19 07-53 Out of stock	Rod	£47.62 £39.68
26	HV532 12 68-47 Out of stock	Bushing	£4.39 £3.66
29	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
32	HV532 19 27-57 Out of stock	Tige D'Assemblage	£59.74 £49.78
34	HV810 04 05-00 Out of stock	Washer	£1.75 £1.46
37	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
39	HV819 11 38-12 Out of stock	Washer	£13.99 £11.66
41	HV587 73 89-05 Out of stock	Adapter	£20.16 £16.80
42	HV532 16 96-33 Out of stock	Sleeve	£21.30 £17.75
43	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
44	HV532 19 07-52 Out of stock	Shaft	£18.61 £15.51
46	HV532 12 12-32 Out of stock	Hub Cap	£4.56 £3.80
65	HV532 41 47-36 Out of stock	Spacer	£7.97 £6.64
67	HV872 11 06-18 Out of stock	Bolt	£6.04 £5.03
68	HV532 16 98-27 Out of stock	Shaft	£38.22 £31.85
71	HV531 16 78-01 Out of stock	Steering Gear	£128.68 £107.23
82	HV531 17 02-01 Out of stock	Support Essieu Avant	£42.96 £35.80
88	HV532 17 51-18 Out of stock	Bolt	£6.28 £5.23
91	HV532 17 55-53 Out of stock	Spring	£3.64 £3.03
95	HV532 18 89-67 Out of stock	Washer	£4.24 £3.53
