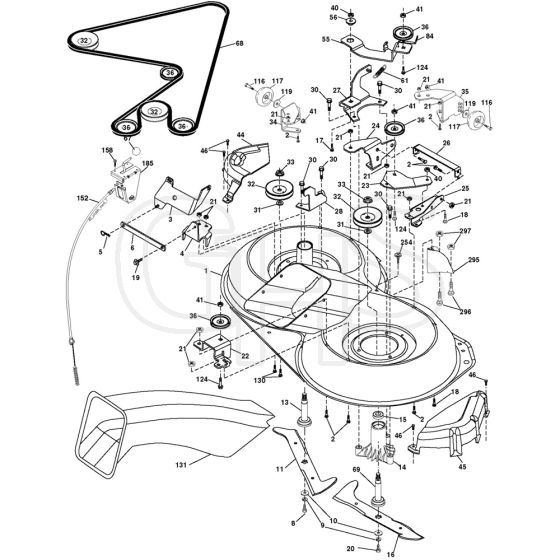

McCulloch M13592RB - 96061012405 - 2009-06 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M13592RB - 96061012405 - 2009-06 - Mower Deck - Cutting Deck Parts Diagram
SKU: m13592rb_96061012405_2009_06_mower_deck_cutting_deck-group
Price: 1.03 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M13592RB - 96061012405 - 2009-06 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M13592RB - 96061012405 - 2009-06 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV583 11 82-01	Bearing Housing (--)	Out of stock	£136.56 £113.80
0	HV583 34 24-01	Cutting Deck (--)	Out of stock	£766.80 £639.00
1	HV583 11 83-01	Bearing Housing (--)	Out of stock	£147.48 £122.90
2	HV595 90 16-01	Bolt	Out of stock	£4.30 £3.58
5	HV596 91 96-01	Retainer Ring	Out of stock	£4.02 £3.35
6	HV532 16 55-57	Rod	Out of stock	£22.39 £18.66
10	HV532 14 02-96	Washer	Out of stock	£8.09 £6.74
11	HV532 18 63-85	Blade	In stock	£31.67 £26.39
14	HV532 12 87-74	Bearing Housing	Out of stock	£68.28 £56.90
15	HV532 11 04-85	Bearing	Out of stock	£7.96 £6.63
16	HV532 18 63-86	Blade	In stock	£31.67 £26.39
19	HV532 13 28-27	Spec. Bolt	Out of stock	£6.85 £5.71
20	HV583 11 70-01	Bolt	Out of stock	£7.21 £6.01
23	HV532 16 54-46	Plate	Out of stock	£28.31 £23.59
25	HV532 16 52-44	Bracket	Out of stock	£57.10 £47.58
27	HV532 16 55-68	Bracket	In stock	Was £35.28 £29.40 Special Price £24.13 £20.11
28	HV532 16 55-67	Bracket	Out of stock	£32.63 £27.19
30	HV584 95 39-01	Screw	Out of stock	£5.60 £4.67
31	HV532 18 76-90	Washer	Out of stock	£3.48 £2.90
32	HV532 17 34-35	Pulley	Out of stock	£33.89 £28.24
33	HV596 13 48-01	Nut	Out of stock	£1.24 £1.03
36	HV593 78 78-01	Pulley	In stock	£53.94 £44.95
40	HV596 32 26-01	Nut	Out of stock	£3.24 £2.70
45	HV532 17 55-39	Cover	Out of stock	£35.95 £29.96
46	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
56	HV532 16 57-23	Spacer	Out of stock	£11.81 £9.84
61	HV583 25 26-01	Spring	Out of stock	£19.88 £16.57
67	HV532 10 69-32	Knob	Out of stock	£9.95 £8.29
68	HV532 40 20-08	Belt	Out of stock	£84.24 £70.20
69	HV532 16 54-82	Shaft	Out of stock	£59.64 £49.70
117	HV532 17 48-73	Wheel	Out of stock	£19.82 £16.52
118	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
124	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
130	HV872 11 05-06	Bolt	Out of stock	£3.85 £3.21
131	HV532 16 56-61	Pipe	Out of stock	£103.80 £86.50
158	HV539 99 00-71	Screw	Out of stock	£1.80 £1.50
185	HV532 18 82-34	Cable	Out of stock	£59.06 £49.22
254	HV817 00 06-16	Screw	Out of stock	£6.11 £5.09
296	HV872 11 04-07	Bolt	Out of stock	£2.75 £2.29
