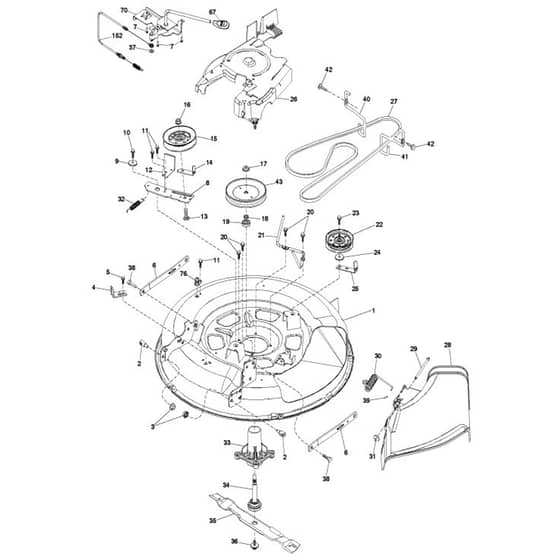

McCulloch M13577H - 96041021200 - 2010-09 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M13577H - 96041021200 - 2010-09 - Mower Deck - Cutting Deck Parts Diagram
SKU: m13577h_96041021200_2010_09_mower_deck_cutting_deck-group
Price: 1.03 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M13577H - 96041021200 - 2010-09 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M13577H - 96041021200 - 2010-09 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70 Out of stock	Spindle Mandrel Assembly (Includes Housing Shaft Assembly+ And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (--)	£118.68 £98.90
1	HV583 74 98-01 Out of stock	Cutting Deck	£193.92 £161.60
2	HV532 19 51-61 Out of stock	Stud	£2.86 £2.38
3	HV873 90 05-00 Out of stock	Nut	£2.60 £2.17
4	HV532 41 76-45 Out of stock	Bracket	£8.71 £7.26
5	HV817 00 05-10 Out of stock	Bolt	£3.48 £2.90
7	HV532 41 63-58 Out of stock	Screw	£1.99 £1.66
9	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
10	HV817 00 06-16 Out of stock	Screw	£6.11 £5.09
11	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
12	HV532 40 01-30 Out of stock	Arm	£20.52 £17.10
13	HV596 13 61-01 Out of stock	Bolt	£6.54 £5.45
15	HV593 78 78-01 In stock	Pulley	£53.94 £44.95
16	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
17	HV596 13 48-01 Out of stock	Nut	£1.24 £1.03
18	HV532 18 76-90 Out of stock	Washer	£3.48 £2.90
19	HV532 11 04-85 Out of stock	Bearing	£7.96 £6.63
20	HV584 95 39-01 Out of stock	Screw	£5.60 £4.67
21	HV532 41 69-10 Out of stock	Belt Guard	£21.41 £17.84
22	HV532 19 31-98 Out of stock	Pulley	£51.55 £42.96
23	HV817 49 06-28 Out of stock	Screw	£7.46 £6.22
27	HV532 41 92-71 Out of stock	Belt	£91.06 £75.88
28	HV532 41 73-44 Out of stock	Deflector	£54.71 £45.59
30	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
31	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
32	HV532 40 18-72 Out of stock	Spring	£7.39 £6.16
33	HV587 81 97-01 Out of stock	Bearing Housing	£150.84 £125.70
34	HV532 19 28-72 Out of stock	Shaft Assy	£153.76 £128.13
35	HV532 41 92-73 Out of stock	Ride On Blade	£43.63 £36.36
36	HV532 19 30-03 In stock	Screw	£16.43 £13.69
38	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
39	HV532 10 53-04 Out of stock	Hub Cap	£3.35 £2.79
40	HV532 41 92-70 Out of stock	Belt Guard	£19.51 £16.26
41	HV532 41 92-65 Out of stock	Belt Guard	£18.89 £15.74
42	HV817 00 06-12 Out of stock	Screw	£5.60 £4.67
43	HV525 56 80-02 In stock	Pulley	£66.92 £55.77
67	HV532 40 97-92 Out of stock	Handle	£9.04 £7.53
70	HV532 19 83-32 Out of stock	Clutch	£52.55 £43.79
76	HV532 41 55-98 Out of stock	Hose Coupling	£5.96 £4.97
152	HV532 43 51-11 In stock	Cable	£65.28 £54.40
