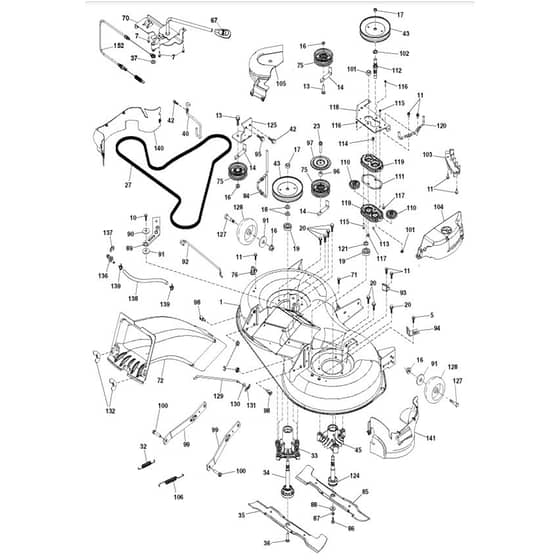

McCulloch M130-97RB - 96051003700 - 2012-01 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M130-97RB - 96051003700 - 2012-01 - Mower Deck - Cutting Deck Parts Diagram
SKU: m130_97rb_96051003700_2012_01_mower_deck_cutting_deck-group
Price: 0.83 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M130-97RB - 96051003700 - 2012-01 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M130-97RB - 96051003700 - 2012-01 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV583 51 39-01	Deck	Out of stock	£234.36 £195.30
0	HV532 19 28-70	Spindle (--)	Out of stock	£118.68 £98.90
3	HV873 90 05-00	Nut	Out of stock	£2.60 £2.17
5	HV817 00 05-10	Bolt	Out of stock	£3.48 £2.90
7	HV532 41 63-58	Screw	Out of stock	£1.99 £1.66
10	HV817 00 06-16	Screw	Out of stock	£6.11 £5.09
11	HV532 13 77-29	Screw	Out of stock	£2.40 £2.00
13	HV596 13 61-01	Bolt	Out of stock	£6.54 £5.45
16	HV532 40 91-49	Nut	Out of stock	£4.51 £3.76
17	HV596 13 48-01	Nut	Out of stock	£1.44 £1.20
18	HV532 18 76-90	Washer	Out of stock	£3.48 £2.90
19	HV532 11 04-85	Bearing	Out of stock	£7.96 £6.63
20	HV584 95 39-01	Screw	Out of stock	£5.60 £4.67
23	HV817 49 06-28	Screw	Out of stock	£7.46 £6.22
27	HV532 43 97-26	Belt	In stock	£67.68 £56.40
32	HV532 40 18-72	Spring	Out of stock	£7.39 £6.16
33	HV587 81 97-01	Bearing Housing	Out of stock	£150.84 £125.70
34	HV532 19 28-72	Shaft Assy	Out of stock	£153.76 £128.13
35	HV532 42 79-84	Ride On Blade	In stock	£30.72 £25.60
36	HV532 19 30-03	Screw	In stock	£13.56 £11.30
40	HV531 16 95-01	Belt Guide	Out of stock	£18.73 £15.61
42	HV532 42 88-67	Screw	Out of stock	£3.85 £3.21
43	HV532 19 59-45	Pulley	Out of stock	£53.26 £44.38
45	HV532 13 71-52	Bearing Housing	Out of stock	£58.68 £48.90
67	HV532 40 97-92	Handle	Out of stock	£9.04 £7.53
70	HV532 40 12-46	Clutch	Out of stock	£63.95 £53.29
71	HV817 67 06-08	Screw	Out of stock	£5.09 £4.24
72	HV582 03 56-01	Chute	Out of stock	£80.76 £67.30
75	HV597 02 50-01	Pulley	Out of stock	£48.25 £40.21
76	HV532 41 55-98	Hose Coupling	In stock	£5.96 £4.97
84	HV589 67 61-03	Keeper	Out of stock	£10.51 £8.76
85	HV532 42 79-85	Blade	In stock	£31.49 £26.24
86	HV583 11 70-01	Bolt	Out of stock	£7.21 £6.01
88	HV532 14 02-96	Washer	Out of stock	£8.09 £6.74
90	HV532 19 90-92	Spacer	Out of stock	£6.66 £5.55
94	HV532 19 72-50	Bracket	Out of stock	£8.71 £7.26
95	HV817 00 06-12	Screw	Out of stock	£5.60 £4.67
98	HV532 19 51-61	Stud	Out of stock	£2.86 £2.38
100	HV532 19 65-39	Bolt	Out of stock	£5.94 £4.95
102	HV532 40 25-11	Spacer	Out of stock	£6.85 £5.71
106	HV532 19 32-16	Ressort Retour Frein De Lame	Out of stock	£8.09 £6.74
110	HV587 93 48-01	Gear	Out of stock	£52.55 £43.79
111	HV583 51 40-01	Gasket	Out of stock	£7.64 £6.37
117	HV586 66 89-01	Nut	Out of stock	£2.87 £2.39
119	HV583 52 76-01	Gearcase	Out of stock	£59.40 £49.50
128	HV532 17 48-73	Wheel	Out of stock	£19.82 £16.52
129	HV532 40 48-51	Rod	Out of stock	£20.52 £17.10
130	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
131	HV532 19 42-08	Pin	Out of stock	£1.67 £1.39
132	HV532 17 88-99	Knob	Out of stock	£5.46 £4.55
137	HV812 00 00-29	Retainer Ring	In stock	£1.06 £0.88
138	HV532 44 07-43	Hose	Out of stock	£6.94 £5.78
139	HV532 44 07-42	Clamp	Out of stock	£1.00 £0.83
140	HV532 44 86-32	Guard	Out of stock	£61.20 £51.00
152	HV583 54 84-01	Cable	Out of stock	£48.48 £40.40
