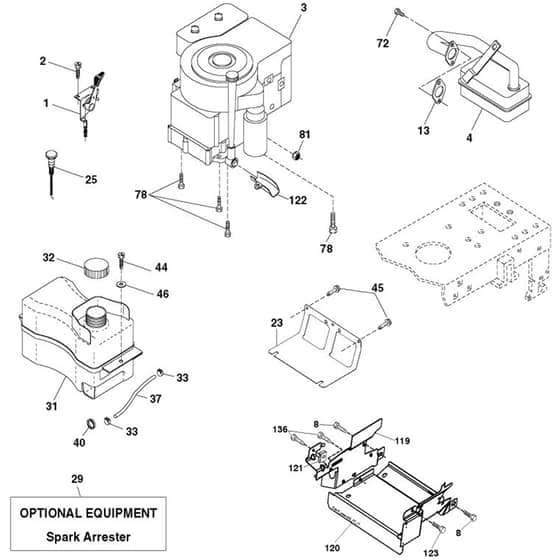

McCulloch M12597RB - 96061028700 - 2010-07 - Engine Parts Diagram

Name: McCulloch M12597RB - 96061028700 - 2010-07 - Engine Parts Diagram
SKU: m12597rb_96061028700_2010_07_engine-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M12597RB - 96061028700 - 2010-07 - Engine Parts Diagram

Description

McCulloch M12597RB - 96061028700 - 2010-07 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 17 05-51 Out of stock	Throttle Control	£33.31 £27.76
2	HV539 99 00-71 Out of stock	Screw	£1.75 £1.46
4	HV532 17 97-58 Out of stock	Muffler	£110.05 £91.71
8	HV532 17 18-77 Out of stock	Bolt	£4.09 £3.41
13	HV532 27 22-93 Out of stock	Gasket	£5.36 £4.47
23	HV531 15 07-01 Out of stock	Heat Shield	£39.20 £32.67
29	HV532 13 71-80 Out of stock	Spark Arrester Kit	£38.62 £32.18
31	HV532 43 08-28 Out of stock	Fuel Tank	£70.45 £58.71
32	HV581 07 55-01 Out of stock	Fuel Cap	£25.43 £21.19
33	HV532 12 34-87 Out of stock	Hose Clamp	£0.60 £0.50
37	HV532 13 70-40 Out of stock	Hose	£15.14 £12.62
44	HV817 67 04-12 Out of stock	Screw	£4.30 £3.58
45	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
46	HV819 09 14-16 Out of stock	Washer	£2.54 £2.12
72	HV596 13 42-01 Out of stock	Screw	£3.70 £3.08
78	HV817 06 06-20 Out of stock	Screw	£5.36 £4.47
119	HV532 19 97-68 Out of stock	* Lenkrad	£17.89 £14.91
121	HV532 19 66-88 Out of stock	Nut	£3.14 £2.62
122	HV532 42 19-22 Out of stock	Extension Pipe	£6.48 £5.40
136	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
