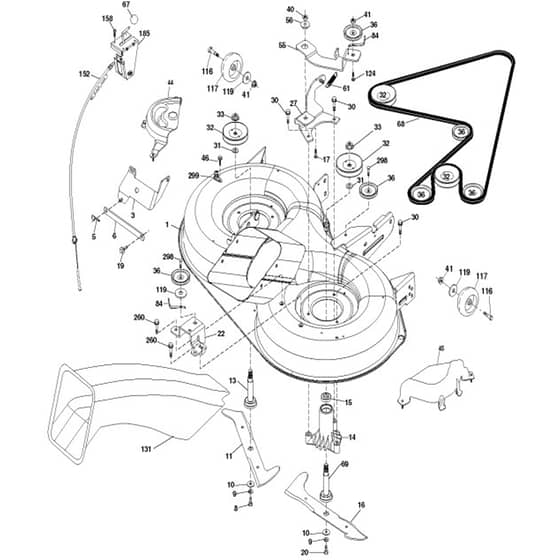

McCulloch M12597HRB - 96061031401 - 2011-04 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M12597HRB - 96061031401 - 2011-04 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV583 11 82-01 Out of stock	Bearing Housing (Includes Housing+ Shaft Assembly+ And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (---)	£125.40 £104.50
1	HV583 48 63-01 Out of stock	Cutting Deck	£254.40 £212.00
1	HV583 11 83-01 Out of stock	Bearing Housing (---)	£135.11 £112.59
5	HV596 91 96-01 Out of stock	Retainer Ring	£3.91 £3.26
6	HV532 16 55-57 Out of stock	Rod	£18.64 £15.53
10	HV532 14 02-96 Out of stock	Washer	£7.86 £6.55
11	HV532 42 79-84 In stock	Ride On Blade	£29.42 £24.52
14	HV532 12 87-74 Out of stock	Bearing Housing	£62.72 £52.27
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
16	HV532 42 79-85 In stock	Blade	£29.42 £24.52
19	HV532 13 28-27 Out of stock	Spec. Bolt	£5.46 £4.55
30	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
32	HV532 17 34-35 Out of stock	Pulley	£28.51 £23.76
33	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
36	HV593 78 78-01 In stock	Pulley	£45.84 £38.20
40	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
41	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
44	HV532 43 11-70 Out of stock	Cover	£25.55 £21.29
45	HV532 42 91-66 Out of stock	Cover	£21.89 £18.24
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
56	HV532 16 57-23 Out of stock	Spacer	£9.58 £7.98
61	HV583 25 26-01 Out of stock	Spring	£16.78 £13.98
67	HV532 10 69-32 Out of stock	Knob	£8.47 £7.06
68	HV584 45 44-01 Out of stock	Belt	£77.04 £64.20
69	HV532 16 54-82 Out of stock	Shaft	£54.40 £45.33
117	HV532 17 48-73 In stock	Wheel	£16.66 £13.88
124	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
131	HV532 16 56-61 Out of stock	Pipe	£94.96 £79.13
158	HV539 99 00-71 Out of stock	Screw	£1.75 £1.46
185	HV532 18 82-34 Out of stock	Cable	£49.96 £41.63
260	HV817 67 06-08 Out of stock	Screw	£4.30 £3.58
298	HV817 49 06-28 Out of stock	Screw	£5.99 £4.99
299	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
