McCulloch M12597H - 96041026800 - 2011-09 - Drive Parts Diagram

McCulloch M12597H - 96041026800 - 2011-09 - Drive Parts Diagram
McCulloch M12597H - 96041026800 - 2011-09 - Drive Parts Diagram

Description

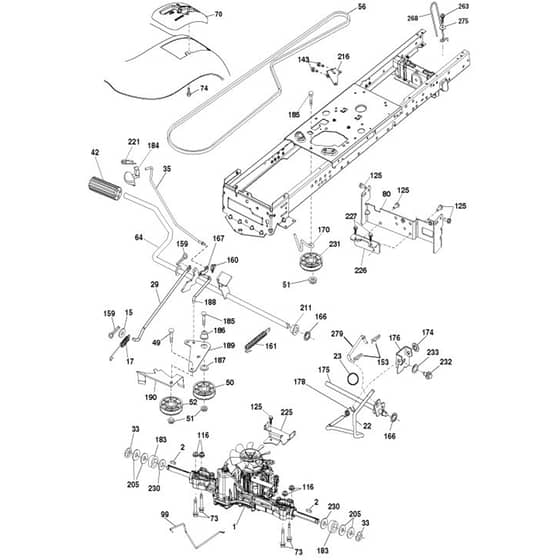

McCulloch M12597H - 96041026800 - 2011-09 - Drive Parts Diagram

Ref. Img. Part No. Details
  2 Key
Key
HV532 12 35-83 Out of stock
Key
£6.16 £5.13

  17 Srping.Brake.K46.Green*Subs/2*
Srping.Brake.K46.Green*Subs/2*
HV532 41 36-78 Out of stock
Srping.Brake.K46.Green*Subs/2*
£10.51 £8.76

  22 Rod
Rod
HV532 19 76-60 Out of stock
Rod
£49.21 £41.01

  33 Retainer Ring
Retainer Ring
HV812 00 00-01 Out of stock
Retainer Ring
£0.60 £0.50

  35 Rod
Rod
HV532 40 10-31 Out of stock
Rod
£10.43 £8.69

  49 Bolt
Bolt
HV872 11 06-14 Out of stock
Bolt
£5.65 £4.71

  50 Pulley
Pulley
HV532 19 43-27 Out of stock
Pulley
£35.15 £29.29

  51 Nut
Nut
HV532 40 91-49 Out of stock
Nut
£4.51 £3.76

  52 Pulley
Pulley
HV532 19 43-26 Out of stock
Pulley
£34.79 £28.99

  56 Belt
Belt
HV532 13 09-69 Out of stock
Belt
£54.73 £45.61

  64 Shaft
Shaft
HV532 19 62-00 Out of stock
Shaft
£85.86 £71.55

  73 Bolt
Bolt
HV874 49 05-40 Out of stock
Bolt
£5.53 £4.61

  74 Screw
Screw
HV532 14 24-32 Out of stock
Screw
£1.84 £1.53

  99 Rod
Rod
HV532 41 57-42 Out of stock
Rod
£11.78 £9.82

  116 Nut
Nut
HV873 90 05-00 Out of stock
Nut
£2.20 £1.83

  125 Screw
Screw
HV532 42 88-67 Out of stock
Screw
£3.20 £2.67

  143 Screw
Screw
HV817 49 05-08 Out of stock
Screw
£2.96 £2.47

  153 Retainer Ring
Retainer Ring
HV532 00 44-97 Out of stock
Retainer Ring
£1.51 £1.26

  160 Pin
Pin
HV532 16 94-84 Out of stock
Pin
£3.89 £3.24

  161 Spring
Spring
HV532 10 57-09 Out of stock
Spring
£15.65 £13.04

  166 Nut
Nut
HV532 42 91-64 Out of stock
Nut
£1.42 £1.18

  167 Latch
Latch
HV532 40 52-57 Out of stock
Latch
£4.74 £3.95

  170 Belt Guide
Belt Guide
HV532 41 34-30 Out of stock
Belt Guide
£7.56 £6.30

  174 Nut
Nut
HV532 19 72-89 Out of stock
Nut
£1.63 £1.36

  183 Spacer
Spacer
HV532 13 70-57 Out of stock
Spacer
£7.73 £6.44

  184 Brake
Brake
HV532 44 14-07 Out of stock
Brake
£11.20 £9.33

  185 Bolt
Bolt
HV872 11 06-22 Out of stock
Bolt
£7.48 £6.23

  186 Spacer
Spacer
HV532 19 43-21 Out of stock
Spacer
£11.27 £9.39

  188 Link
Link
HV532 19 43-23 Out of stock
Link
£7.91 £6.59

  189 Plate
Plate
HV532 19 43-17 Out of stock
Plate
£12.12 £10.10

  205 Washer
Washer
HV532 12 17-48 Out of stock
Washer
£4.90 £4.08

  211 Bushing
Bushing
HV532 19 62-12 Out of stock
Bushing
£8.36 £6.97

  221 Spring
Spring
HV532 40 31-87 Out of stock
Spring
£3.14 £2.62

  225 Belt Guide
Belt Guide
HV532 40 33-19 Out of stock
Belt Guide
£12.53 £10.44

  230 Washer
Washer
HV532 18 89-67 Out of stock
Washer
£4.24 £3.53

  231 Pulley
Pulley
HV532 40 72-87 Out of stock
Pulley
£27.44 £22.87

  263 Screw
Screw
HV817 00 06-12 Out of stock
Screw
£4.74 £3.95
