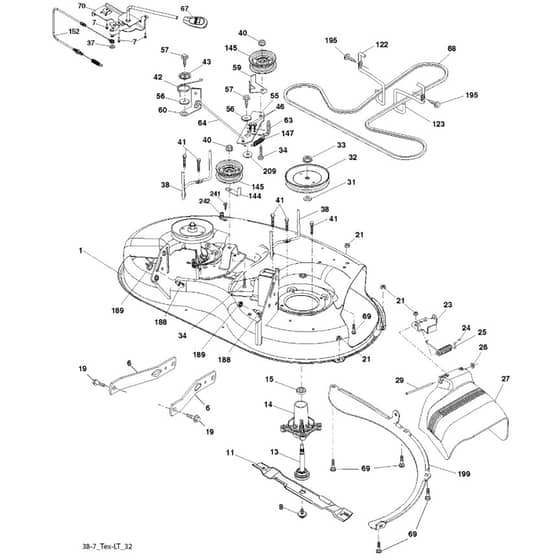

McCulloch M125-97T - 96041028801 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M125-97T - 96041028801 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram
SKU: m125_97t_96041028801_2012_12_mower_deck_cutting_deck-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125-97T - 96041028801 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M125-97T - 96041028801 - 2012-12 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV583 26 32-01 Out of stock	Cutting Deck Not Shown (--)	£748.88 £624.07
0	HV532 19 28-70 Out of stock	Spindle Mandrel Assembly (Includes Housing (Key# 14)+ Shaft Assembly (Key# 13) And Bearing (Key# 15) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) (--)	£124.66 £103.88
1	HV583 30 49-01 Out of stock	Housing	£261.30 £217.75
7	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
8	HV532 19 30-03 In stock	Screw	£15.37 £12.81
11	HV581 11 63-02 In stock	Ride On Blade	£24.16 £20.13
13	HV532 19 28-72 Out of stock	Shaft Assy	£153.76 £128.13
14	HV587 81 97-01 Out of stock	Bearing Housing	£153.76 £128.13
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
23	HV532 19 25-57 Out of stock	Hinge	£10.96 £9.13
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
25	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
27	HV532 40 14-72 Out of stock	Deflector	£44.06 £36.72
29	HV595 29 70-01 Out of stock	Shaft	£13.98 £11.65
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
32	HV531 17 00-01 Out of stock	Pulley	£44.36 £36.97
33	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
34	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
40	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
41	HV584 95 39-01 Out of stock	Bolt	£4.74 £3.95
42	HV532 19 84-10 Out of stock	Spring	£4.15 £3.46
43	HV532 19 72-56 Out of stock	Spring	£4.03 £3.36
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
55	HV531 16 94-01 In stock	Arm	£15.12 £12.60
56	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
57	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
60	HV532 19 94-71 Out of stock	Arm	£11.03 £9.19
63	HV532 40 01-30 Out of stock	Arm	£17.21 £14.34
67	HV532 40 97-92 Out of stock	Handle	£8.81 £7.34
68	HV532 40 83-81 In stock	Belt	£52.56 £43.80
69	HV596 13 64-01 Out of stock	Bolt	£3.16 £2.63
70	HV532 40 12-46 Out of stock	Clutch	£52.31 £43.59
122	HV531 16 95-01 Out of stock	Belt Guide	£18.25 £15.21
123	HV531 16 97-01 Out of stock	Belt Guide	£12.98 £10.82
144	HV532 19 34-14 Out of stock	Belt Guide	£5.66 £4.72
145	HV532 17 79-68 Out of stock	Pulley	£49.49 £41.24
147	HV532 40 18-72 Out of stock	Spring	£5.29 £4.41
152	HV532 43 51-11 In stock	Cable	£56.68 £47.23
188	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
189	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
195	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
199	HV531 17 04-01 Out of stock	Baffle	£27.28 £22.73
241	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
