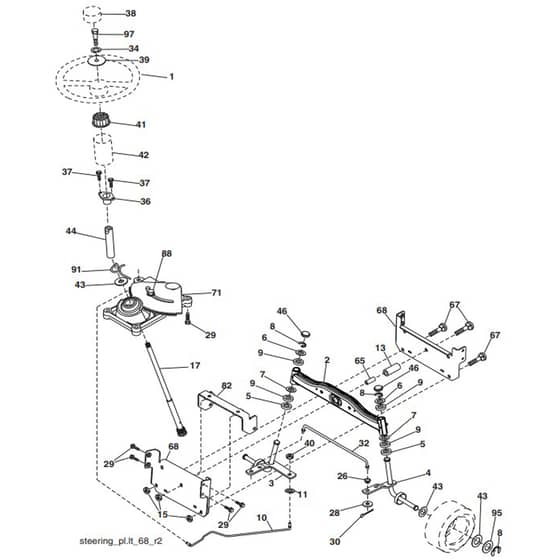

McCulloch M11597 - 96011023407 - 2010-07 - Steering Parts Diagram

Name: McCulloch M11597 - 96011023407 - 2010-07 - Steering Parts Diagram
SKU: m11597_96011023407_2010_07_steering-group
Price: 0.80 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M11597 - 96011023407 - 2010-07 - Steering Parts Diagram

Description

McCulloch M11597 - 96011023407 - 2010-07 - Steering Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV531 17 11-01 Out of stock	Axle	£101.64 £84.70
3	HV596 87 39-01 Out of stock	Spindle	£64.38 £53.65
4	HV532 16 98-39 Out of stock	Spindle	£33.83 £28.19
5	HV532 00 62-66 Out of stock	Washer	£2.41 £2.01
6	HV532 12 17-48 Out of stock	Washer	£5.17 £4.31
7	HV819 27 20-16 Out of stock	Washer	£2.84 £2.37
8	HV812 00 00-29 Out of stock	Retainer Ring	£0.96 £0.80
9	HV532 00 33-66 Out of stock	Bearing Col. Strg.	£5.46 £4.55
10	HV532 17 51-21 Out of stock	Rod	£62.52 £52.10
13	HV532 13 65-18 Out of stock	Pipe	£5.82 £4.85
15	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
17	HV532 19 07-53 Out of stock	Rod	£48.85 £40.71
26	HV532 12 68-47 Out of stock	Bushing	£4.52 £3.77
29	HV817 00 06-12 Out of stock	Screw	£4.87 £4.06
32	HV532 19 27-57 Out of stock	Tige D'Assemblage	£61.28 £51.07
34	HV810 04 05-00 Out of stock	Washer	£1.80 £1.50
37	HV532 15 29-27 Out of stock	Screw	£2.12 £1.77
39	HV819 11 38-12 Out of stock	Washer	£14.36 £11.97
41	HV587 73 89-05 Out of stock	Adapter	£20.16 £16.80
42	HV532 16 96-33 Out of stock	Sleeve	£21.85 £18.21
43	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
44	HV532 19 07-52 Out of stock	Shaft	£19.09 £15.91
46	HV532 12 12-32 In stock	Hub Cap	£4.82 £4.02
65	HV532 41 47-36 Out of stock	Spacer	£8.17 £6.81
67	HV872 11 06-18 Out of stock	Bolt	£6.19 £5.16
68	HV532 16 98-27 Out of stock	Shaft	£39.22 £32.68
71	HV531 16 78-01 Out of stock	Steering Gear	£106.08 £88.40
82	HV531 17 02-01 Out of stock	Support Essieu Avant	£42.96 £35.80
88	HV532 17 51-18 Out of stock	Bolt	£6.43 £5.36
91	HV532 17 55-53 Out of stock	Spring	£3.72 £3.10
95	HV532 18 89-67 Out of stock	Washer	£4.34 £3.62
97	HV532 42 89-82 Out of stock	Bolt	£7.43 £6.19
