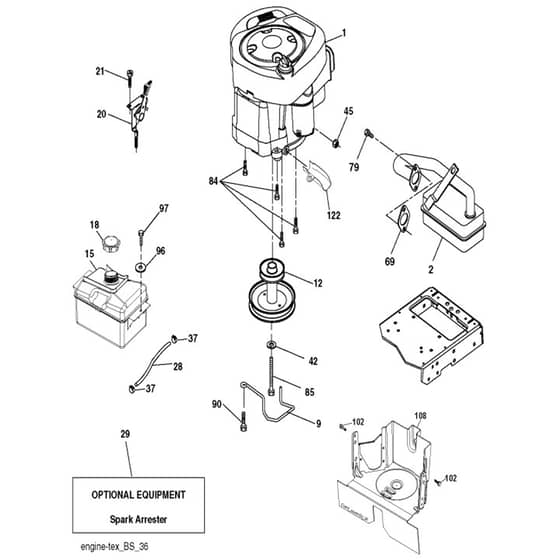

McCulloch M11577RB - 96041016500 - 2010-07 - Engine Parts Diagram

Name: McCulloch M11577RB - 96041016500 - 2010-07 - Engine Parts Diagram
SKU: m11577rb_96041016500_2010_07_engine-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M11577RB - 96041016500 - 2010-07 - Engine Parts Diagram

Description

McCulloch M11577RB - 96041016500 - 2010-07 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV583 74 98-01 Out of stock	Cutting Deck	£184.96 £154.13
2	HV532 17 97-58 Out of stock	Muffler	£110.05 £91.71
9	HV532 19 43-19 Out of stock	Belt Guide	£16.48 £13.73
15	HV581 28 99-01 In stock	Fuel Tank	£48.32 £40.27
18	HV581 07 55-01 Out of stock	Fuel Cap	£25.43 £21.19
21	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
28	HV532 13 70-40 Out of stock	Hose	£15.14 £12.62
29	HV532 13 71-80 Out of stock	Spark Arrester Kit	£38.62 £32.18
37	HV532 12 34-87 Out of stock	Hose Clamp	£0.60 £0.50
42	HV810 04 07-00 Out of stock	Washer	£3.20 £2.67
69	HV532 27 22-93 Out of stock	Gasket	£5.36 £4.47
79	HV596 13 42-01 Out of stock	Screw	£3.70 £3.08
84	HV817 06 06-20 Out of stock	Screw	£5.36 £4.47
85	HV532 17 39-37 Out of stock	Bolt	£9.78 £8.15
90	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
96	HV819 09 14-16 Out of stock	Washer	£2.54 £2.12
97	HV817 67 04-12 Out of stock	Screw	£4.30 £3.58
102	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
108	HV532 43 16-89 Out of stock	Cover	£55.04 £45.87
122	HV532 42 19-22 Out of stock	Extension Pipe	£6.48 £5.40
