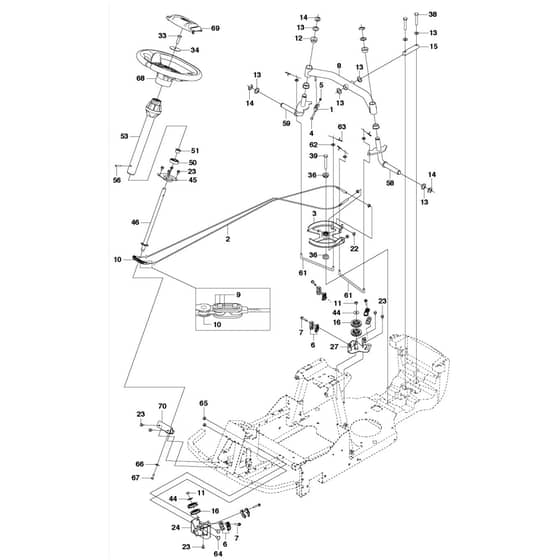

McCulloch M105-97F - 967207001 - 2013-01 - Steering Parts Diagram

Name: McCulloch M105-97F - 967207001 - 2013-01 - Steering Parts Diagram
SKU: m105_97f_967207001_2013_01_steering-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M105-97F - 967207001 - 2013-01 - Steering Parts Diagram

Description

McCulloch M105-97F - 967207001 - 2013-01 - Steering Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV580 82 16-01 Out of stock	Wire	£21.42 £17.85
4	HV725 23 78-51 Out of stock	Screw Ehhm	£3.43 £2.86
5	HV732 21 16-01 Out of stock	Lock Nut	£1.66 £1.38
9	HV506 55 47-01 In stock	Linkage	£4.48 £3.73
13	HV506 50 48-05 Out of stock	Washer	£2.93 £2.44
14	HV735 31 22-20 Out of stock	E-Clip	£0.77 £0.64
16	HV581 15 82-01 Out of stock	Pulley	£9.50 £7.92
22	HV731 23 18-01 Out of stock	Hexagon Nut	£2.99 £2.49
23	HV725 23 64-61 Out of stock	Screw Ehhft	£2.40 £2.00
33	HV725 24 97-51 Out of stock	Screw	£6.61 £5.51
38	HV506 67 54-02 In stock	Screw Ehhfm	£6.49 £5.41
39	HV725 25 02-71 Out of stock	Screw Ehhm	£7.10 £5.92
44	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
50	HV738 21 04-04 Out of stock	Ball Bearing	£8.00 £6.67
51	HV506 88 78-01 Out of stock	Spacer	£7.30 £6.08
56	HV721 43 47-01 Out of stock	Spring Pin	£1.60 £1.33
59	HV576 83 25-01 Out of stock	Spindle	£59.03 £49.19
61	HV576 83 29-01 Out of stock	Tie Rod	£6.79 £5.66
62	HV734 11 64-01 Out of stock	Washer	£2.20 £1.83
63	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
64	HV727 64 49-51 Out of stock	Screw Rsqm	£3.76 £3.13
65	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
66	HV734 11 54-41 Out of stock	Washer	£2.46 £2.05
67	HV535 47 52-12 Out of stock	Screw Ehhfm	£3.43 £2.86
68	HV532 44 28-04 Out of stock	Steering Wheel	£97.86 £81.55
69	HV532 44 77-59 Out of stock	Cap	£17.00 £14.17
