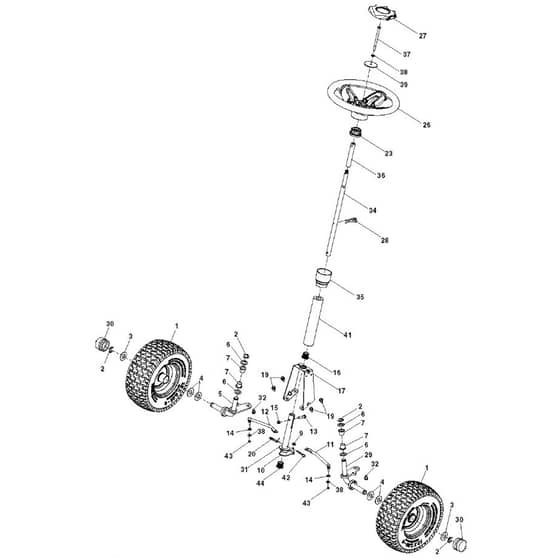

McCulloch M105-77X - 96021001800 - 2011-12 - Steering Parts Diagram

Name: McCulloch M105-77X - 96021001800 - 2011-12 - Steering Parts Diagram
SKU: m105_77x_96021001800_2011_12_steering-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M105-77X - 96021001800 - 2011-12 - Steering Parts Diagram

Description

McCulloch M105-77X - 96021001800 - 2011-12 - Steering Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 44 20-64 Out of stock	Wheel	£101.16 £84.30
2	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
3	HV532 18 89-67 Out of stock	Washer	£4.24 £3.53
4	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
5	HV532 43 61-81 Out of stock	Spindle	£29.34 £24.45
6	HV532 00 62-66 Out of stock	Washer	£2.36 £1.97
7	HV532 00 33-66 Out of stock	Bearing Col. Strg.	£5.46 £4.55
14	HV734 11 63-01 Out of stock	Washer	£2.40 £2.00
15	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
16	HV532 42 87-94 Out of stock	Bushing	£4.24 £3.53
17	HV532 43 61-78 Out of stock	Support	£7.58 £6.32
19	HV532 42 88-67 Out of stock	Screw	£3.20 £2.67
23	HV587 73 89-05 Out of stock	Adapter Wheel	£20.16 £16.80
26	HV532 42 45-51 Out of stock	Steering Wheel	£47.17 £39.31
28	HV532 19 98-49 Out of stock	Spring Retainer	£2.87 £2.39
29	HV532 43 61-80 Out of stock	Spindle	£29.34 £24.45
30	HV532 19 32-68 Out of stock	Hub Cap	£4.76 £3.97
32	HV817 58 05-20 Out of stock	Bolt	£4.30 £3.58
35	HV532 44 20-66 Out of stock	Boot	£5.39 £4.49
36	HV532 44 49-81 Out of stock	Shaft	£29.81 £24.84
37	HV747 80 51-04 Out of stock	Bolt	£7.94 £6.62
38	HV810 04 05-00 Out of stock	Washer	£1.75 £1.46
39	HV819 11 38-12 Out of stock	Washer	£13.99 £11.66
41	HV532 43 65-90 Out of stock	Shaft	£6.73 £5.61
43	HV873 54 05-00 Out of stock	Nut	£1.81 £1.51
