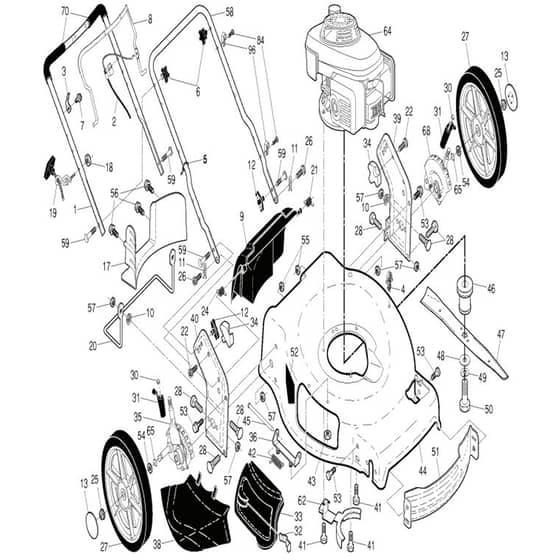

McCulloch EDITION XXL-R - 96141023202 - 2011-06 - Frame Parts Diagram

McCulloch EDITION XXL-R - 96141023202 - 2011-06 - Frame Parts Diagram
McCulloch EDITION XXL-R - 96141023202 - 2011-06 - Frame Parts Diagram

Description

McCulloch EDITION XXL-R - 96141023202 - 2011-06 - Frame Parts Diagram

Ref. Img. Part No. Details
  1 Handle Half (Includes Foam Grip)
Handle Half (Includes Foam Grip)
HV583 13 45-01 Out of stock
Handle Half (Includes Foam Grip)
£46.40 £38.67

  2 Cable
Cable
HV532 42 40-33 Out of stock
Cable
£37.13 £30.94

  3 Bracket
Bracket
HV532 43 00-34 Out of stock
Bracket
£6.13 £5.11

  4 Clip
Clip
HV532 14 50-06 Out of stock
Clip
£0.73 £0.61

  6 Knob
Knob
HV532 18 23-98 Out of stock
Knob
£6.91 £5.76

  7 Screw
Screw
HV532 75 06-34 Out of stock
Screw
£1.19 £0.99

  11 Cotter
Cotter
HV532 42 55-75 Out of stock
Cotter
£0.59 £0.49

  12 Knob
Knob
HV532 18 55-77 Out of stock
Knob
£6.07 £5.06

  18 Nut
Nut
HV532 05 06-75 Out of stock
Nut
£1.81 £1.51

  19 Guide
Guide
HV532 19 47-88 Out of stock
Guide
£3.43 £2.86

  25 Nut
Nut
HV532 40 91-49 Out of stock
Nut
£4.51 £3.76

  26 Screw
Screw
HV532 41 99-45 Out of stock
Screw
£4.98 £4.15

  27 Wheel
Wheel
HV532 43 35-91 Out of stock
Wheel
£27.23 £22.69

  28 Bolt
Bolt
HV596 13 64-01 Out of stock
Bolt
£3.16 £2.63

  30 Nut
Nut
HV583 34 30-01 Out of stock
Nut
£1.25 £1.04

  31 Knob
Knob
HV532 42 61-89 Out of stock
Knob
£6.06 £5.05

  32 Latch
Latch
HV532 44 11-92 Out of stock
Latch
£4.30 £3.58

  33 Mulch Door
Mulch Door
HV594 94 20-02 Out of stock
Mulch Door
£18.62 £15.52

  36 Hinge
Hinge
HV532 17 57-35 Out of stock
Hinge
£6.82 £5.68

  38 Deflector
Deflector
HV532 42 61-29 Out of stock
Deflector
£12.66 £10.55

  42 Hinge
Hinge
HV532 19 30-00 Out of stock
Hinge
£5.84 £4.87

  43 Nut
Nut
HV532 19 17-30 Out of stock
Nut
£1.81 £1.51

  45 Rod
Rod
HV532 17 56-50 Out of stock
Rod
£4.51 £3.76

  46 Adapter
Adapter
HV581 47 33-01 Out of stock
Adapter
£33.52 £27.93

  47 Blade
Blade
HV580 24 40-02 Out of stock
Blade
£29.28 £24.40

  48 Washer
Washer
HV532 85 10-74 Out of stock
Washer
£4.06 £3.38

  49 Washer
Washer
HV596 23 87-01 Out of stock
Washer
£2.46 £2.05

  50 Screw
Screw
HV532 85 10-84 Out of stock
Screw
£6.26 £5.22

  51 Baffle
Baffle
HV532 43 05-99 Out of stock
Baffle
£41.59 £34.66

  53 Bolt
Bolt
HV817 00 05-10 Out of stock
Bolt
£2.96 £2.47

  54 Washer
Washer
HV532 08 83-48 Out of stock
Washer
£1.93 £1.61

  56 Screw
Screw
HV817 41 13-12 Out of stock
Screw
£5.38 £4.48

  57 Nut
Nut
HV532 15 53-77 Out of stock
Nut
£2.02 £1.68

  59 Screw
Screw
HV532 19 15-74 Out of stock
Screw
£4.74 £3.95

  62 Bracket
Bracket
HV532 42 57-11 Out of stock
Bracket
£6.84 £5.70

  65 O-Ring
O-Ring
HV532 19 74-80 Out of stock
O-Ring
£3.06 £2.55

  84 Fastener
Fastener
HV532 42 81-24 Out of stock
Fastener
£6.05 £5.04

  96 Clip
Clip
HV532 19 79-91 Out of stock
Clip
£0.60 £0.50
