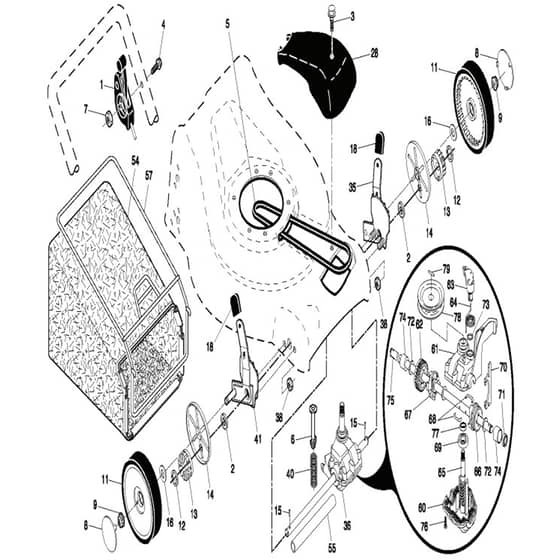

McCulloch EDITION 1-R - 96141016200 - Drive Parts Diagram

McCulloch EDITION 1-R - 96141016200 - Drive Parts Diagram
McCulloch EDITION 1-R - 96141016200 - Drive Parts Diagram

Description

McCulloch EDITION 1-R - 96141016200 - Drive Parts Diagram

Ref. Img. Part No. Details
  1 Control
Control
HV532 18 45-88 Out of stock
Control
£52.76 £43.97

  2 Bearing
Bearing
HV532 16 73-87 Out of stock
Bearing
£5.83 £4.86

  3 Screw
Screw
HV532 17 52-62 Out of stock
Screw
£1.84 £1.53

  4 Screw
Screw
HV532 15 87-55 Out of stock
Screw
£4.22 £3.52

  5 V-Belt
V-Belt
HV532 17 54-36 Out of stock
V-Belt
£21.08 £17.57

  6 Pin Retaining Screw
Pin Retaining Screw
HV532 15 04-95 Out of stock
Pin Retaining Screw
£3.76 £3.13

  7 Nut
Nut
HV532 19 17-30 Out of stock
Nut
£1.81 £1.51

  9 Nut
Nut
HV532 40 91-49 Out of stock
Nut
£4.51 £3.76

  11 Wheel
Wheel
HV532 18 07-75 Out of stock
Wheel
£21.06 £17.55

  12 E-Clip
E-Clip
HV812 00 00-58 Out of stock
E-Clip
£0.59 £0.49

  13 Pinion
Pinion
HV532 40 38-49 Out of stock
Pinion
£8.06 £6.72

  14 Dust Cover
Dust Cover
HV581 84 04-01 Out of stock
Dust Cover
£7.97 £6.64

  15 Pawl Drive
Pawl Drive
HV532 40 48-45 Out of stock
Pawl Drive
£5.21 £4.34

  16 Washer
Washer
HV532 06 77-25 Out of stock
Washer
£7.20 £6.00

  18 Knob
Knob
HV532 70 10-37 Out of stock
Knob
£4.72 £3.93

  35 Bracket
Bracket
HV581 49 79-08 Out of stock
Bracket
£31.25 £26.04

  38 Nut
Nut
HV586 66 89-01 Out of stock
Nut
£2.20 £1.83

  40 Spring
Spring
HV532 13 70-90 Out of stock
Spring
£3.31 £2.76

  41 Bracket
Bracket
HV581 49 79-07 Out of stock
Bracket
£27.37 £22.81

  54 Grassbag
Grassbag
HV532 41 06-67 Out of stock
Grassbag
£59.46 £49.55

  57 Frame
Frame
HV532 41 19-50 Out of stock
Frame
£65.48 £54.57

  60 Case
Case
HV532 18 34-97 Out of stock
Case
£17.96 £14.97

  61 Housing
Housing
HV532 18 34-98 Out of stock
Housing
£29.78 £24.82

  62 Gear
Gear
HV532 18 34-99 Out of stock
Gear
£16.09 £13.41

  63 Lever
Lever
HV532 18 35-00 Out of stock
Lever
£5.75 £4.79

  64 Spring
Spring
HV532 18 35-01 Out of stock
Spring
£4.54 £3.78

  65 Shaft
Shaft
HV532 18 35-02 Out of stock
Shaft
£40.76 £33.97

  66 Dog Movable
Dog Movable
HV532 18 35-03 Out of stock
Dog Movable
£8.30 £6.92

  67 Dog Fixed
Dog Fixed
HV532 18 35-04 Out of stock
Dog Fixed
£6.28 £5.23

  68 Wire Formed
Wire Formed
HV532 18 35-05 Out of stock
Wire Formed
£9.00 £7.50

  71 Seal Output Shaft
Seal Output Shaft
HV532 18 35-08 Out of stock
Seal Output Shaft
£7.32 £6.10

  73 Seal Case
Seal Case
HV532 18 35-10 Out of stock
Seal Case
£7.44 £6.20

  74 Bushing
Bushing
HV532 18 35-11 Out of stock
Bushing
£7.12 £5.93

  78 Pulley
Pulley
HV532 19 98-52 Out of stock
Pulley
£17.00 £14.17
