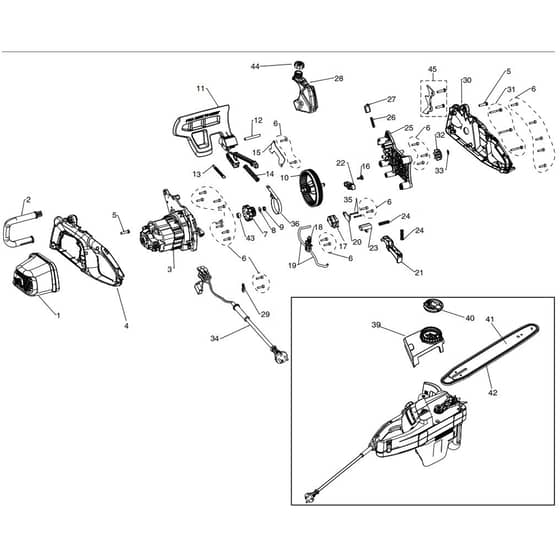

McCulloch CSE1935S - 2014-05 - Main Assy Parts Diagram

Name: McCulloch CSE1935S - 2014-05 - Main Assy Parts Diagram
SKU: cse1935s_2014_05_main_assy-group
Price: 0.56 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CSE1935S - 2014-05 - Main Assy Parts Diagram

Description

McCulloch CSE1935S - 2014-05 - Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV581 12 67-01 Out of stock	Motor Cover	£27.66 £23.05
2	HV581 12 69-01 Out of stock	Front Handle	£23.86 £19.88
3	HV579 04 49-04 Out of stock	Motor Assy	£90.72 £75.60
4	HV581 12 66-01 Out of stock	Housing	£42.34 £35.28
5	HV530 01 64-32 Out of stock	Screw	£1.74 £1.45
6	HV530 01 64-49 Out of stock	Screw	£1.21 £1.01
7	HV579 04 31-01 Out of stock	Pinion	£39.08 £32.57
8	HV586 55 58-01 Out of stock	Disc Spring	£1.63 £1.36
9	HV574 59 44-01 Out of stock	Nut	£1.48 £1.23
10	HV579 65 88-01 Out of stock	Gear Assy	£34.88 £29.07
11	HV579 59 00-01 Out of stock	Link Assy	£26.59 £22.16
12	HV579 04 53-02 Out of stock	Pen	£4.61 £3.84
13	HV579 04 43-01 Out of stock	Spring	£3.62 £3.02
14	HV579 58 98-01 Out of stock	Spring	£4.64 £3.87
15	HV579 04 48-01 Out of stock	Plate	£5.54 £4.62
16	HV579 59 86-01 Out of stock	Screw	£1.39 £1.16
17	HV586 07 22-02 Out of stock	Micro Switch	£18.49 £15.41
18	HV579 04 39-01 Out of stock	Oil Pump	£18.14 £15.12
19	HV579 04 41-01 Out of stock	Oil Hose	£12.43 £10.36
20	HV586 07 34-01 Out of stock	Plate	£5.06 £4.22
21	HV581 13 27-01 Out of stock	Trigger	£8.66 £7.22
22	HV579 04 40-01 Out of stock	Lever	£6.22 £5.18
23	HV581 13 28-01 Out of stock	Locking Button	£4.37 £3.64
24	HV530 04 20-91 Out of stock	Spring	£3.28 £2.73
25	HV581 00 65-02 Out of stock	Bearing Housing Assy	£30.08 £25.07
26	HV545 07 12-01 Out of stock	Spring. Handguard Position	£3.16 £2.63
27	HV580 63 75-01 Out of stock	Catch	£4.15 £3.46
28	HV580 97 78-02 Out of stock	Tank Assy	£34.63 £28.86
29	HV579 71 55-01 Out of stock	Cord Bracket	£4.37 £3.64
30	HV581 12 65-01 Out of stock	Housing	£47.10 £39.25
31	HV530 01 64-48 Out of stock	Screw	£1.39 £1.16
32	HV579 04 57-01 Out of stock	Sprocket	£18.16 £15.13
33	HV530 04 20-90 Out of stock	Retainer Ring	£0.67 £0.56
34	HV579 66 37-03 Out of stock	Cord	£25.09 £20.91
35	HV586 08 24-01 Out of stock	Pen	£3.67 £3.06
36	HV579 04 47-01 Out of stock	Brake Band	£11.29 £9.41
39	HV585 63 84-03 Out of stock	Cover	£37.21 £31.01
40	HV577 31 44-01 Out of stock	Assembly	£24.66 £20.55
41	HV577 61 43-26 Out of stock	Bar	£31.48 £26.23
42	HV577 61 51-22 Out of stock	Saw Chain	£23.40 £19.50
43	HV586 62 83-01 Out of stock	Spacer	£3.30 £2.75
44	HV586 87 37-01 Out of stock	Tank Cap Assy	£9.04 £7.53
45	HV586 87 36-01 Out of stock	Spike	£7.10 £5.92
