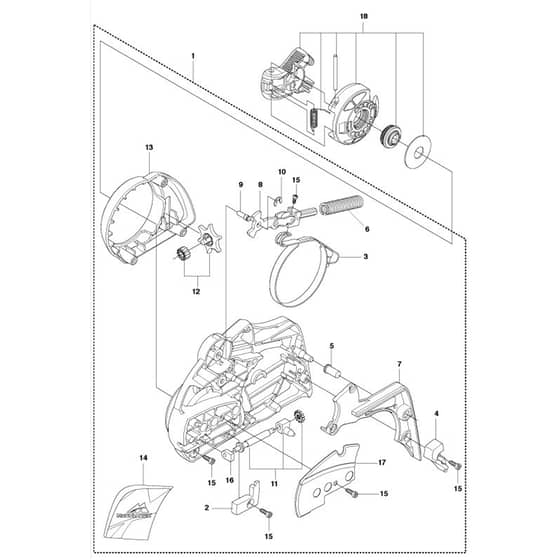

McCulloch CS390 - 2011-07 - Chain Brake & Clutch Cover Parts Diagram

Ref. Img. Part No. Details
  1 Clutch Cover Assy
Clutch Cover Assy
HV576 27 45-01 Out of stock
Clutch Cover Assy
£83.59 £69.66

  2 Cover Lid (1)
Cover Lid (1)
HV504 54 28-01 Out of stock
Cover Lid (1)
£3.91 £3.26

  3 Brake Band Assy (1)
Brake Band Assy (1)
HV544 30 60-03 Out of stock
Brake Band Assy (1)
£11.02 £9.18

  4 Wear Protection (1)
Wear Protection (1)
HV544 25 31-01 Out of stock
Wear Protection (1)
£5.84 £4.87

  5 Guide Bushing (1)
Guide Bushing (1)
HV503 85 52-01 Out of stock
Guide Bushing (1)
£5.33 £4.44

  6 Brake Spring (1)
Brake Spring (1)
HV505 89 26-01 Out of stock
Brake Spring (1)
£4.76 £3.97

  7 Cover Lid (1)
Cover Lid (1)
HV544 24 85-01 Out of stock
Cover Lid (1)
£7.88 £6.57

  8 Knee Joint Assy (1)
Knee Joint Assy (1)
HV503 89 08-02 Out of stock
Knee Joint Assy (1)
£26.40 £22.00

  9 Pin (1)
Pin (1)
HV503 89 29-01 Out of stock
Pin (1)
£1.30 £1.08

  10 E-Clip (1)
E-Clip (1)
HV735 31 08-20 Out of stock
E-Clip (1)
£0.60 £0.50

  11 Screw (1)
Screw (1)
HV537 39 29-01 Out of stock
Screw (1)
£5.78 £4.82

  12 Gear Assy (1)
Gear Assy (1)
HV537 34 72-01 Out of stock
Gear Assy (1)
£9.66 £8.05

  13 Heat Shield (1)
Heat Shield (1)
HV576 27 47-01 Out of stock
Heat Shield (1)
£6.01 £5.01

  15 Screw ccrpant (1)
Screw ccrpant (1)
HV503 21 70-10 Out of stock
Screw ccrpant (1)
£1.36 £1.13

  16 Bearing Sleeve (1)
Bearing Sleeve (1)
HV525 35 43-01 Out of stock
Bearing Sleeve (1)
£5.33 £4.44

  17 Wear Plate (1)
Wear Plate (1)
HV505 32 10-01 Out of stock
Wear Plate (1)
£3.64 £3.03

  18 Knob
Knob
HV537 34 78-01 Out of stock
Knob
£24.04 £20.03
