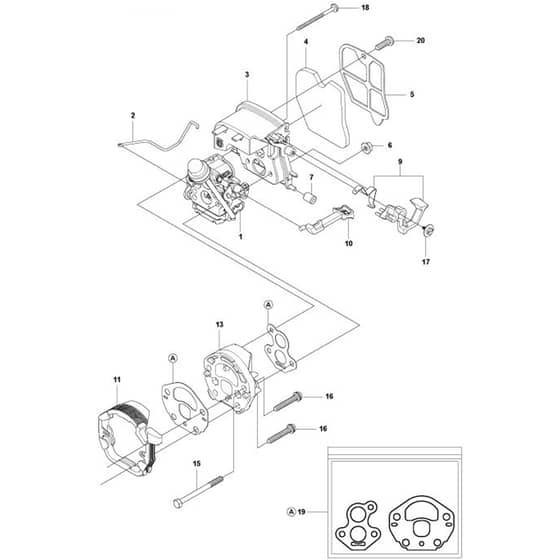

McCulloch CS340 - 966631401 - 2011-03 - Carburetor & Air Filter Parts Diagram

Name: McCulloch CS340 - 966631401 - 2011-03 - Carburetor & Air Filter Parts Diagram
SKU: cs340_966631401_2011_03_carburetor_air_filter-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CS340 - 966631401 - 2011-03 - Carburetor & Air Filter Parts Diagram

Description

McCulloch CS340 - 966631401 - 966631402 - 966631403 - 966631404 - 966631405 - 2011-03 - Carburetor & Air Filter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV586 93 62-02 In stock	Carburettor	£63.08 £52.57
2	HV577 81 52-01 Out of stock	Throttle	£5.12 £4.27
3	HV575 49 34-01 Out of stock	Air Filter	£9.56 £7.97
4	HV545 06 18-01 In stock	Air Filter	£6.12 £5.10
5	HV545 15 18-01 Out of stock	Filter	£6.31 £5.26
6	HV530 01 61-01 Out of stock	Nut	£1.42 £1.18
7	HV545 06 19-01 Out of stock	Isolator	£1.36 £1.13
9	HV577 83 07-01 Out of stock	Kit	£7.74 £6.45
10	HV545 06 16-01 Out of stock	Choke Knob	£5.33 £4.44
11	HV545 06 15-01 Out of stock	Carb Adaptor Seal	£3.82 £3.18
13	HV577 63 65-01 Out of stock	Adaptor	£14.75 £12.29
16	HV545 15 83-01 Out of stock	Carb Adaptor Screw	£1.81 £1.51
17	HV530 01 60-80 Out of stock	Screw	£1.19 £0.99
18	HV545 07 49-01 Out of stock	Top Stud-Carburetor	£1.69 £1.41
19	HV545 08 18-92 In stock	Gasket Kit	£14.05 £11.71
20	HV530 01 63-49 Out of stock	Screw	£1.39 £1.16
