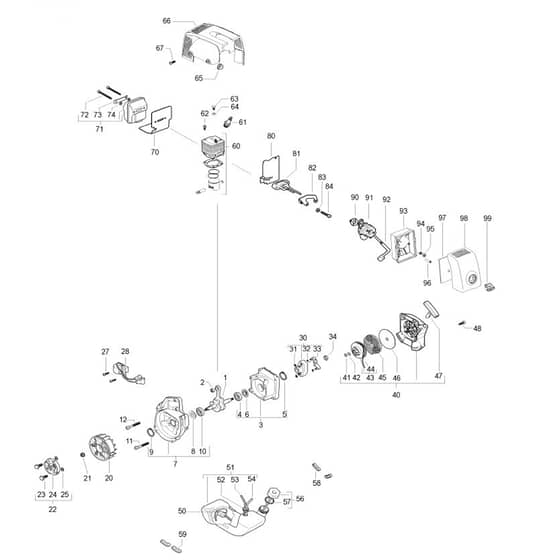

McCulloch CABRIO PLUS 467 L - 2007-01 - Engine Parts Diagram

Name: McCulloch CABRIO PLUS 467 L - 2007-01 - Engine Parts Diagram
SKU: cabrio_plus_467_l_2007_01_engine-group
Price: 0.42 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CABRIO PLUS 467 L - 2007-01 - Engine Parts Diagram

Description

McCulloch CABRIO PLUS 467 L - 2007-01 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV501 45 16-01 In stock	Needle Bearing	£10.19 £8.49
6	HV538 24 31-74 Out of stock	Seal	£8.39 £6.99
7	HV538 25 00-74 Out of stock	Crankcase Assy	£76.00 £63.33
10	HV538 22 75-41 Out of stock	Ball Bearing	£7.16 £5.97
21	HV538 23 52-18 Out of stock	Nut	£2.54 £2.12
22	HV538 24 88-08 Out of stock	Clutch	£51.71 £43.09
23	HV538 24 23-69 Out of stock	Clutch Pin	£5.75 £4.79
24	HV538 24 12-70 Out of stock	Spring	£4.38 £3.65
25	HV538 24 10-76 Out of stock	Washer	£2.20 £1.83
27	HV538 23 58-06 Out of stock	Screw	£1.87 £1.56
31	HV538 11 10-88 Out of stock	Retainer Ring	£0.71 £0.59
33	HV538 24 17-81 Out of stock	Pawl	£5.83 £4.86
41	HV538 24 27-86 Out of stock	Retaining Spring	£3.02 £2.52
42	HV538 22 74-70 Out of stock	Washer	£2.20 £1.83
44	HV538 22 77-03 Out of stock	Starter Rope	£4.96 £4.13
45	HV538 22 73-00 Out of stock	Return Spring	£14.54 £12.12
46	HV538 22 74-67 Out of stock	Washer	£2.20 £1.83
48	HV538 24 38-52 Out of stock	Screw	£0.50 £0.42
50	HV538 24 04-52 Out of stock	Filter	£7.93 £6.61
51	HV538 24 15-41 Out of stock	Tank	£53.12 £44.27
52	HV538 23 56-75 Out of stock	Grommet	£4.27 £3.56
57	HV538 23 65-64 Out of stock	O-Ring	£3.53 £2.94
58	HV538 24 12-48 Out of stock	Grommet	£6.10 £5.08
61	3380 In stock	Spark Plug	£3.96 £3.30
65	HV538 23 63-22 Out of stock	Grommet	£3.67 £3.06
67	HV538 24 06-88 Out of stock	Screw	£1.87 £1.56
70	HV538 24 37-67 Out of stock	Gasket	£10.85 £9.04
72	HV538 22 72-74 Out of stock	Screw	£3.43 £2.86
80	HV538 24 14-28 Out of stock	Gasket	£7.55 £6.29
81	HV538 24 14-34 Out of stock	Adapter	£14.94 £12.45
83	HV538 23 52-48 Out of stock	Washer	£2.20 £1.83
90	HV538 22 76-92 Out of stock	Gasket	£4.78 £3.98
95	HV538 23 56-42 Out of stock	Nut	£1.43 £1.19
96	HV538 22 71-43 Out of stock	Stud	£7.02 £5.85
97	HV538 24 37-64 Out of stock	Air Filter	£5.90 £4.92
99	HV538 24 37-65 Out of stock	Knob	£6.25 £5.21
