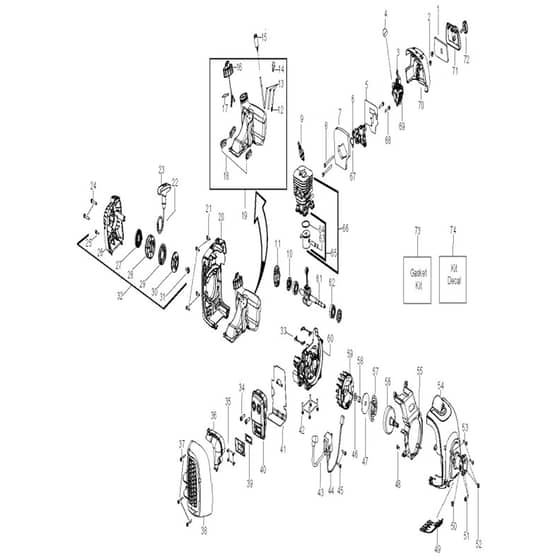

McCulloch B28B - 966778601 - 2012-04 - Engine Parts Diagram

Ref. Img. Part No. Details
  1 Air Filter
Air Filter
HV578 15 64-01 Out of stock
Air Filter
£7.70 £6.42

  2 Nut
Nut
HV530 01 61-01 Out of stock
Nut
£1.42 £1.18

  3 Lever
Lever
HV530 05 78-44 Out of stock
Lever
£7.79 £6.49

  4 Bulb
Bulb
HV530 05 87-09 Out of stock
Bulb
£9.58 £7.98

  5 Gasket Kit
Gasket Kit
HV545 00 80-84 Out of stock
Gasket Kit
£20.80 £17.33

  6 Adapter
Adapter
HV530 03 55-96 Out of stock
Adapter
£8.81 £7.34

  9 Spark Plug
Spark Plug
HV503 23 51-11 In stock
Spark Plug
£4.00 £3.33

  11 Starter Pawl
Starter Pawl
HV503 87 33-05 In stock
Starter Pawl
£16.38 £13.65

  12 Nipple
Nipple
HV530 02 38-77 Out of stock
Nipple
£5.77 £4.81

  13 Hose
Hose
HV530 06 95-99 Out of stock
Hose
£11.94 £9.95

  15 Filter
Filter
HV530 09 56-46 In stock
Filter
£6.85 £5.71

  16 Tank Cap Assy
Tank Cap Assy
HV574 26 90-01 Out of stock
Tank Cap Assy
£9.78 £8.15

  18 Insulator
Insulator
HV530 05 97-80 Out of stock
Insulator
£6.46 £5.38

  19 Kit
Kit
HV578 88 02-01 Out of stock
Kit
£59.96 £49.97

  20 Housing
Housing
HV578 16 06-01 Out of stock
Housing
£25.93 £21.61

  21 Screw
Screw
HV530 01 64-48 Out of stock
Screw
£1.39 £1.16

  24 Screw
Screw
HV530 01 64-26 Out of stock
Screw
£1.84 £1.53

  25 Screw
Screw
HV530 01 64-49 Out of stock
Screw
£1.19 £0.99

  27 Spring
Spring
HV545 00 80-87 Out of stock
Spring
£10.34 £8.62

  28 Kit
Kit
HV585 53 03-01 In stock
Kit
£18.44 £15.37

  29 Spring
Spring
HV578 46 51-01 In stock
Spring
£13.19 £10.99

  30 Pulley
Pulley
HV579 36 62-01 Out of stock
Pulley
£11.82 £9.85

  31 Screw
Screw
HV530 01 64-68 Out of stock
Screw
£1.84 £1.53

  32 Kit
Kit
HV578 88 01-01 Out of stock
Kit
£56.94 £47.45

  34 Bolt
Bolt
HV530 05 89-82 Out of stock
Bolt
£2.08 £1.73

  35 Screw
Screw
HV530 01 52-41 Out of stock
Screw
£1.63 £1.36

  39 Screen
Screen
HV545 03 05-01 Out of stock
Screen
£11.82 £9.85

  42 Screw
Screw
HV530 01 58-97 Out of stock
Screw
£1.64 £1.37

  45 Screw
Screw
HV530 01 64-56 Out of stock
Screw
£1.39 £1.16

  46 Washer
Washer
HV530 01 64-63 Out of stock
Washer
£2.11 £1.76

  47 Washer
Washer
HV530 09 41-89 Out of stock
Washer
£8.05 £6.71

  50 Screw
Screw
HV530 01 58-86 Out of stock
Screw
£1.63 £1.36

  51 Screw
Screw
HV530 01 57-74 Out of stock
Screw
£2.28 £1.90

  52 Nut
Nut
HV530 01 57-68 Out of stock
Nut
£2.20 £1.83

  55 Baffle
Baffle
HV578 16 03-01 Out of stock
Baffle
£11.68 £9.73

  56 Clutch Drum Assy
Clutch Drum Assy
HV578 42 66-02 Out of stock
Clutch Drum Assy
£52.58 £43.82

  57 Clutch Assy
Clutch Assy
HV530 05 51-22 Out of stock
Clutch Assy
£44.81 £37.34

  58 Ring
Ring
HV530 05 78-52 Out of stock
Ring
£5.00 £4.17

  59 Flywheel
Flywheel
HV530 03 92-42 Out of stock
Flywheel
£46.14 £38.45

  60 Crankcase
Crankcase
HV577 92 95-02 Out of stock
Crankcase
£50.11 £41.76

  61 Crankshaft
Crankshaft
HV585 41 54-02 Out of stock
Crankshaft
£99.10 £82.58

  62 Bearing
Bearing
HV545 01 34-01 Out of stock
Bearing
£5.87 £4.89

  63 Circlip
Circlip
HV530 01 51-62 Out of stock
Circlip
£1.93 £1.61

  64 Ring
Ring
HV575 22 79-01 Out of stock
Ring
£6.29 £5.24

  65 Piston
Piston
HV545 03 03-01 Out of stock
Piston
£43.20 £36.00

  66 Kit
Kit
HV545 00 80-83 Out of stock
Kit
£120.89 £100.74

  69 Carburettor Kit
Carburettor Kit
HV545 08 18-48 In stock
Carburettor Kit
£62.02 £51.68

  71 Filter Cover
Filter Cover
HV578 16 02-01 Out of stock
Filter Cover
£7.76 £6.47
