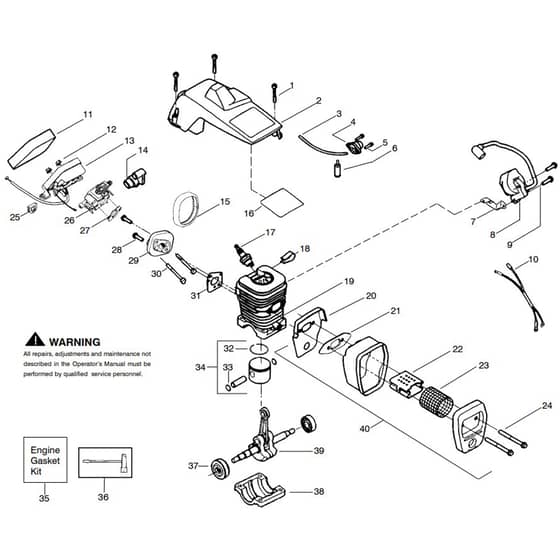

McCulloch 444 - 2008-05 - Engine Parts Diagram

Name: McCulloch 444 - 2008-05 - Engine Parts Diagram
SKU: 444_2008_05_engine-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch 444 - 2008-05 - Engine Parts Diagram

Description

McCulloch 444 - 2008-05 - Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV530 01 61-53 Out of stock	Screw	£1.67 £1.39
2	HV530 05 69-14 Out of stock	Cylinder Cover	£42.84 £35.70
3	HV530 06 92-47 Out of stock	Hose	£6.91 £5.76
4	HV530 07 18-35 Out of stock	Purge	£12.10 £10.08
6	HV530 09 56-46 Out of stock	Filter	£6.94 £5.78
7	HV530 04 74-42 Out of stock	Plate	£3.65 £3.04
8	HV530 03 92-38 Out of stock	Ignition Module	£53.94 £44.95
9	HV530 01 58-14 In stock	Screw	£1.74 £1.45
10	HV530 05 74-75 Out of stock	Assembly	£10.34 £8.62
11	HV530 03 77-93 Out of stock	Air Filter	£6.47 £5.39
12	HV530 01 61-01 Out of stock	Nut	£1.55 £1.29
13	HV530 05 77-02 Out of stock	Assembly	£9.19 £7.66
15	HV530 05 41-44 Out of stock	Sealing	£6.13 £5.11
17	9494 In stock	Spark Plug	£3.72 £3.10
19	HV530 01 25-50 Out of stock	Cylinder	£66.36 £55.30
20	HV530 04 98-70 Out of stock	Plate	£3.35 £2.79
21	HV530 06 96-08 Out of stock	Gasket Kit	£15.53 £12.94
22	HV530 03 78-13 Out of stock	Flame Protection	£3.59 £2.99
23	HV530 03 61-03 Out of stock	Screen	£9.31 £7.76
24	HV530 01 61-32 Out of stock	Bolt	£4.19 £3.49
25	HV530 04 76-31 Out of stock	Grommet	£4.34 £3.62
26	HV545 08 18-85 Out of stock	Carburettor	£88.08 £73.40
28	HV530 01 63-86 Out of stock	Screw	£1.43 £1.19
29	HV530 04 97-00 Out of stock	Partition	£12.12 £10.10
30	HV530 01 61-87 Out of stock	Screw	£2.35 £1.96
32	HV545 16 04-01 Out of stock	Piston Ring	£6.06 £5.05
33	HV530 01 56-97 Out of stock	Locking Ring	£0.56 £0.47
34	HV530 07 14-08 Out of stock	Piston	£51.90 £43.25
36	HV530 03 11-35 Out of stock	Wrench	£4.63 £3.86
37	HV530 05 63-63 Out of stock	Bearing	£6.62 £5.52
