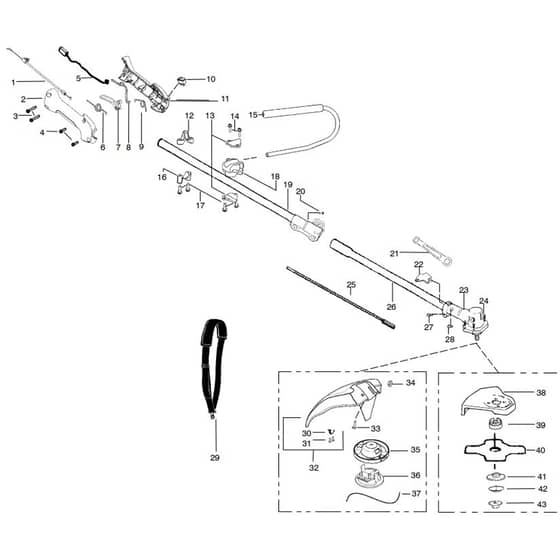

McCulloch 2500 CXL - 2010-03 - Shaft & Handle (2) Parts Diagram

Name: McCulloch 2500 CXL - 2010-03 - Shaft & Handle (2) Parts Diagram
SKU: 2500_cxl_2010_03_shaft_handle_2_-group
Price: 0.86 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch 2500 CXL - 2010-03 - Shaft & Handle (2) Parts Diagram

Description

McCulloch 2500 CXL - 2010-03 - Shaft & Handle (2) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV545 04 43-01 Out of stock	Assembly	£4.26 £3.55
2	HV545 01 29-02 Out of stock	Hsg Throttle Right Black	£11.47 £9.56
3	HV530 01 64-06 Out of stock	Screw	£1.81 £1.51
5	HV530 05 41-83 Out of stock	Assy Throttle Wire	£6.90 £5.75
6	HV545 06 72-01 Out of stock	Spring	£3.31 £2.76
7	HV545 01 30-01 Out of stock	Throttle Trigger Red	£7.64 £6.37
8	HV545 01 31-01 Out of stock	Throttle Lockout Red	£5.89 £4.91
10	HV530 06 95-72 Out of stock	Switch	£13.03 £10.86
11	HV545 01 32-01 Out of stock	Hsg Throttle Lh Black Euro	£18.67 £15.56
12	HV530 05 79-86 Out of stock	Clamp	£4.84 £4.03
13	HV530 05 85-63 Out of stock	Bracket	£1.03 £0.86
14	HV530 01 58-86 Out of stock	Screw	£1.63 £1.36
15	HV530 07 19-74 Out of stock	Kit	£24.97 £20.81
16	HV530 05 79-87 Out of stock	Clamp	£3.50 £2.92
17	HV530 01 59-40 Out of stock	Screw	£1.84 £1.53
18	HV545 02 45-01 Out of stock	Clamp	£12.26 £10.22
19	HV575 26 07-01 Out of stock	Cover	£104.63 £87.19
20	HV530 01 63-44 Out of stock	Screw	£1.39 £1.16
21	HV530 05 64-01 Out of stock	Wrench	£1.54 £1.28
22	HV530 05 75-54 Out of stock	Bracket	£6.13 £5.11
23	HV530 09 61-00 Out of stock	Gearbox	£73.42 £61.18
24	HV530 01 63-12 Out of stock	Screw	£1.63 £1.36
25	HV545 17 30-03 Out of stock	Shaft	£86.46 £72.05
27	HV530 01 60-14 Out of stock	Screw	£1.84 £1.53
28	HV530 01 57-75 Out of stock	Screw	£1.84 £1.53
30	HV530 05 22-86 Out of stock	Line	£5.72 £4.77
31	HV530 01 58-14 Out of stock	Screw	£1.63 £1.36
33	HV530 01 58-20 Out of stock	Screw	£2.96 £2.47
34	HV530 01 51-97 Out of stock	Nut	£2.02 £1.68
36	HV545 04 95-01 Out of stock	Cap	£6.85 £5.71
39	HV530 09 58-15 Out of stock	Cup	£13.69 £11.41
41	HV530 09 58-16 Out of stock	Washer	£11.27 £9.39
42	HV530 01 62-40 Out of stock	Washer	£3.64 £3.03
43	HV530 01 57-93 Out of stock	Nut	£5.24 £4.37
