MC 640 - 2012-2015 - 204016003/M12 - Mountfield Chainsaw Housing Diagram

Description

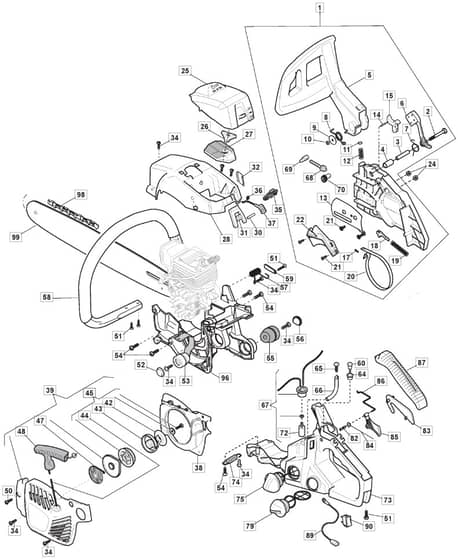

Mountfield MC 640 Parts Diagram

Model Year - 2012-2015

Model Type - C 41

Art.N - 204016003/M12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118801733/0 Out of stock	Clutch Housing Red	£24.11 £20.09
2	MO123878017/0 Out of stock	Screw	£1.34 £1.12
6	MO118800748/0 Out of stock	Balance Weigth	£1.74 £1.45
7	MO123430572/0 Out of stock	Spring	£2.41 £2.01
8	MO118800747/0 Out of stock	Spring	£1.34 £1.12
10	MO112154320/0 Out of stock	Nut	£1.48 £1.23
12	MO118800745/0 Out of stock	Front Guard Spring	£1.34 £1.12
13	MO118800257/0 Out of stock	Bar Plate	£3.22 £2.68
14	MO123753001/0 Out of stock	Pin	£1.27 £1.06
15	MO383315051/0 Out of stock	Chain Brake Lever	£2.42 £2.02
17	MO123753000/0 Out of stock	Needle	£1.48 £1.23
18	MO323315067/0 Out of stock	Lever	£4.20 £3.50
20	MO118800185/0 Out of stock	Brake Band	£4.96 £4.13
21	MO123878023/0 Out of stock	Screw	£1.61 £1.34
24	MO118800186/0 Out of stock	Nut	£1.48 £1.23
25	MO118800767/0 Out of stock	Filter Cover. Black Black	£6.70 £5.58
26	MO118800756/0 Out of stock	Knob	£1.87 £1.56
27	MO118800188/0 Out of stock	Air Filter	£5.63 £4.69
30	MO118800740/0 Out of stock	Pin	£1.34 £1.12
31	MO118800768/0 Out of stock	Knob	£1.87 £1.56
32	MO118800749/0 Out of stock	Cap	£1.27 £1.06
34	MO118800189/0 Out of stock	Screw	£1.61 £1.34
35	MO118800742/0 Out of stock	Grommet	£1.48 £1.23
36	MO118800264/0 Out of stock	Grommet Air-Lever	£1.27 £1.06
37	MO118800755/0 Out of stock	Choke Knob	£1.87 £1.56
38	MO118800758/0 Out of stock	Air Conveyor	£3.48 £2.90
39	MO118801735/0 Out of stock	Starter Assy .Red	£36.16 £30.13
42	MO118800754/0 Out of stock	Starter Cup	£2.54 £2.12
43	MO118800753/0 Out of stock	Spring	£5.22 £4.35
44	MO118801178/0 Out of stock	Wire	£1.48 £1.23
45	MO118800760/1 Out of stock	Starter Pulley Assy	£15.67 £13.06
47	MO118800741/0 Out of stock	Starter Spring	£4.28 £3.57
48	MO118800759/0 Out of stock	Starter Handle	£2.68 £2.23
50	MO123878024/0 Out of stock	Screw	£1.34 £1.12
51	MO123878025/0 Out of stock	Screw	£1.27 £1.06
52	MO118800743/0 Out of stock	Dust Cover	£1.34 £1.12
53	MO118800266/0 Out of stock	Shock Absorber	£1.34 £1.12
55	MO118800194/0 Out of stock	Shock Absorber	£2.68 £2.23
56	MO118800195/0 Out of stock	Cap	£1.48 £1.23
57	MO118800196/0 Out of stock	Spring	£2.00 £1.67
58	MO118800197/0 Out of stock	Handle	£16.48 £13.73
60	MO118800198/0 Out of stock	Breather Valve Ass.Y	£5.89 £4.91
64	MO118800744/0 Out of stock	Grommet	£1.61 £1.34
65	MO112728124/0 Out of stock	Screw	£1.48 £1.23
66	MO118800255/0 Out of stock	Pickup Oil	£1.61 £1.34
67	MO118800214/0 Out of stock	Fuel Filter	£8.70 £7.25
68	MO118801067/0 Out of stock	Screw	£1.61 £1.34
69	MO118801065/0 Out of stock	Chain Tightener Block	£1.27 £1.06
70	MO118801066/0 Out of stock	Pinion	£4.96 £4.13
72	MO118800199/0 Out of stock	Fuel Filter	£2.68 £2.23
74	MO118800201/0 Out of stock	Spring	£1.61 £1.34
75	MO118800761/0 Out of stock	Fuel Cap Assy	£3.61 £3.01
79	MO118800762/0 Out of stock	Oil Tank Cap	£3.89 £3.24
82	MO123510098/0 Out of stock	Elastic Pin	£1.61 £1.34
83	MO118800205/0 Out of stock	Safety Lever	£1.34 £1.12
84	MO118800206/0 Out of stock	Spring	£1.27 £1.06
85	MO118800207/0 Out of stock	Throttle Lever	£1.27 £1.06
86	MO118800750/0 Out of stock	Spring	£4.02 £3.35
89	MO118800213/0 Out of stock	Stop Wire	£1.27 £1.06
90	MO118800202/0 Out of stock	Switch	£1.74 £1.45
96	MO118800752/0 Out of stock	Crankcase	£17.30 £14.42
98	4253 In stock	Chain 16Inch	£10.94 £9.12
99	MO123900302/0 Out of stock	Guide Bar 16Inch	£143.70 £119.75
