Description

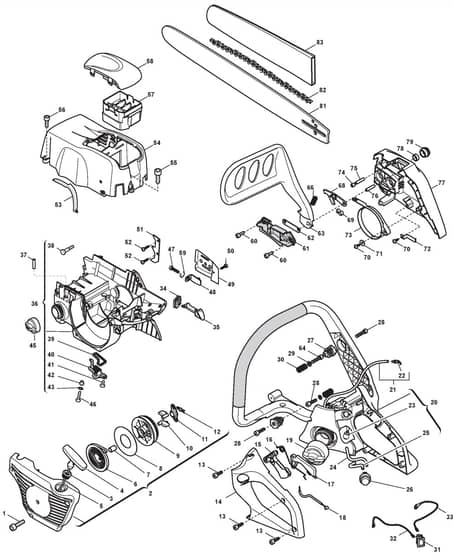

Mountfield MC 4718 Parts Diagram

Model Year - 2010

Model Type - P 480

Art.N - 224118003/MO8

Ref. Img. Part No. Details
  4 Starter Handle
Starter Handle
MO118800193/0 Out of stock
Starter Handle
£2.15 £1.79

  5 Starter Cord
Starter Cord
MO3784030 Out of stock
Starter Cord
£2.04 £1.70

  6 Starter Spring
Starter Spring
MO4611480 Out of stock
Starter Spring
£8.15 £6.79

  7 Bushing
Bushing
MO3623590 Out of stock
Bushing
£1.40 £1.17

  8 Disc For Starter Spring
Disc For Starter Spring
MO3723640 Out of stock
Disc For Starter Spring
£3.95 £3.29

  9 Starter Pulley
Starter Pulley
MO3750130 Out of stock
Starter Pulley
£4.20 £3.50

  11 Starter Hook Guide
Starter Hook Guide
MO3750140 Out of stock
Starter Hook Guide
£3.18 £2.65

  15 Throttle Lever For Cable
Throttle Lever For Cable
MO3743587 Out of stock
Throttle Lever For Cable
£3.31 £2.76

  16 Molla Leva Accel. E Sicurezza 360-41
Molla Leva Accel. E Sicurezza 360-41
MO1L3654440/1 Out of stock
Molla Leva Accel. E Sicurezza 360-41
£2.29 £1.91

  17 Safety Lever
Safety Lever
MO3743597 Out of stock
Safety Lever
£1.66 £1.38

  18 Throttle Cable
Throttle Cable
MO123066002/0 Out of stock
Throttle Cable
£7.30 £6.08

  19 Fuel Tank-Cap Ass.Y
Fuel Tank-Cap Ass.Y
MO383790000/0 Out of stock
Fuel Tank-Cap Ass.Y
£8.28 £6.90

  22 Breather Valve Assy
Breather Valve Assy
MO4253680 Out of stock
Breather Valve Assy
£3.95 £3.29

  23 Intake
Intake
MO3L8783140/2 Out of stock
Intake
£16.68 £13.90

  26 Primer Pump
Primer Pump
MO123018000/0 Out of stock
Primer Pump
£9.24 £7.70

  27 Welch Plug
Welch Plug
MO323790003/0 Out of stock
Welch Plug
£1.66 £1.38

  30 Spring
Spring
MO123430555/0 Out of stock
Spring
£2.94 £2.45

  31 Stop Switch
Stop Switch
MO118800202/0 Out of stock
Stop Switch
£1.74 £1.45

  35 Air Lever
Air Lever
MO323315059/0 Out of stock
Air Lever
£3.18 £2.65

  37 Oil Tube Assy
Oil Tube Assy
MO3L4353090/1 Out of stock
Oil Tube Assy
£3.70 £3.08

  40 Oil Filter Assy
Oil Filter Assy
MO323520000/0 Out of stock
Oil Filter Assy
£54.74 £45.62

  43 Flat Washer
Flat Washer
MO2312090 Out of stock
Flat Washer
£1.40 £1.17

  45 Tank Cap
Tank Cap
MO383790001/0 Out of stock
Tank Cap
£14.26 £11.88

  49 Bar Plate
Bar Plate
MO323311001/0 Out of stock
Bar Plate
£5.99 £4.99

  51 Spike
Spike
MO323026000/0 Out of stock
Spike
£6.74 £5.62

  56 Screw
Screw
MO2123030 Out of stock
Screw
£1.40 £1.17

  59 Circlip
Circlip
MO3351050 Out of stock
Circlip
£1.40 £1.17

  60 Screw
Screw
MO2123100 Out of stock
Screw
£1.40 £1.17

  62 Brake Plate
Brake Plate
MO3614490 Out of stock
Brake Plate
£2.29 £1.91

  64 Screw
Screw
MO2135040 Out of stock
Screw
£1.40 £1.17

  68 Chain Brake Lever
Chain Brake Lever
MO4252310 Out of stock
Chain Brake Lever
£15.66 £13.05

  70 Screw
Screw
MO2123060 Out of stock
Screw
£1.40 £1.17

  71 Washer
Washer
MO2312100 Out of stock
Washer
£1.40 £1.17

  73 Brake Band
Brake Band
MO323448000/0 Out of stock
Brake Band
£10.69 £8.91

  78 Bushing
Bushing
MO3643000 Out of stock
Bushing
£2.29 £1.91

  79 Nut
Nut
MO2670270 Out of stock
Nut
£2.68 £2.23

  81 Guide Bar 18Inch
Guide Bar 18Inch
MO123900101/0 Out of stock
Guide Bar 18Inch
£58.38 £48.65

  82 Chain 18Inch
Chain 18Inch
5052 In stock
Chain 18Inch
£11.70 £9.75


Description

Mountfield MC 4718 Parts Diagram

Model Year - 2010

Model Type - P 480

Art.N - 224118003/MO8
