Description

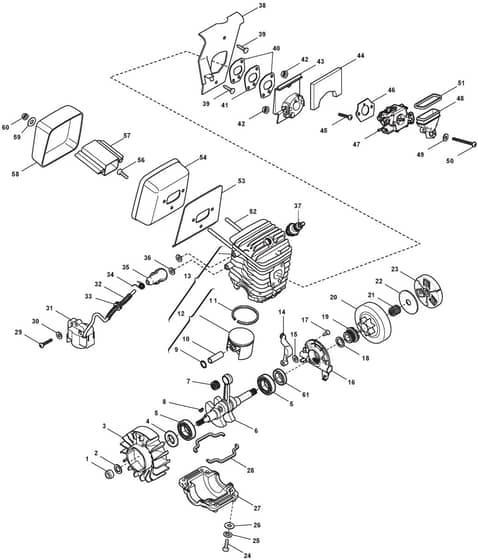

Mountfield MC 4716 Parts Diagram

Model Year - 2010

Model Type - P 480

Art.N - 224116003/MO8

Ref. Img. Part No. Details
  3 Flywheel
Flywheel
MO3L4541210/1 Out of stock
Flywheel
£52.20 £43.50

  4 Or Ring
Or Ring
MO119035151/0 Out of stock
Or Ring
£5.09 £4.24

  5 Ball Bearing
Ball Bearing
MO3112040 Out of stock
Ball Bearing
£13.75 £11.46

  7 Needle Bearing
Needle Bearing
MO3114190 Out of stock
Needle Bearing
£7.26 £6.05

  8 Flywheel Key
Flywheel Key
MO3151010 Out of stock
Flywheel Key
£1.40 £1.17

  9 Circlip
Circlip
MO3356020 Out of stock
Circlip
£6.53 £5.44

  10 Piston Pin
Piston Pin
MO3158010 Out of stock
Piston Pin
£3.95 £3.29

  11 Piston Ring Ø 44
Piston Ring Ø 44
MO123204000/0 Out of stock
Piston Ring Ø 44
£5.22 £4.35

  12 Piston Assy
Piston Assy
MO383590001/0 Out of stock
Piston Assy
£77.65 £64.71

  13 Cil.-Piston Assy
Cil.-Piston Assy
MO383070001/0 Out of stock
Cil.-Piston Assy
£241.88 £201.57

  14 Grommet
Grommet
MO323275001/0 Out of stock
Grommet
£4.45 £3.71

  16 Oil Pump
Oil Pump
MO383594500/0 Out of stock
Oil Pump
£26.74 £22.28

  18 Washer
Washer
MO123657000/0 Out of stock
Washer
£1.74 £1.45

  19 Screw
Screw
MO323878000/0 Out of stock
Screw
£29.28 £24.40

  20 Drum Ass'Y. Clutch
Drum Ass'Y. Clutch
MO383050001/0 Out of stock
Drum Ass'Y. Clutch
£38.20 £31.83

  25 Washer
Washer
MO2330020 Out of stock
Washer
£1.40 £1.17

  29 Screw
Screw
MO2132550 Out of stock
Screw
£1.40 £1.17

  31 Electronic Coil
Electronic Coil
MO123044000/0 Out of stock
Electronic Coil
£69.24 £57.70

  32 Wire Sheath
Wire Sheath
MO3782470 Out of stock
Wire Sheath
£9.80 £8.17

  33 Grommet
Grommet
MO3745130 Out of stock
Grommet
£1.40 £1.17

  34 Spark Plug Spring
Spark Plug Spring
MO3657050 Out of stock
Spark Plug Spring
£3.31 £2.76

  35 Spark Plug Cap
Spark Plug Cap
MO3748880 Out of stock
Spark Plug Cap
£2.04 £1.70

  37 Spark Plug
Spark Plug
2688 In stock
Spark Plug
£2.38 £1.98

  40 Gasket
Gasket
MO123280003/0 Out of stock
Gasket
£1.20 £1.00

  45 Screw
Screw
MO2135050 Out of stock
Screw
£1.40 £1.17

  50 Screw
Screw
MO2135200 Out of stock
Screw
£1.40 £1.17

  56 Screw
Screw
MO2135180 Out of stock
Screw
£1.40 £1.17

  57 Muffler Inner Duct
Muffler Inner Duct
MO323075000/0 Out of stock
Muffler Inner Duct
£8.28 £6.90

  58 Muffler Cover
Muffler Cover
MO323109500/0 Out of stock
Muffler Cover
£6.62 £5.52

  59 Flat Washer
Flat Washer
MO2312090 Out of stock
Flat Washer
£1.40 £1.17

  60 Nut
Nut
MO2432040 Out of stock
Nut
£1.40 £1.17

  61 Bearing
Bearing
MO119035153/0 Out of stock
Bearing
£29.46 £24.55
