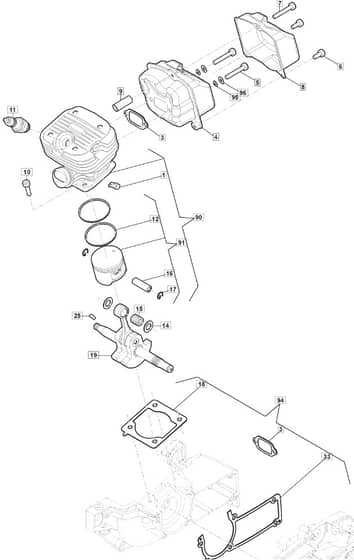

MC 3814 - 2017-2022 - 240381403/M17 - Mountfield Chainsaw Cylinder Diagram

MC 3814 - 2017-2022 - 240381403/M17 - Mountfield Chainsaw Cylinder Diagram
MC 3814 - 2017-2022 - 240381403/M17 - Mountfield Chainsaw Cylinder Diagram

Description

Mountfield MC 3814 Parts Diagram

Model Year - 2017-2022

Model Type - SP 386

Art.N - 240381403/M17

Ref. Img. Part No. Details
  1 Nozzle
Nozzle
MO118804382/0 Out of stock
Nozzle
£2.00 £1.67

  4 Muffler (RHS) From 01-9-2017
Muffler (RHS) From 01-9-2017
MO118804649/0 Out of stock
Muffler (RHS) From 01-9-2017
£60.25 £50.21

  4 Muffler To 31-8-2017
Muffler To 31-8-2017
MO118804380/0 Out of stock
Muffler To 31-8-2017
£43.28 £36.07

  5 Screw From 01-9-2017
Screw From 01-9-2017
MO112789008/0 In stock
Screw From 01-9-2017
£1.74 £1.45

  5 Screw To 31-8-2017
Screw To 31-8-2017
MO118804379/0 Out of stock
Screw To 31-8-2017
£2.54 £2.12

  6 Screw
Screw
MO2135180 Out of stock
Screw
£1.40 £1.17

  7 Screw
Screw
MO2135120 Out of stock
Screw
£1.40 £1.17

  8 Muffler Cover To 31-8-2017
Muffler Cover To 31-8-2017
MO118804652/0 Out of stock
Muffler Cover To 31-8-2017
£57.31 £47.76

  8 Muffler Cover From 01-9-2017
Muffler Cover From 01-9-2017
MO118804651/0 Out of stock
Muffler Cover From 01-9-2017
£8.30 £6.92

  9 Spacer
Spacer
MO118804904/0 Out of stock
Spacer
£4.82 £4.02

  10 Screw
Screw
MO2132550 Out of stock
Screw
£1.40 £1.17

  11 Spark Plug
Spark Plug
2688 In stock
Spark Plug
£2.38 £1.98

  12 Piston Ring
Piston Ring
MO118804376/0 Out of stock
Piston Ring
£3.35 £2.79

  14 Needle Bearing Gasket
Needle Bearing Gasket
MO118804375/0 Out of stock
Needle Bearing Gasket
£1.74 £1.45

  15 Needle Bearing
Needle Bearing
MO118804374/0 Out of stock
Needle Bearing
£8.98 £7.48

  16 Piston Pin
Piston Pin
MO118804373/0 Out of stock
Piston Pin
£1.61 £1.34

  17 Circlip
Circlip
MO118804372/0 Out of stock
Circlip
£1.20 £1.00

  19 Crankshaft To 31-8-2017
Crankshaft To 31-8-2017
MO118804371/0 Out of stock
Crankshaft To 31-8-2017
£52.22 £43.52

  19 Crankshaft From 01-9-2017
Crankshaft From 01-9-2017
MO118804371/1 Out of stock
Crankshaft From 01-9-2017
£58.92 £49.10

  25 Key
Key
MO118800959/0 Out of stock
Key
£1.48 £1.23

  33 Crankcase Gasket
Crankcase Gasket
MO118804617/0 Out of stock
Crankcase Gasket
£2.04 £1.70

  90 Cylinder - Piston Assy
Cylinder - Piston Assy
MO118804343/0 Out of stock
Cylinder - Piston Assy
£87.04 £72.53

  91 Piston Assy
Piston Assy
MO118804342/0 Out of stock
Piston Assy
£17.00 £14.17

  94 Gaskets Assy
Gaskets Assy
MO118804340/0 Out of stock
Gaskets Assy
£7.09 £5.91

  95 Grower From 01-9-2017
Grower From 01-9-2017
MO112581500/0 Out of stock
Grower From 01-9-2017
£1.48 £1.23

  96 Washer M5 5.3 X 10 X 1
Washer M5 5.3 X 10 X 1
MO112521320/0 Out of stock
Washer M5 5.3 X 10 X 1
£1.48 £1.23


Description

Mountfield MC 3814 Parts Diagram

Model Year - 2017-2022

Model Type - SP 386

Art.N - 240381403/M17
