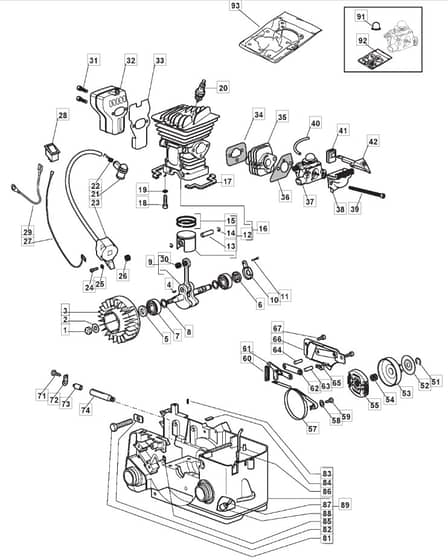

MC 3814 - 2011 - 223514003/MO8 - Mountfield Chainsaw Engine Diagram

Description

Mountfield MC 3814 Parts Diagram

Model Year - 2011

Model Type - P 382 S

Art.N - 223514003/MO8

Be the first to review this product

0 product questions

	Part No.	Details
3	MO3L4541210/1 Out of stock	Flywheel	£52.20 £43.50
4	MO3151010 Out of stock	Flywheel Key	£1.40 £1.17
5	MO3121071 Out of stock	Seal Ring 5a	£4.58 £3.82
7	MO3112030 Out of stock	Ball Bearing	£14.14 £11.78
9	MO383020003/0 Out of stock	Crankshaft	£75.11 £62.59
12	MO383590005/0 Out of stock	Piston Assy Ø 39	£24.19 £20.16
13	MO3158260 Out of stock	Piston Pin	£5.60 £4.67
14	MO3356050 Out of stock	Circlip Ring	£1.40 £1.17
15	MO123204003/0 Out of stock	Piston Ring Ø 39	£4.42 £3.68
16	MO383070005/0 Out of stock	Cylinder - Piston Ass'Y	£159.13 £132.61
17	MO3721560 Out of stock	Cylinder Gasket	£2.04 £1.70
19	MO2330020 Out of stock	Washer	£1.40 £1.17
20	2688 In stock	Spark Plug	£2.38 £1.98
21	MO3748880 Out of stock	Spark Plug Cap	£2.04 £1.70
22	MO3657050 Out of stock	Spark Plug Spring	£3.31 £2.76
23	MO3L3211350/1 Out of stock	Electronic Coil	£99.30 £82.75
26	MO3654480 Out of stock	Spring	£1.40 £1.17
28	MO118800202/0 Out of stock	Stop Switch	£1.74 £1.45
30	MO3116100 Out of stock	Needle Bearing	£7.13 £5.94

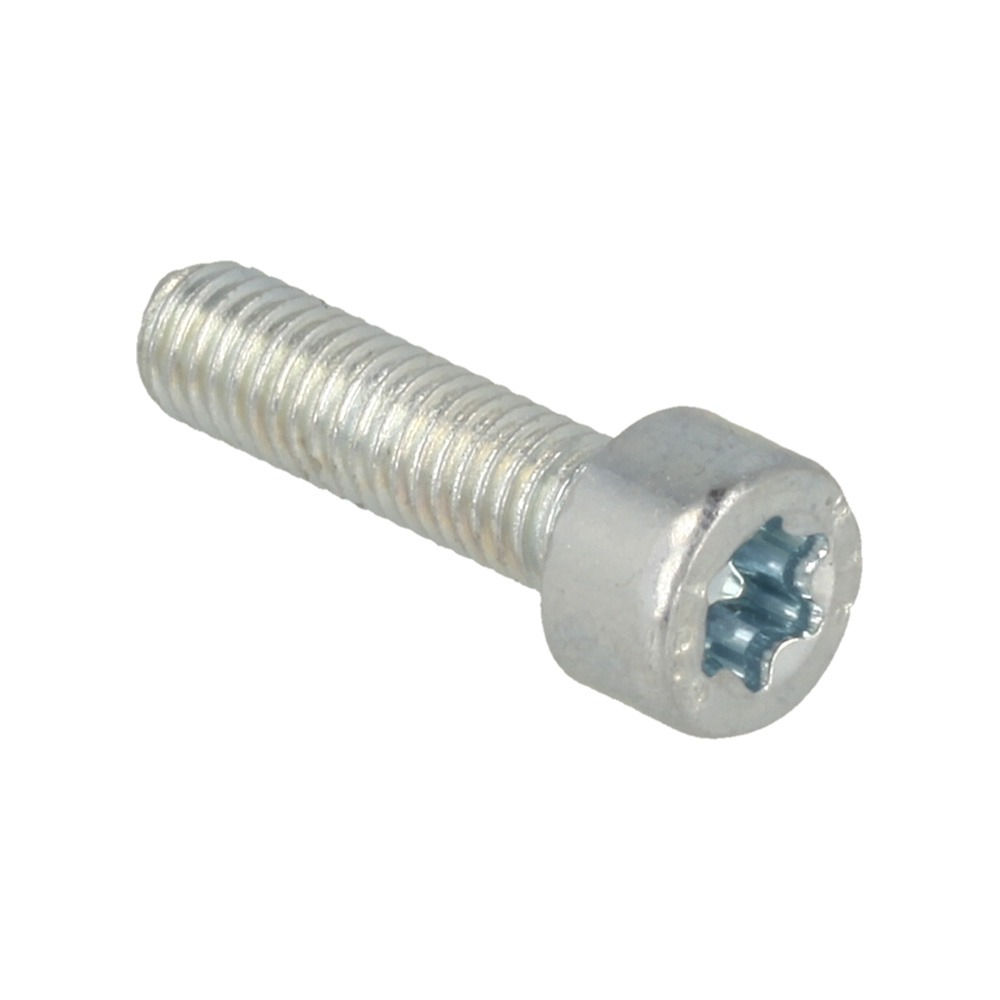

31	MO2135040 Out of stock	Screw	£1.40 £1.17
32	MO183740004/0 Out of stock	Muffler Assy	£47.10 £39.25
34	MO1L3724300/1 Out of stock	Intake Manifold Gasket	£13.68 £11.40
35	MO3750180 Out of stock	Intake Manifold	£12.48 £10.40
36	MO1L3724160/1 Out of stock	Carburettor Gasket	£1.66 £1.38
37	MO123054003/2 Out of stock	Carburetor	£147.30 £122.75
38	MO8744781 Out of stock	Intake Manifold Assy	£35.65 £29.71
51	MO112000955/0 Out of stock	Benzing Ring	£1.27 £1.06
53	MO4121208 Out of stock	Clutch Drum	£16.16 £13.47
54	MO3114190 Out of stock	Needle Bearing	£7.26 £6.05
57	MO3614740 Out of stock	Brake Band	£7.13 £5.94
58	MO2312150 Out of stock	Washer	£1.40 £1.17
59	MO2123060 Out of stock	Screw	£1.40 £1.17
61	MO4252310 Out of stock	Chain Brake Lever	£15.66 £13.05
62	MO3614490 Out of stock	Brake Plate	£2.29 £1.91
66	MO3750117 Out of stock	Brake Cover	£12.10 £10.08
67	MO2123100 Out of stock	Screw	£1.40 £1.17
72	MO3614810 Out of stock	Retainer	£3.31 £2.76
74	MO4252220 Out of stock	Oil Pump Assy	£33.10 £27.58
81	MO123878001/0 Out of stock	Screw	£3.89 £3.24
86	MO4253680 Out of stock	Breather Valve Assy	£3.95 £3.29
88	MO4253290 Out of stock	Intake Filter	£11.58 £9.65
91	MO3744870 Out of stock	Primer Carburettor	£12.60 £10.50
92	MO8724091 Out of stock	Diaphragm Gasket Set	£17.32 £14.43
