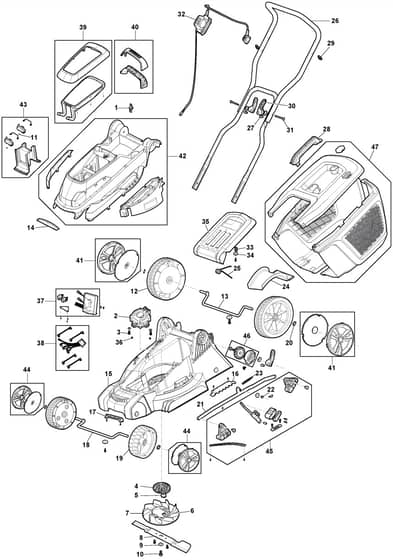

MC 380 Li - 2020-2021 - 293385064/MC - Mountfield Rotary Mower Main Assembly Diagram

MC 380 Li - 2020-2021 - 293385064/MC - Mountfield Rotary Mower Main Assembly Diagram
MC 380 Li - 2020-2021 - 293385064/MC - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield MC 380 Li Parts Diagram

Model Year - 2020-2021

Model Type - E 380 Li 40 P

Art.N - 293385064/MC

Ref. Img. Part No. Details

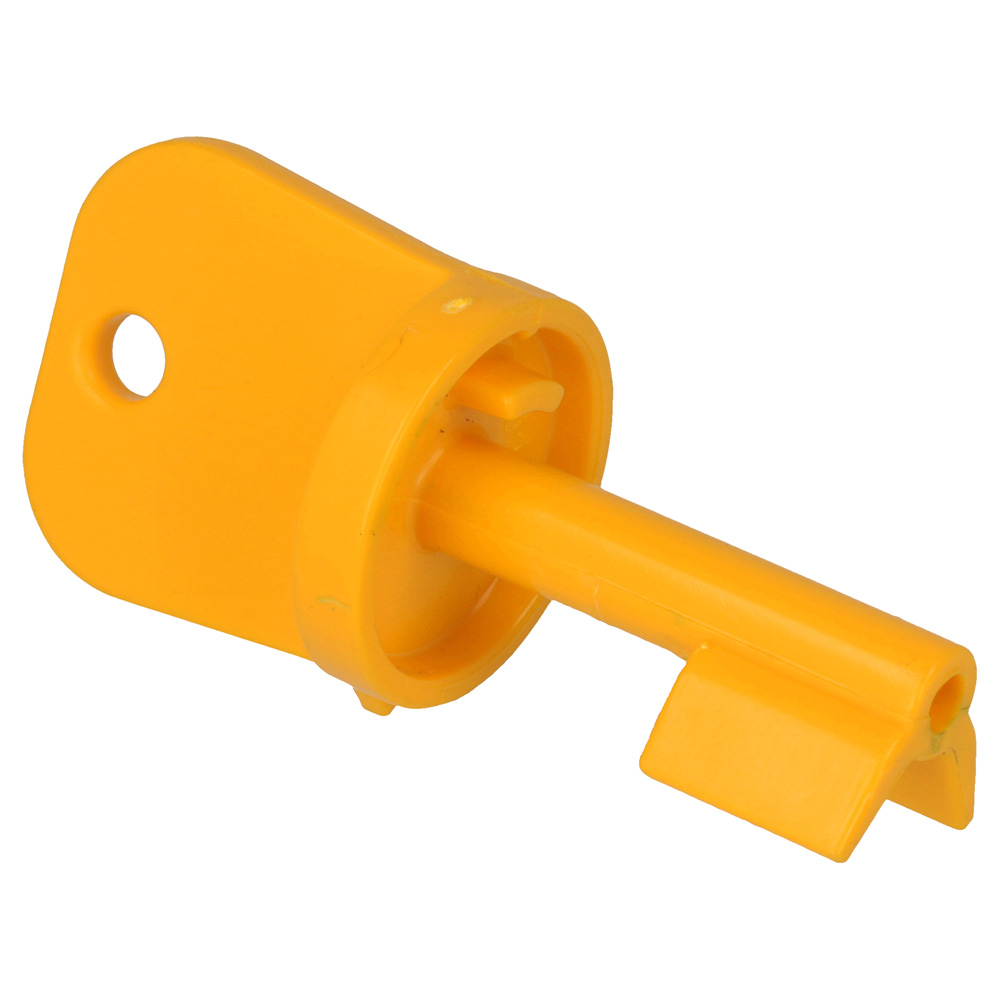

  1 Safety Key
Safety Key
MO118811001/0 Out of stock
Safety Key
£5.02 £4.18

  2 Electric Motor
Electric Motor
MO118811002/0 Out of stock
Electric Motor
£121.21 £101.01

  3 Screw
Screw
MO9959-0620-16 Out of stock
Screw
£1.90 £1.58

  4 Blade Support
Blade Support
MO118810989/0 Out of stock
Blade Support
£5.63 £4.69

  5 Spacer
Spacer
MO118811003/0 Out of stock
Spacer
£2.87 £2.39

  6 Blade Hub Cover
Blade Hub Cover
MO118810999/0 Out of stock
Blade Hub Cover
£1.49 £1.24

  7 Motor Fan
Motor Fan
MO118811004/0 Out of stock
Motor Fan
£5.69 £4.74

  8 Blade
Blade
MO181004470/0 Out of stock
Blade
£17.68 £14.73

  10 Screw
Screw
MO112793301/0 Out of stock
Screw
£1.49 £1.24

  11 Flat Washer
Flat Washer
MO2312010 Out of stock
Flat Washer
£1.36 £1.13

  12 Wheel
Wheel
MO118802212/0 Out of stock
Wheel
£20.86 £17.38

  13 Rear Wheels Axle
Rear Wheels Axle
MO118811005/0 Out of stock
Rear Wheels Axle
£8.87 £7.39

  14 Air Filter
Air Filter
MO118811006/0 Out of stock
Air Filter
£1.36 £1.13

  15 Chassis
Chassis
MO118811007/0 Out of stock
Chassis
£59.05 £49.21

  16 Flange
Flange
MO118811008/0 Out of stock
Flange
£3.65 £3.04

  17 Front Handle
Front Handle
MO118810987/0 Out of stock
Front Handle
£2.44 £2.03

  18 Front Wheels Axle
Front Wheels Axle
MO118811009/0 Out of stock
Front Wheels Axle
£5.54 £4.62

  19 Front Wheel
Front Wheel
MO118811010/0 Out of stock
Front Wheel
£11.24 £9.37

  20 Washer
Washer
MO112604903/0 In stock
Washer
£1.49 £1.24

  21 Height Adjustment Rod
Height Adjustment Rod
MO118811011/0 Out of stock
Height Adjustment Rod
£9.28 £7.73

  22 Spring
Spring
MO118811012/0 Out of stock
Spring
£1.36 £1.13

  23 Spring
Spring
MO118811013/0 Out of stock
Spring
£2.84 £2.37

  24 Conveyor
Conveyor
MO118811014/0 Out of stock
Conveyor
£5.42 £4.52

  25 Spring
Spring
MO118811015/0 Out of stock
Spring
£2.17 £1.81

  26 Handle Kit
Handle Kit
MO118811022/0 Out of stock
Handle Kit
£33.86 £28.22

  27 Pin
Pin
MO118811000/0 Out of stock
Pin
£2.98 £2.48

  28 Grasscatcher Handle
Grasscatcher Handle
MO118810996/0 Out of stock
Grasscatcher Handle
£4.07 £3.39

  29 Hook
Hook
MO118802664/0 Out of stock
Hook
£1.28 £1.07

  30 Yellow Knob
Yellow Knob
MO118810994/0 Out of stock
Yellow Knob
£5.82 £4.85

  31 Cup Square Bolt
Cup Square Bolt
MO112815255/0 Out of stock
Cup Square Bolt
£1.36 £1.13

  32 Dead Hand Switch Assy
Dead Hand Switch Assy
MO118811016/0 Out of stock
Dead Hand Switch Assy
£40.63 £33.86

  33 Spring
Spring
MO118811017/0 Out of stock
Spring
£1.36 £1.13

  34 Washer
Washer
MO122671651/0 In stock
Washer
£1.90 £1.58

  35 Grey Stone Guard
Grey Stone Guard
MO118811018/0 Out of stock
Grey Stone Guard
£9.28 £7.73

  36 Nut
Nut
MO112154510/0 In stock
Nut
£1.49 £1.24

  37 Pcb And Switch Kit
Pcb And Switch Kit
MO118811052/0 Out of stock
Pcb And Switch Kit
£121.90 £101.58

  38 Cable Assy
Cable Assy
MO118811062/0 Out of stock
Cable Assy
£23.84 £19.87

  39 Battery Cover Kit
Battery Cover Kit
MO118811063/0 Out of stock
Battery Cover Kit
£14.63 £12.19

  40 Handle
Handle
MO118811059/0 Out of stock
Handle
£7.03 £5.86

  41 Rear Hub Cups Kit (Rh+Lh)
Rear Hub Cups Kit (Rh+Lh)
MO118811044/0 Out of stock
Rear Hub Cups Kit (Rh+Lh)
£9.68 £8.07

  42 Aesthetic Covers Kit Red and Black
Aesthetic Covers Kit Red and Black
MO118811064/0 Out of stock
Aesthetic Covers Kit Red and Black
£41.99 £34.99

  43 Battery Housing Kit
Battery Housing Kit
MO118811065/0 Out of stock
Battery Housing Kit
£22.07 £18.39

  44 Front Hub Cups Kit (Rh+Lh)
Front Hub Cups Kit (Rh+Lh)
MO118811045/0 Out of stock
Front Hub Cups Kit (Rh+Lh)
£9.61 £8.01

  45 Height Adjust Kit
Height Adjust Kit
MO118811046/0 Out of stock
Height Adjust Kit
£29.53 £24.61

  46 Joint Kit (Rh+Lh)
Joint Kit (Rh+Lh)
MO118811047/0 Out of stock
Joint Kit (Rh+Lh)
£12.46 £10.38

  47 Upper.Lower Grasscatcher Kit
Upper.Lower Grasscatcher Kit
MO118811054/0 Out of stock
Upper.Lower Grasscatcher Kit
£65.02 £54.18


Description

Mountfield MC 380 Li Parts Diagram

Model Year - 2020-2021

Model Type - E 380 Li 40 P

Art.N - 293385064/MC
