MC 3616 - 2012 - 228116003/M11 - Mountfield Chainsaw Engine Diagram

Name: MC 3616 - 2012 - 228116003/M11 - Mountfield Chainsaw Engine Diagram
SKU: mc_3616_228116003_m11_engine-group
Price: 1.06 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MC 3616 - 2012 - 228116003/M11 - Mountfield Chainsaw Engine Diagram

Description

Mountfield MC 3616 Parts Diagram

Model Year - 2012

Model Type - A 3700

Art.N - 228116003/M11

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118805099/0 Out of stock	Cylinder Assy	£52.22 £43.52
2	MO2432040 Out of stock	Nut	£1.40 £1.17
3	MO112581500/0 Out of stock	Grower	£1.48 £1.23
4	MO2312090 Out of stock	Flat Washer	£1.40 £1.17
6	MO118800243/0 Out of stock	Cover Plate	£2.68 £2.23
7	MO118805103/0 Out of stock	Muffler	£40.18 £33.48
8	MO118550583/0 Out of stock	Muffler Gasket	£1.27 £1.06
9	MO118550584/0 Out of stock	Screw	£3.35 £2.79
10	MO2135030 In stock	Screw	£1.40 £1.17
11	2688 In stock	Spark Plug	£2.38 £1.98
12	MO118550585/0 Out of stock	Intake Manifold Gasket	£1.27 £1.06

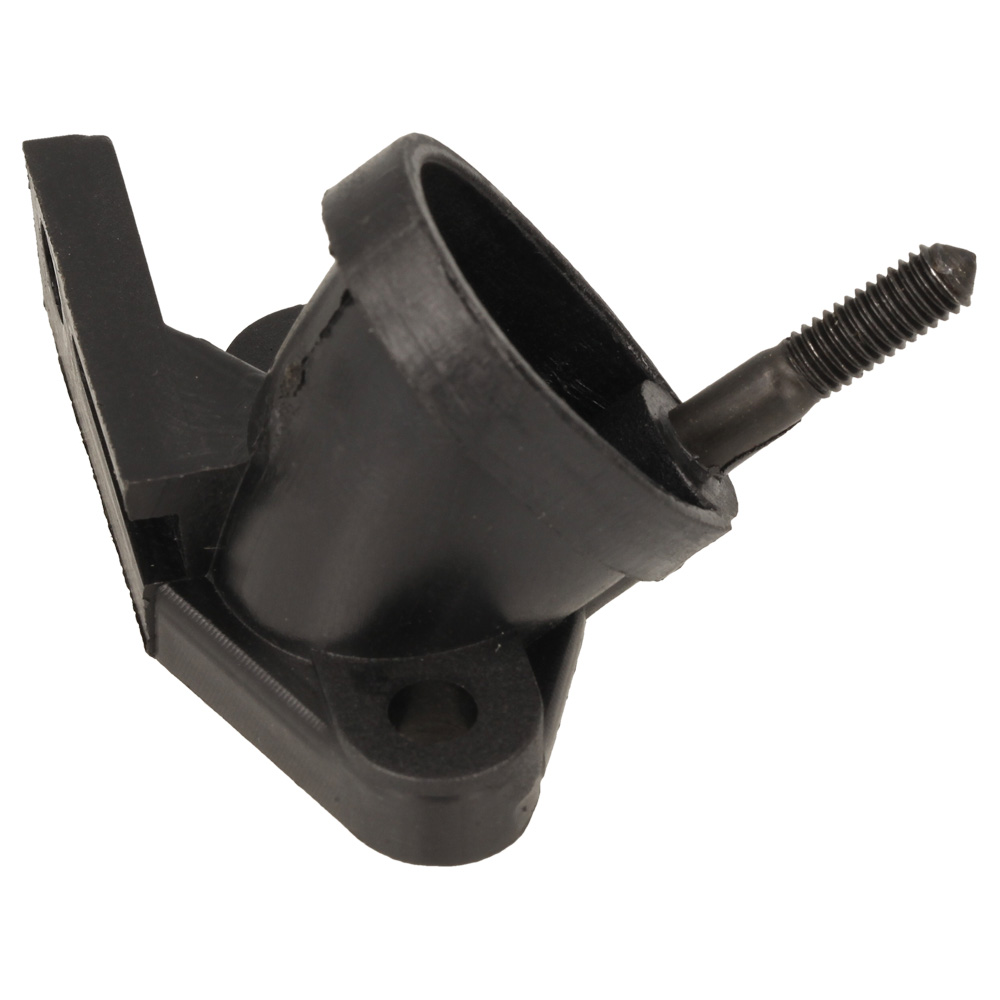

13	MO118550586/0 Out of stock	Intake Manifold	£2.00 £1.67
14	MO118550587/0 Out of stock	Carburettor Gasket	£1.27 £1.06
15	MO118550588/0 Out of stock	Cylinder Base Gasket	£1.27 £1.06
16	MO118550589/0 Out of stock	Piston Ring	£3.48 £2.90
17	MO118800244/0 Out of stock	Piston Pin	£1.34 £1.12
18	MO118550590/0 Out of stock	Washer. Piston Pin	£1.27 £1.06
19	MO118805101/0 Out of stock	Piston	£17.94 £14.95
20	MO118800246/0 Out of stock	Bearing	£2.28 £1.90
21	MO118550591/0 Out of stock	Needle Bearing	£3.61 £3.01
22	MO118800247/0 Out of stock	Crankshaft	£49.55 £41.29
24	MO118800248/0 Out of stock	Crank Case	£25.98 £21.65
25	MO3112030 Out of stock	Ball Bearing	£14.14 £11.78
26	MO118800249/0 Out of stock	Crankcase Gasket	£1.48 £1.23
27	MO118800250/0 Out of stock	Crank Case	£30.80 £25.67
29	MO118550592/0 Out of stock	Seal Ring	£2.15 £1.79
30	MO2135050 Out of stock	Screw	£1.40 £1.17
31	MO118550593/0 Out of stock	Screw	£1.34 £1.12
34	MO118550596/0 Out of stock	Spike	£2.81 £2.34
35	MO2135180 Out of stock	Screw	£1.40 £1.17
36	MO118550597/0 Out of stock	Chain Guard	£1.61 £1.34
38	MO118550598/0 Out of stock	Bar Plate	£1.87 £1.56
39	MO123878020/0 Out of stock	Screw	£1.27 £1.06
40	MO118550599/0 Out of stock	Seal Ring	£1.74 £1.45
41	MO118550600/0 Out of stock	Analog Ignition Coil Type B	£24.77 £20.64
41	MO118805575/0 Out of stock	Digital Ignition Coil Type A	£45.53 £37.94
42	MO123878021/0 Out of stock	Screw	£1.32 £1.10
43	MO2321050 Out of stock	Washer	£1.40 £1.17
44	MO118550601/0 Out of stock	Earth Cable	£1.48 £1.23
45	MO112154220/0 Out of stock	Nut	£1.48 £1.23
46	MO118804677/0 Out of stock	Flywheel Assy With Type A ignition	£33.48 £27.90
46	MO118550602/0 Out of stock	Flywheel Assy With Type B ignition	£29.46 £24.55
51	MO118550603/0 Out of stock	Clutch Ass.Y	£17.14 £14.28
55	MO118800252/0 In stock	Sprocket Washer	£1.61 £1.34
56	MO118550604/0 Out of stock	Clutch Drum Assy 6 Tooth - Pitch 3.8" mini	£17.14 £14.28
57	MO118550605/0 Out of stock	Needle Bearing	£5.63 £4.69
58	MO118550606/0 In stock	Worm 2 Tooth - Pitch 3.8" mini	£2.54 £2.12
59	MO118800253/0 Out of stock	Oil Pump Cap	£1.48 £1.23
60	MO118550607/0 In stock	Oil Pump Assy	£15.53 £12.94

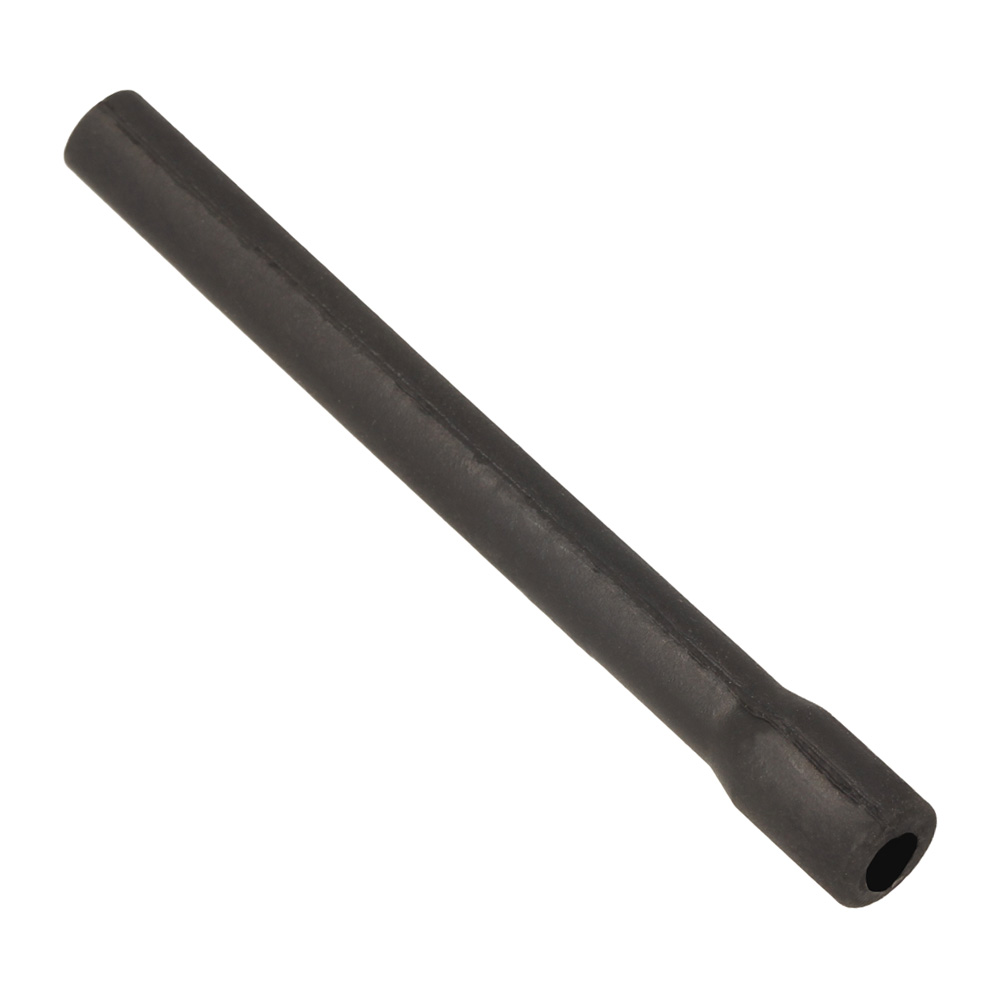

61	MO118800254/0 Out of stock	Tube	£1.74 £1.45
62	MO118550608/0 Out of stock	Washer	£1.61 £1.34

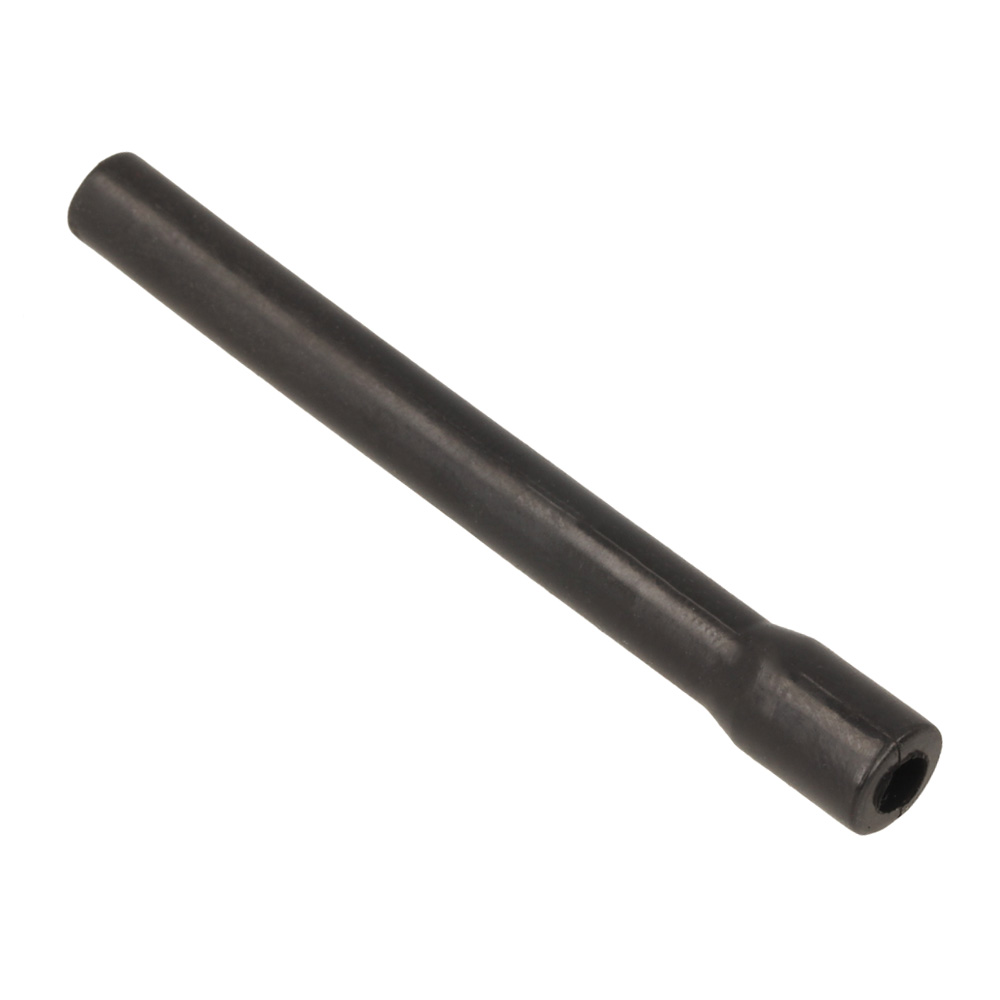

63	MO118800255/0 Out of stock	Pickup Oil	£1.61 £1.34
65	MO118800256/0 Out of stock	Connection	£1.27 £1.06
66	MO118550609/0 Out of stock	Oil Filter Ass.Y	£7.97 £6.64
67	MO118802952/0 Out of stock	Nozzle	£2.68 £2.23
70	MO8724091 Out of stock	Diaphragm Gasket Set	£17.32 £14.43
71	MO118800210/0 Out of stock	Carburetor	£111.14 £92.62
72	MO118800211/0 Out of stock	Intake Manifold	£2.68 £2.23
73	MO118800212/0 Out of stock	Screw	£1.27 £1.06
74	MO118804231/0 In stock	Primer	£7.14 £5.95
75	MO118800204/0 Out of stock	Pipe	£3.61 £3.01
76	MO3657050 Out of stock	Spark Plug Spring	£3.31 £2.76
77	MO3748880 Out of stock	Spark Plug Cap	£2.04 £1.70
