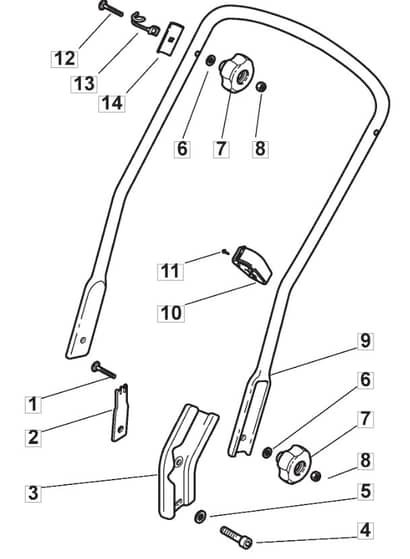

MB532 SB - 2005 - 292552023/TEL - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield MB532 SB Parts Diagram

Product Name - MB 532 SB

Model Year - 2005

Model Type - TU 554 TR

Art.N - 292552023/TEL

Be the first to review this product

0 product questions

	Part No.	Details
2	MO322551635/0 Out of stock	Handle Clamp Fix Plate	£3.97 £3.31
3	MO322778405/0 Out of stock	Support	£22.99 £19.16
4	MO112760515/0 Out of stock	Screw	£1.49 £1.24
6	MO112521350/0 In stock	Washer	£1.49 £1.24
7	MO322399810/0 Out of stock	Black Knob	£7.98 £6.65
8	MO112361005/0 Out of stock	Nut	£4.07 £3.39
9	MO381006613/0 Out of stock	Handle Lower Part Black	£36.56 £30.47
10	MO322192001/0 Out of stock	Clamp	£1.49 £1.24
11	MO112728706/0 In stock	Screw	£1.49 £1.24
12	MO112820655/0 Out of stock	Screw	£1.36 £1.13
13	MO122430311/0 Out of stock	Starting Rope Guide Spring	£6.64 £5.53
14	MO322545137/0 Out of stock	Handle. Upper Part	£1.49 £1.24
