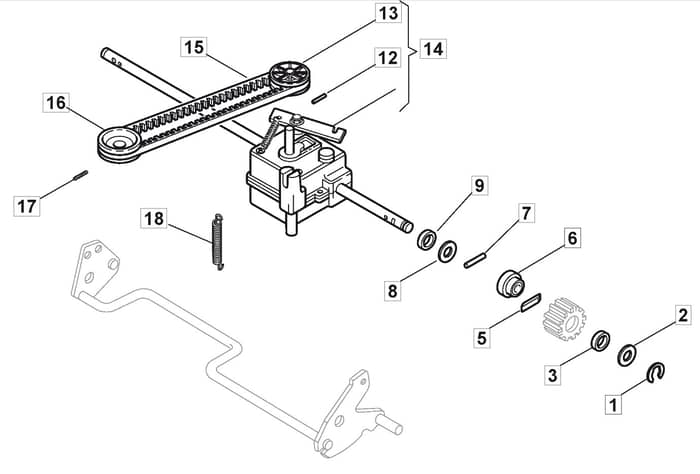

MB482 SH - 2005-2007 - 12-5604-92 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield MB482 SH Parts Diagram

Product Name - MB 482 SH

Model Year - 2005-2007

Model Type - TU 504 TR

Art.N - 12-5604-92

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112000957/0	Benzing Ring	Out of stock	£1.49 £1.24
1	MO122450063/0	Spring To 31-8-2006	Out of stock	£1.49 £1.24
3	MO322160520/0	Dust Cover Disc	Out of stock	£1.49 £1.24
5	MO122076645/0	Key	Out of stock	£1.63 £1.36
6	MO322170630/1	Spacer	Out of stock	£4.74 £3.95
7	MO122753002/0	Pin	Out of stock	£1.90 £1.58
8	MO112520032/0	Washer	Out of stock	£1.49 £1.24
9	MO119035152/0	Grommet	Out of stock	£4.60 £3.83
12	MO112620310/0	Pin	Out of stock	£1.90 £1.58
13	MO122601913/0	Pulley	Out of stock	£16.25 £13.54
14	MO181003085/0	Gear Box F.R.	Out of stock	£155.76 £129.80
15	MO135063175/0	Belt	In stock	£9.23 £7.69
16	MO122601921/0	Pulley. Crankshaft Ø 25 From 01-9-2007	Out of stock	£23.84 £19.87
17	MO112714312/0	Grub Screw	Out of stock	£1.49 £1.24
18	MO122450434/0	Spring	In stock	£6.37 £5.31
