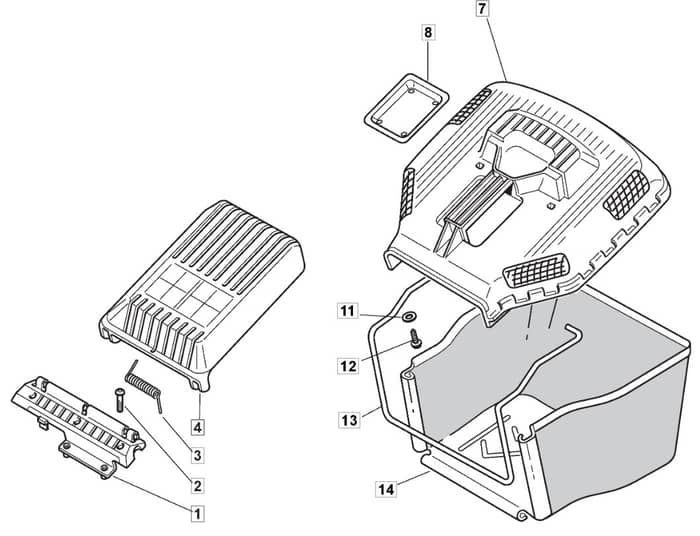

MB482 SH - 2005-2007 - 12-5604-92 - Mountfield Rotary Mower Grass Bag Diagram

Name: MB482 SH - 2005-2007 - 12-5604-92 - Mountfield Rotary Mower Grass Bag Diagram
SKU: mb482_sh_12_5604_92_grass_bag-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MB482 SH - 2005-2007 - 12-5604-92 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield MB482 SH Parts Diagram

Product Name - MB 482 SH

Model Year - 2005-2007

Model Type - TU 504 TR

Art.N - 12-5604-92

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322785157/0 Out of stock	Stone-Guard Support	£15.89 £13.24
1	MO322785179/0 Out of stock	Stone-Guard Support	£40.07 £33.39
2	MO112735664/0 In stock	Screw	£1.36 £1.13
3	MO122450430/0 Out of stock	Spring	£4.60 £3.83
4	MO322600068/2 Out of stock	Stone-Guard	£11.89 £9.91
4	MO322600069/2 Out of stock	Stone Guard	£15.42 £12.85
7	MO322486359/0 Out of stock	Grass-Box. Upper Part From 01-9-2013	£33.10 £27.58
7	MO322486095/0 Out of stock	Upper Grasscatcher To 31-8-2013	£54.18 £45.15
8	MO322486098/0 Out of stock	Plate	£5.42 £4.52
11	MO112521460/0 Out of stock	Washer	£1.36 £1.13
12	MO112728300/0 Out of stock	Screw	£1.49 £1.24
13	MO122608528/0 Out of stock	Stiffening Lower	£24.11 £20.09
14	MO181002235/0 Out of stock	Box. Fabric	£58.25 £48.54
