Masport Mulcher AL - 573998 - March 2010 - Transmission Assembly

Masport Mulcher AL - 573998 - March 2010 - Transmission Assembly
Masport Mulcher AL - 573998 - March 2010 - Transmission Assembly

Description

Masport Mulcher AL Petrol Power Drive - Transmission Assembly Parts Diagram

Part Number: 573998

Model: FWD Mulcher SPV

Engine Model: B & S Series 675

Model Range: March 2010

Serial Number: -

Ref. Img. Part No. Details
  1 Axle Assy- Front FWD Mulcher
Axle Assy- Front FWD Mulcher
MP569026 Out of stock
Axle Assy- Front FWD Mulcher
£53.54 £44.62

  2 Wheel Assy- 220mm BB MSV S
Wheel Assy- 220mm BB MSV S
MP579070 Out of stock
Wheel Assy- 220mm BB MSV S
£44.50 £37.08

  3 Gear- Driving 45 Teeth
Gear- Driving 45 Teeth
MP569180 In stock
Gear- Driving 45 Teeth
£52.96 £44.13

  4 Washer Flat 6x14x1.2
Washer Flat 6x14x1.2
MP501703 Out of stock
Washer Flat 6x14x1.2
£0.28 £0.23

  5 Screw Set M6x30
Screw Set M6x30
MP501962 Out of stock
Screw Set M6x30
£0.80 £0.67

  6 Washer Flat 8x19x1.6
Washer Flat 8x19x1.6
MP501606 Out of stock
Washer Flat 8x19x1.6
£0.40 £0.33

  7 Nut M8 Nyloc 6 Thck
Nut M8 Nyloc 6 Thck
MP503831 Out of stock
Nut M8 Nyloc 6 Thck
£0.72 £0.60

  8 Hub Cap 220mm MSV SP Slvr
Hub Cap 220mm MSV SP Slvr
MP579207 Out of stock
Hub Cap 220mm MSV SP Slvr
£4.92 £4.10

  9 Washer Flt 1.2x3.4x18G
Washer Flt 1.2x3.4x18G
MP503301 Out of stock
Washer Flt 1.2x3.4x18G
£3.36 £2.80

  10 Dust Cover LH + RH
Dust Cover LH + RH
MP579426 Out of stock
Dust Cover LH + RH
£5.62 £4.68

  11 Screw Set M6x12 Hex
Screw Set M6x12 Hex
MP501959 Out of stock
Screw Set M6x12 Hex
£0.38 £0.32

  20 Gear Box Variable Speed
Gear Box Variable Speed
MP569104 Out of stock
Gear Box Variable Speed
£147.70 £123.08

  21 Pin- Drive Non-Broach
Pin- Drive Non-Broach
MP569181 Out of stock
Pin- Drive Non-Broach
£12.26 £10.22

  22 Circlip 12 EXT DIN 471
Circlip 12 EXT DIN 471
MP503759 Out of stock
Circlip 12 EXT DIN 471
£0.44 £0.37

  23 Washer Flt 1.2x1.0x0.062
Washer Flt 1.2x1.0x0.062
MP500858 Out of stock
Washer Flt 1.2x1.0x0.062
£0.44 £0.37

  24 Bearing 12x32x10 6201 2RS
Bearing 12x32x10 6201 2RS
MP501213 Out of stock
Bearing 12x32x10 6201 2RS
£17.94 £14.95

  25 Pinion RH 12 Teeth
Pinion RH 12 Teeth
MP569179 Out of stock
Pinion RH 12 Teeth
£34.20 £28.50

  25 (25a) Pinion LH 12 Teeth
(25a) Pinion LH 12 Teeth
MP569178 Out of stock
(25a) Pinion LH 12 Teeth
£34.20 £28.50

  26 Washer Flat 12x20x0.4
Washer Flat 12x20x0.4
MP503102 Out of stock
Washer Flat 12x20x0.4
£0.72 £0.60

  27 Bush- Pivot Rear Axle
Bush- Pivot Rear Axle
MP580091 Out of stock
Bush- Pivot Rear Axle
£1.42 £1.18

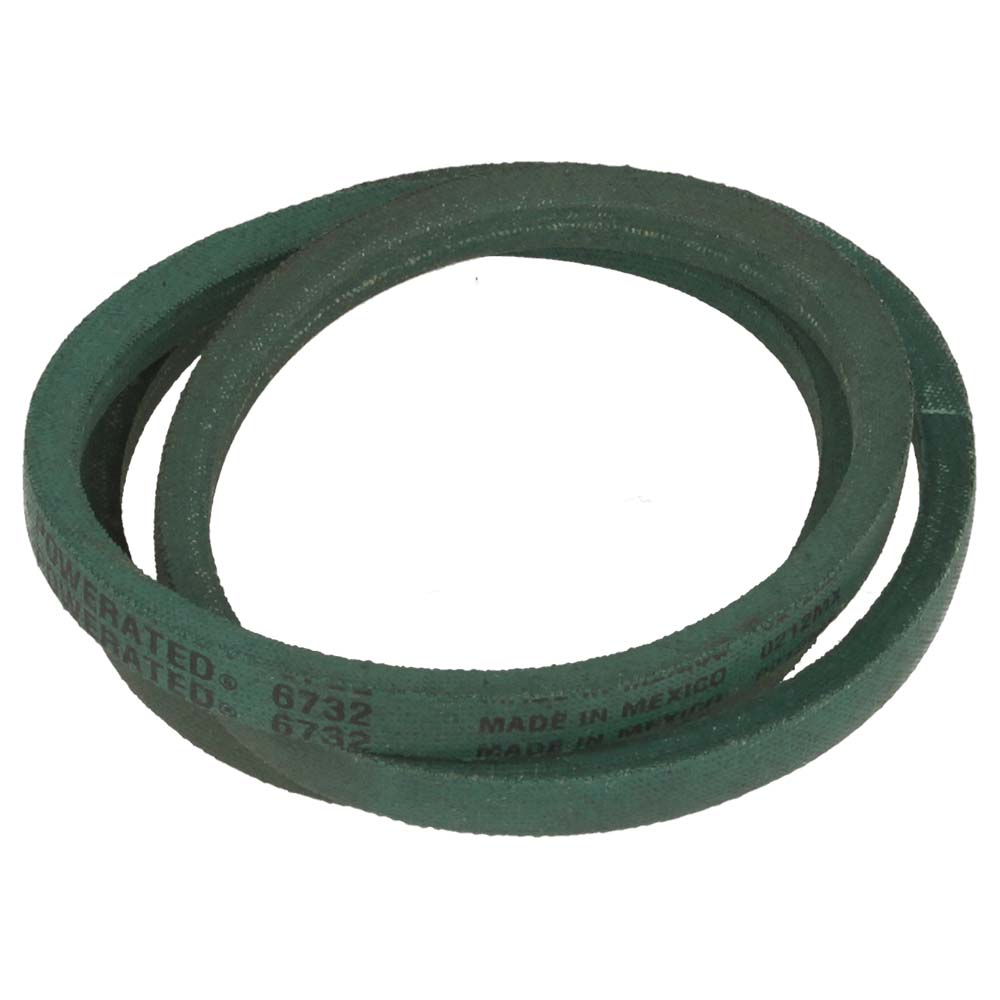

  28 Belt- V No.6732 3L-813 Gates
Belt- V No.6732 3L-813 Gates
MP238032 Out of stock
Belt- V No.6732 3L-813 Gates
£40.02 £33.35

  30 Blade- Bar 460mm Mulcher
Blade- Bar 460mm Mulcher
MP781158 Out of stock
Blade- Bar 460mm Mulcher
£46.42 £38.68

  31 Driver Assy- Blade
Driver Assy- Blade
MP569044 Out of stock
Driver Assy- Blade
£24.86 £20.72

  32 Spacer- Blade Driver 24.9x28
Spacer- Blade Driver 24.9x28
MP569046 Out of stock
Spacer- Blade Driver 24.9x28
£8.94 £7.45

  33 Key- W.Ruff 5.8x3.16x1.4
Key- W.Ruff 5.8x3.16x1.4
MP503363 Out of stock
Key- W.Ruff 5.8x3.16x1.4
£0.44 £0.37

  34 Pulley- Engine 25Bx60Dx30.5H
Pulley- Engine 25Bx60Dx30.5H
MP573887 Out of stock
Pulley- Engine 25Bx60Dx30.5H
£35.92 £29.93

  35 Screw Grub M8x8
Screw Grub M8x8
MP503386 Out of stock
Screw Grub M8x8
£0.44 £0.37

  36 Bolt Hex NF 3.8x2
Bolt Hex NF 3.8x2
MP569296 Out of stock
Bolt Hex NF 3.8x2" HT
£6.12 £5.10

  37 Washer Spg 3.8
Washer Spg 3.8
MP500204 Out of stock
Washer Spg 3.8
£0.34 £0.28

  40 Bracket Assy- Mount LH FWD
Bracket Assy- Mount LH FWD
MP769042 Out of stock
Bracket Assy- Mount LH FWD
£17.26 £14.38

  40 (40a) Bracket Assy- Mount RH FWD
(40a) Bracket Assy- Mount RH FWD
MP769043 Out of stock
(40a) Bracket Assy- Mount RH FWD
£17.26 £14.38

  41 Retainer- Axle
Retainer- Axle
MP581178 Out of stock
Retainer- Axle
£7.74 £6.45

  43 Screw Set M8x20 Hex
Screw Set M8x20 Hex
MP501597 Out of stock
Screw Set M8x20 Hex
£0.44 £0.37

  44 Nut M8 Hex Nyloc 8 Thck
Nut M8 Hex Nyloc 8 Thck
MP501793 Out of stock
Nut M8 Hex Nyloc 8 Thck
£0.62 £0.52

  47 Nut M6 Nutsert
Nut M6 Nutsert
MP501040 Out of stock
Nut M6 Nutsert
£0.72 £0.60

  50 Washer Spg 10
Washer Spg 10
MP503897 Out of stock
Washer Spg 10
£0.34 £0.28

  52 Screw Set M6x20 Hex
Screw Set M6x20 Hex
MP501600 Out of stock
Screw Set M6x20 Hex
£0.36 £0.30

  54 Nut M6 Hex Nyloc
Nut M6 Hex Nyloc
MP501764 Out of stock
Nut M6 Hex Nyloc
£0.34 £0.28

  63 Screw Set M6x16 Hex
Screw Set M6x16 Hex
MP501702 Out of stock
Screw Set M6x16 Hex
£0.44 £0.37

  67 Washer Flt 10x19x1.6
Washer Flt 10x19x1.6
MP501704 Out of stock
Washer Flt 10x19x1.6
£0.44 £0.37

  68 Bearing 12x28x8 6001 2RSH
Bearing 12x28x8 6001 2RSH
MP503901 Out of stock
Bearing 12x28x8 6001 2RSH
£20.20 £16.83

  69 Pulley- Flt Idler SPV
Pulley- Flt Idler SPV
MP573382 Out of stock
Pulley- Flt Idler SPV
£22.56 £18.80

  70 Spacer- SPV Idler
Spacer- SPV Idler
MP573381 Out of stock
Spacer- SPV Idler
£7.54 £6.28

  75 Pulley- V Idler
Pulley- V Idler
MP573791 Out of stock
Pulley- V Idler
£28.54 £23.78

  80 Guard- Bumper FWD Mulcher
Guard- Bumper FWD Mulcher
MP569039 Out of stock
Guard- Bumper FWD Mulcher
£42.70 £35.58

  83 Screw S.T #12x11.16
Screw S.T #12x11.16
MP503650 Out of stock
Screw S.T #12x11.16" UNC
£0.90 £0.75

  85 Screw Pan M6x16 Poz
Screw Pan M6x16 Poz
MP503331 Out of stock
Screw Pan M6x16 Poz
£1.24 £1.03

  86 Cover- Front FWD Mulcher
Cover- Front FWD Mulcher
MP569038 Out of stock
Cover- Front FWD Mulcher
£23.20 £19.33


Description

Masport Mulcher AL Petrol Power Drive - Transmission Assembly Parts Diagram

Part Number: 573998

Model: FWD Mulcher SPV

Engine Model: B & S Series 675

Model Range: March 2010

Serial Number: -
