Masport Home Gardener - 450907 - Jan 2013 7697693 - Main Assembly

Name: Masport Home Gardener - 450907 - Jan 2013 7697693 - Main Assembly
SKU: homegardener4509077697693main-group
Price: 0.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

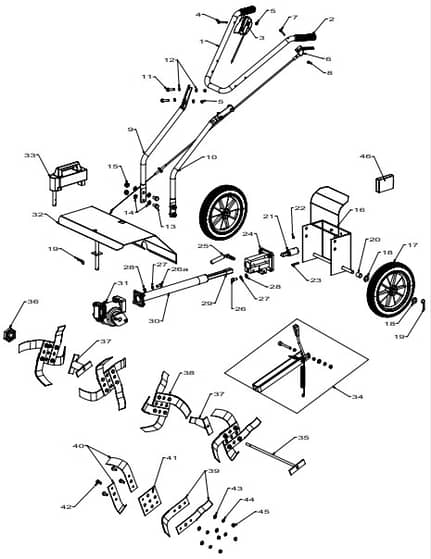

Masport Home Gardener Petrol Tiller - Main Assembly Parts Diagram

Part Number: 450907

Model: MK II

Engine Model: B&S Series 550 HRZ

Model Range: Jan 2013

Serial Number: 7697693

Be the first to review this product

0 product questions

	Part No.	Details
2	MP550368 Out of stock	Handle Grip Plastic	£5.32 £4.43
3	MP583458 In stock	Control- ThrottleAssy Wescon	£18.92 £15.77
4	MP503604 Out of stock	Screw Pan M6 x 45	£0.86 £0.72
5	MP501764 Out of stock	Nut M6 Nylocx 6 Thick	£0.34 £0.28
6	MP555796 Out of stock	Lever & Cable Assy- Safety	£71.72 £59.77
10	MP950144 Out of stock	Handle- Lower LH Silver HG	£19.54 £16.28
11	MP501815 Out of stock	Screw Set M6 x 35	£0.36 £0.30
12	MP501703 Out of stock	Washer Flat 6 x 14 x 1.2	£0.28 £0.23
13	MP501846 Out of stock	Screw Set M10 x 25	£1.40 £1.17
14	MP501704 Out of stock	Washer Flat 10 x 19 x 1.6	£0.44 £0.37
15	MP503672 Out of stock	Nut M10 Nyloc 10 Thick	£0.86 £0.72
17	MP550010 Out of stock	Wheel & Tyre Assy HG	£39.60 £33.00
19	MP530281 Out of stock	Clip- Hairpin Large HG	£6.98 £5.82
21	MP550164 Out of stock	Coupling- Engine HG	£26.94 £22.45
22	MP503386 Out of stock	Screw Grub M8 x 8	£0.44 £0.37
23	MP536012 Out of stock	Key- Engine 3.16"SQ x 38	£2.86 £2.38
25	MP550018 Out of stock	Locking Clamp- Bolt	£22.46 £18.72
26	MP501597 Out of stock	(26a) Screw Set M8 x 20	£0.44 £0.37
27	MP503747 Out of stock	Washer Spg 8	£0.28 £0.23
28	MP501744 Out of stock	Washer Flat 8 x 17 x 1.6	£0.06 £0.05
30	MP550312 Out of stock	Outer Tube Assy- Drive	£43.06 £35.88
31	MP950334 Out of stock	Gear Head Assy (Basic)	£231.44 £192.87
31	MP550333 Out of stock	Gear Head Assy & Drivers incl	£268.86 £224.05
31	MP500012 Out of stock	(31A) Key- Woodruff 3.16" x 3.4"	£2.54 £2.12
32	MP555790 Out of stock	Tine Shield Assy	£101.74 £84.78
33	MP550106 Out of stock	Weight- Stabiliser Cast	£75.92 £63.27
34	MP550327 Out of stock	Stand Assy- Support HG incl	£29.50 £24.58
34	MP550319 Out of stock	(34A) Spring- Stand	£2.92 £2.43
35	MP550013 Out of stock	T Bolt 14-1.2" (370mm)	£28.68 £23.90
36	MP550016 Out of stock	Nut- Hand T Bolt	£28.84 £24.03
38	MP550062 Out of stock	Tine Assy	£41.90 £34.92
39	MP550040 Out of stock	Tine- Curved RH HG	£15.18 £12.65
40	MP550041 Out of stock	Tine- Curved LH HG	£15.18 £12.65
45	MP501602 Out of stock	Nut M8 Hex	£0.34 £0.28
