Masport 800ST - 479987 - June 2008 7114028 - Gearbox Assembly

Masport 800ST - 479987 - June 2008 7114028 - Gearbox Assembly
Masport 800ST - 479987 - June 2008 7114028 - Gearbox Assembly

Description

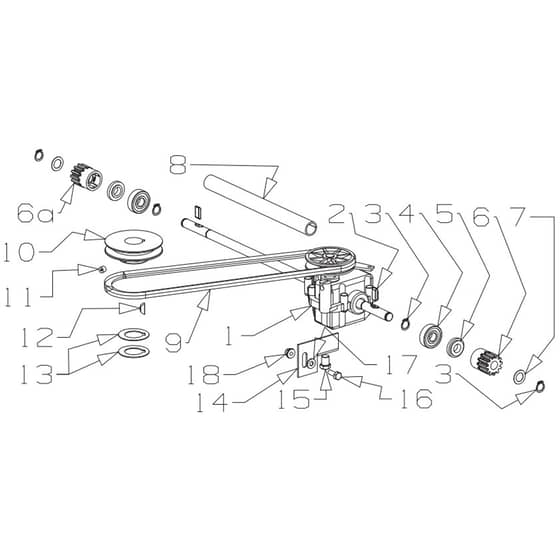

Masport 800ST Petrol Push Rotary Mower - Gearbox Assembly Parts Diagram

Part Number: 479987

Model: 800ST SP WC CO OPC 09

Engine Model: B&S XVS 675

Model Range: June 2008

Serial Number: 7114028

Ref. Img. Part No. Details
  1 Gearbox-Single Speed
Gearbox-Single Speed
MP573181 Out of stock
Gearbox-Single Speed
£158.54 £132.12

  2 Pawl Pinion 950 SP
Pawl Pinion 950 SP
MP581092 Out of stock
Pawl Pinion 950 SP
£2.98 £2.48

  3 Circlip 12 EXT DIN 471
Circlip 12 EXT DIN 471
MP503759 Out of stock
Circlip 12 EXT DIN 471
£0.44 £0.37

  4 Bearing 12x32x10 6201 2RS
Bearing 12x32x10 6201 2RS
MP501213 Out of stock
Bearing 12x32x10 6201 2RS
£17.94 £14.95

  5 Cap Pinion 950 SP Plastic
Cap Pinion 950 SP Plastic
MP581093 Out of stock
Cap Pinion 950 SP Plastic
£11.90 £9.92

  6 Pinion LH 12 Teeth
Pinion LH 12 Teeth
MP569178 Out of stock
Pinion LH 12 Teeth
£34.20 £28.50

  6 (6a) Pinion RH 12 Teeth
(6a) Pinion RH 12 Teeth
MP569179 Out of stock
(6a) Pinion RH 12 Teeth
£34.20 £28.50

  7 Washer Flat 12 x 20 x 0.4
Washer Flat 12 x 20 x 0.4
MP503102 Out of stock
Washer Flat 12 x 20 x 0.4
£0.72 £0.60

  9 Belt-V HC Vextra XPZ 925 Gates
Belt-V HC Vextra XPZ 925 Gates
MP571009 In stock
Belt-V HC Vextra XPZ 925 Gates
£41.02 £34.18

  10 Pulley- Eng 25b x 79d x 26h
Pulley- Eng 25b x 79d x 26h
MP568652 Out of stock
Pulley- Eng 25b x 79d x 26h
£38.84 £32.37

  11 Screw Grub M8 x 8
Screw Grub M8 x 8
MP503386 Out of stock
Screw Grub M8 x 8
£0.44 £0.37

  12 Key Woodruff 5.8 x 3.16 x 1.4
Key Woodruff 5.8 x 3.16 x 1.4
MP503363 Out of stock
Key Woodruff 5.8 x 3.16 x 1.4
£0.44 £0.37

  13 Spacer- Pulley 25 x 42 x 1
Spacer- Pulley 25 x 42 x 1
MP573024 Out of stock
Spacer- Pulley 25 x 42 x 1
£0.90 £0.75

  14 Mount Gearbox 21” SP Stl
Mount Gearbox 21” SP Stl
MP573759 Out of stock
Mount Gearbox 21” SP Stl
£5.84 £4.87

  15 Screw Set M10 x 12 Hex
Screw Set M10 x 12 Hex
MP503955 Out of stock
Screw Set M10 x 12 Hex
£1.18 £0.98

  16 Screw Set M6 x 16 Hex
Screw Set M6 x 16 Hex
MP501702 Out of stock
Screw Set M6 x 16 Hex
£0.44 £0.37

  17 Washer Flat 6 x 14 x 1.2
Washer Flat 6 x 14 x 1.2
MP501703 Out of stock
Washer Flat 6 x 14 x 1.2
£0.28 £0.23

  18 Nut M6 Hex Nyloc Flange
Nut M6 Hex Nyloc Flange
MP503973 Out of stock
Nut M6 Hex Nyloc Flange
£0.44 £0.37


Description

Masport 800ST Petrol Push Rotary Mower - Gearbox Assembly Parts Diagram

Part Number: 479987

Model: 800ST SP WC CO OPC 09

Engine Model: B&S XVS 675

Model Range: June 2008

Serial Number: 7114028
