Description

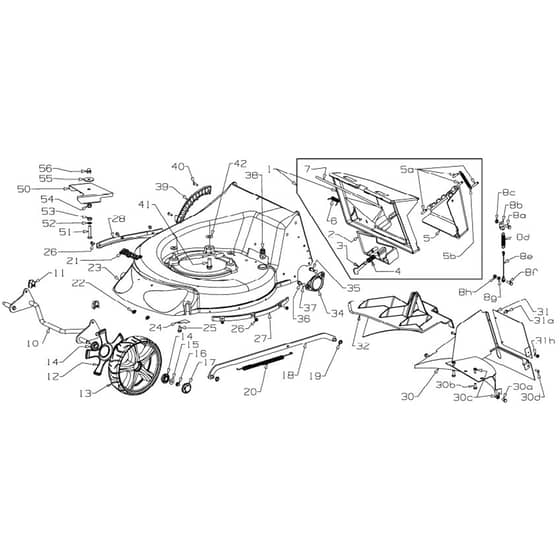

Masport 575AL Petrol Power Drive - Deck Parts Diagram

Part Number: 465839

Model: 575AL SP 3’n1 OPC

Engine Model: B&S 675EXi

Model Range: Aug 2020

Serial Number: > 8479068

Ref. Img. Part No. Details
  1 Flap Assy- Smart Chute 18”
Flap Assy- Smart Chute 18”
MP767059 Out of stock
Flap Assy- Smart Chute 18”
£55.22 £46.02

  2 Handle- Flap Side Discharge
Handle- Flap Side Discharge
MP581647 Out of stock
Handle- Flap Side Discharge
£14.02 £11.68

  3 Latch- Flap Barbed
Latch- Flap Barbed
MP981650 Out of stock
Latch- Flap Barbed
£10.70 £8.92

  4 Spring- Flap Latch
Spring- Flap Latch
MP581106 Out of stock
Spring- Flap Latch
£1.14 £0.95

  5 (5a) Pin Tension 6.0 x 35
(5a) Pin Tension 6.0 x 35
MP581676 Out of stock
(5a) Pin Tension 6.0 x 35
£1.36 £1.13

  5 (5b) Spring- Flap Side Discharge
(5b) Spring- Flap Side Discharge
MP581648 Out of stock
(5b) Spring- Flap Side Discharge
£2.32 £1.93

  5 Flap- Door Side Red
Flap- Door Side Red
MP571095 Out of stock
Flap- Door Side Red
£17.28 £14.40

  6 Spring- Flap ALI
Spring- Flap ALI
MP581528 Out of stock
Spring- Flap ALI
£2.20 £1.83

  7 Wire- Flap Pivot 6mm x 352mm
Wire- Flap Pivot 6mm x 352mm
MP581743 Out of stock
Wire- Flap Pivot 6mm x 352mm
£2.98 £2.48

  8 (8a) Set Screw M6 x 12 Hex
(8a) Set Screw M6 x 12 Hex
MP501959 Out of stock
(8a) Set Screw M6 x 12 Hex
£0.38 £0.32

  8 (8d) Spring- Pedal
(8d) Spring- Pedal
MP580268 Out of stock
(8d) Spring- Pedal
£1.30 £1.08

  8 (8g) Nut M6 Hex
(8g) Nut M6 Hex
MP501682 Out of stock
(8g) Nut M6 Hex
£2.60 £2.17

  8 (8e) Cable- Smart Chute
(8e) Cable- Smart Chute
MP569731 Out of stock
(8e) Cable- Smart Chute
£0.34 £0.28

  8 (8b) Bracket- Smart Chute
(8b) Bracket- Smart Chute
MP569732 Out of stock
(8b) Bracket- Smart Chute
£4.12 £3.43

  8 (8h) Nut M6 Hex Nyloc x 6mm thick
(8h) Nut M6 Hex Nyloc x 6mm thick
MP501764 Out of stock
(8h) Nut M6 Hex Nyloc x 6mm thick
£0.34 £0.28

  8 (8f) Screw Set M6 x 20 Hex
(8f) Screw Set M6 x 20 Hex
MP501600 Out of stock
(8f) Screw Set M6 x 20 Hex
£0.36 £0.30

  10 Axle Assy- Front 200mm
Axle Assy- Front 200mm
MP983281 Out of stock
Axle Assy- Front 200mm
£33.66 £28.05

  11 Bush- Pivot Front Axle
Bush- Pivot Front Axle
MP580030 Out of stock
Bush- Pivot Front Axle
£0.72 £0.60

  12 Cover- Inner Wheel Silver
Cover- Inner Wheel Silver
MP579205 Out of stock
Cover- Inner Wheel Silver
£2.76 £2.30

  13 Wheel Assy-200mm Mag Silver
Wheel Assy-200mm Mag Silver
MP573706 Out of stock
Wheel Assy-200mm Mag Silver
£35.92 £29.93

  14 Bearing- Wheel Ball Type
Bearing- Wheel Ball Type
MP551212 Out of stock
Bearing- Wheel Ball Type
£5.98 £4.98

  15 Washer Flat 8 x 19 x 1.6
Washer Flat 8 x 19 x 1.6
MP501606 Out of stock
Washer Flat 8 x 19 x 1.6
£0.40 £0.33

  16 Nut M8 Hex Nyloc x 6mm thick
Nut M8 Hex Nyloc x 6mm thick
MP503831 Out of stock
Nut M8 Hex Nyloc x 6mm thick
£0.72 £0.60

  17 Hub Cap- Button Mag Silver
Hub Cap- Button Mag Silver
MP579204 Out of stock
Hub Cap- Button Mag Silver
£0.52 £0.43

  18 Rod Assy- Connecting 600SP
Rod Assy- Connecting 600SP
MP981170 Out of stock
Rod Assy- Connecting 600SP
£28.34 £23.62

  19 Clip- Starlock 5.16
Clip- Starlock 5.16
MP501365 Out of stock
Clip- Starlock 5.16"
£0.52 £0.43

  20 Spring- Counter Balance
Spring- Counter Balance
MP573844 Out of stock
Spring- Counter Balance
£7.64 £6.37

  21 Nameplate MASPORT
Nameplate MASPORT
MP567406 Out of stock
Nameplate MASPORT
£6.04 £5.03

  22 Clip- Starlock 5 mm dia
Clip- Starlock 5 mm dia
MP503150 Out of stock
Clip- Starlock 5 mm dia
£0.52 £0.43

  23 HSG ASSY-ALI CO SP TTNM
HSG ASSY-ALI CO SP TTNM
MP769117 Out of stock
HSG ASSY-ALI CO SP TTNM
£339.48 £282.90

  24 Retainer- Axle Front
Retainer- Axle Front
MP980564 Out of stock
Retainer- Axle Front "Plate"
£0.86 £0.72

  25 Screw S.T 1.4
Screw S.T 1.4
MP501599 In stock
Screw S.T 1.4" x 5.8" Hex
£1.58 £1.32

  26 Screw S.T 10 x .4 Black
Screw S.T 10 x .4 Black
MP503630 Out of stock
Screw S.T 10 x .4 Black
£0.90 £0.75

  27 Deflector- Air LH (Ser 2)
Deflector- Air LH (Ser 2)
MP973839 Out of stock
Deflector- Air LH (Ser 2)
£9.74 £8.12

  28 Deflector- Air RH
Deflector- Air RH
MP581525 Out of stock
Deflector- Air RH
£8.58 £7.15

  30 (30b) Screw- Set M6 x 16
(30b) Screw- Set M6 x 16
MP501702 Out of stock
(30b) Screw- Set M6 x 16
£0.44 £0.37

  31 Tunnel- G.Box Cover 18
Tunnel- G.Box Cover 18
MP573359 Out of stock
Tunnel- G.Box Cover 18" Black
£9.46 £7.88

  32 Insert- Mulching 18
Insert- Mulching 18
MP573112 Out of stock
Insert- Mulching 18" ALI SP
£27.44 £22.87

  34 Retainer- Axle Rear 600SP
Retainer- Axle Rear 600SP
MP581178 Out of stock
Retainer- Axle Rear 600SP
£7.74 £6.45

  38 Cyclowash- Fitting
Cyclowash- Fitting
MP503783 Out of stock
Cyclowash- Fitting
£4.62 £3.85

  39 Quadrant- Height Selector
Quadrant- Height Selector
MP580025 Out of stock
Quadrant- Height Selector
£6.42 £5.35

  42 Spacer- Blade Driver
Spacer- Blade Driver
MP573585 Out of stock
Spacer- Blade Driver
£3.26 £2.72

  50 Cover- Belt 575 SP TTNM
Cover- Belt 575 SP TTNM
MP979080 Out of stock
Cover- Belt 575 SP TTNM
£18.94 £15.78

  51 Set Screw M8 x 40 Hex
Set Screw M8 x 40 Hex
MP501843 Out of stock
Set Screw M8 x 40 Hex
£0.86 £0.72

  52 Washer Spg 8
Washer Spg 8
MP503747 Out of stock
Washer Spg 8
£0.28 £0.23

  53 Nut M8 Hex
Nut M8 Hex
MP501602 Out of stock
Nut M8 Hex
£0.34 £0.28

  54 Nut M8 Hex Nyloc x 8mm thick
Nut M8 Hex Nyloc x 8mm thick
MP501793 Out of stock
Nut M8 Hex Nyloc x 8mm thick
£0.62 £0.52

  55 Washer Flat 8 x 32 x 2.0
Washer Flat 8 x 32 x 2.0
MP572199 Out of stock
Washer Flat 8 x 32 x 2.0
£1.36 £1.13

  56 Nut M8 Hex Dome C.Plated
Nut M8 Hex Dome C.Plated
MP503526 Out of stock
Nut M8 Hex Dome C.Plated
£0.72 £0.60


Description

Masport 575AL Petrol Power Drive - Deck Parts Diagram

Part Number: 465839

Model: 575AL SP 3’n1 OPC

Engine Model: B&S 675EXi

Model Range: Aug 2020

Serial Number: > 8479068
