Masport 350ST - 465806 - Apr 2020 > 8445824 - Handle

Description

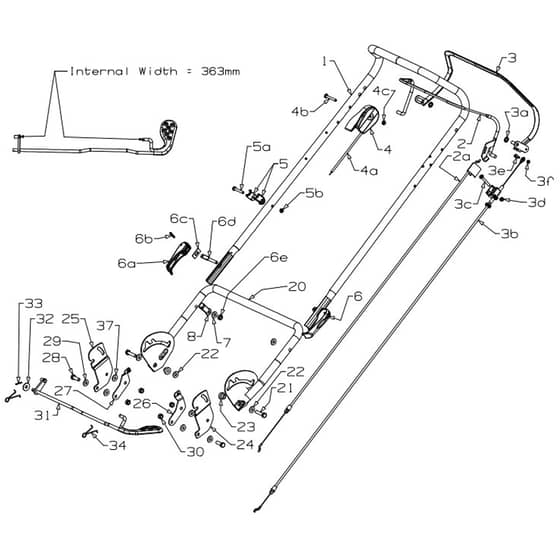

Masport 350ST Petrol Power Drive - Handle Parts Diagram

Part Number: 465806

Model: 350ST SP 2’n1 OPC 19

Engine Model: B&S Series 500E

Model Range: Apr 2020

Serial Number: > 8445824

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781265 Out of stock	Handle & Sleeve OPC.PVC.CHR	£30.34 £25.28
2	MP981740 Out of stock	Bail Arm Assy OPC Red	£21.30 £17.75
2	MP581656 Out of stock	(2a) Cable Engine OPC Push	£18.84 £15.70
3	MP765434 In stock	(3b) Cable Clutch Thumb wheel	£29.10 £24.25
3	MP982161 Out of stock	Bail Arm Assy SP Red	£29.38 £24.48
3	MP501764 Out of stock	(3d) Nut M6 Hex Nyloc x 6mm thick	£0.34 £0.28
3	MP502237 In stock	(3e) Bolt Hex Fl.Head Shouldered M5	£15.32 £12.77
3	MP502238 In stock	(3f) Nut M5 Hex Nyloc x 5mm thick	£0.30 £0.25
3	MP503604 Out of stock	(3c) Screw Pan M6 x 45	£0.86 £0.72
3	MP501365 Out of stock	(3a) Clip Starlock 5.16”	£0.52 £0.43
4	MP583458 In stock	(4.4a) Throttle Ctrl & Cable Wescon	£18.92 £15.77
5	MP503794 Out of stock	(5a) Screw Set M6 x 40 Hex	£0.34 £0.28
5	MP703856 Out of stock	Comfort Start Kit	£19.80 £16.50
6	MP779755 In stock	Cam Lock Assembly (1 per)	£10.80 £9.00
6	MP016777 Out of stock	(6c) Washer Slipper	£0.68 £0.57
6	MP582419 Out of stock	(6a) Lever- Handle Locking	£4.92 £4.10
6	MP501793 Out of stock	(6e) Nut M8 Hex Nyloc 8mm thick	£0.62 £0.52
6	MP503369 Out of stock	(6b) Pin Tension 5.0 x 22	£0.80 £0.67
7	MP501606 Out of stock	Washer Flat 8 x 19 x 1.6	£0.40 £0.33
8	MP581527 Out of stock	Retainer-Control Cable Handle	£0.72 £0.60
20	MP967594 Out of stock	Handle Assy- Lower ULFT18”ST	£46.52 £38.77
21	MP501716 Out of stock	Screw Set M8 x 35 Hex	£1.48 £1.23
28	MP501597 Out of stock	Screw Set M8 x 20 Hex	£0.44 £0.37
31	MP967542 Out of stock	Rod Assy Adj- Lower Lift 18” STL	£47.58 £39.65
33	MP501056 Out of stock	Pin Cotter 2.3dia x 16	£0.28 £0.23
34	MP567381 Out of stock	Spring- Ergo Lift	£1.52 £1.27
