Masport 350ST - 465806 - Apr 2020 > 8445824 - Gearbox

Name: Masport 350ST - 465806 - Apr 2020 > 8445824 - Gearbox
SKU: 350st4658068445824gearbox-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 350ST - 465806 - Apr 2020 > 8445824 - Gearbox

Description

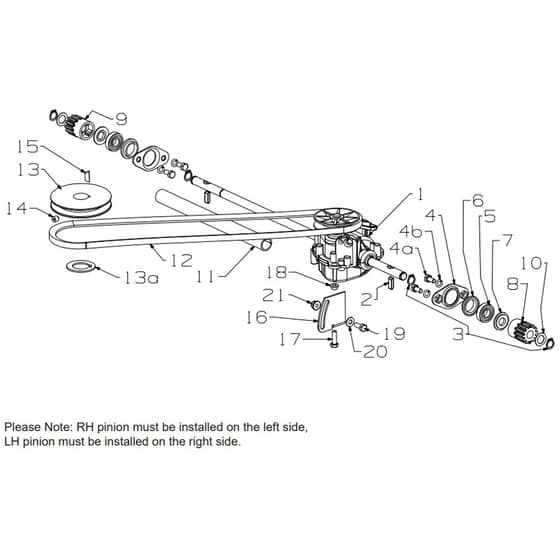

Masport 350ST Petrol Power Drive - Gearbox Parts Diagram

Part Number: 465806

Model: 350ST SP 2’n1 OPC 19

Engine Model: B&S Series 500E

Model Range: Apr 2020

Serial Number: > 8445824

Be the first to review this product

0 product questions

	Part No.	Details
1	MP567358 Out of stock	Gearbox- Single SP Synchro	£114.12 £95.10
2	MP581092 Out of stock	Pawl Pinion 950SP	£2.98 £2.48
3	MP503759 Out of stock	Circlip 12EXT DIN 471	£0.44 £0.37
4	MP501959 Out of stock	(4a) Screw Set M6 x 12	£0.38 £0.32
5	MP503901 Out of stock	Bearing Ball 12x28x8 6001-2RSH	£20.20 £16.83
6	MP568600 Out of stock	Bush- Pivot Rear Axle	£1.70 £1.42
7	MP568603 Out of stock	Cap- Pinion SP	£6.22 £5.18
8	MP569179 Out of stock	Pinion - R.H 12 Teeth	£34.20 £28.50
9	MP569178 Out of stock	Pinion - L.H 12 Teeth	£34.20 £28.50
10	MP503102 Out of stock	Washer Flat 12 x 20 x 0.4	£0.72 £0.60
11	MP580614 Out of stock	Sleeve- Rear Axle	£6.78 £5.65
12	MP574401 In stock	Belt-V HC VEXTRA XPZ 787 Gates	£33.17 £27.64
13	MP569552 Out of stock	(13a) Spacer- Pulley Eng 25 x 42 x 2	£3.52 £2.93
14	MP503386 Out of stock	Screw Grub M8 x 8	£0.44 £0.37
15	MP500636 Out of stock	Key- W.Ruff 5.8 x 5.32 x 1.4	£1.48 £1.23
16	MP557459 Out of stock	Mount- Gearbox 18” ST SP	£17.34 £14.45
17	MP501600 Out of stock	Screw Set M6 x 20	£0.36 £0.30
18	MP564093 Out of stock	Bush- G.Box Mount ST Synchro	£6.48 £5.40
19	MP501702 Out of stock	Screw Set M6 x 16	£0.44 £0.37
20	MP501703 Out of stock	Washer Flat 6 x 14 x 1.2	£0.28 £0.23
21	MP503973 Out of stock	Nut M6 Hex Nyloc Flanged	£0.44 £0.37
