Masport 200ST - 48380 - Sept 2015 - Handle

Name: Masport 200ST - 48380 - Sept 2015 - Handle
SKU: 200st48380handle-group
Price: 0.28 GBP
Availability: InStock

Description

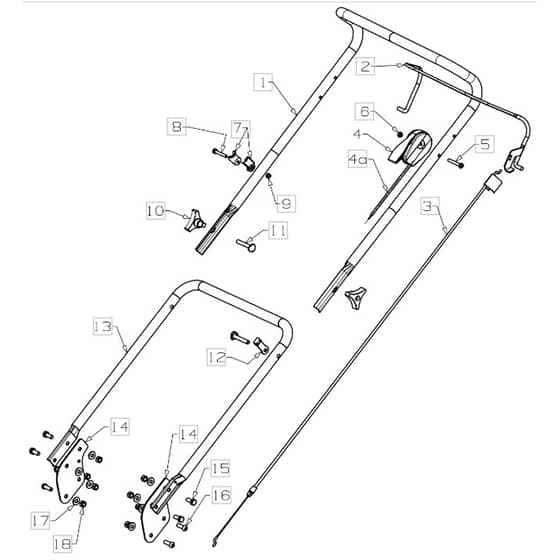

Masport 200ST Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 48380

Model: 200ST

Engine Model: -

Model Range: Sept 2015

Serial Number: -

	Part No.	Details
1	MP971022 Out of stock	Handle-Upper Upt OPC	£32.50 £27.08
2	MP981740 Out of stock	Bail Arm Assy OPC Red	£21.30 £17.75
3	MP581656 Out of stock	Cable- Engine OPC Push On	£18.84 £15.70
4	MP583458 In stock	(4a) Throttle & Cable Wescon	£18.92 £15.77
5	MP503604 Out of stock	Screw Set M6 x 45	£0.86 £0.72
6	MP501764 Out of stock	Nut M6 Hex Nyloc x 6mm thick	£0.34 £0.28
7	MP703856 Out of stock	Comfort Start Kit	£19.80 £16.50
8	MP503794 Out of stock	Screw Set M6 x 40	£0.34 £0.28
10	MP574230 Out of stock	Knob- Plastic M8 Insert	£4.46 £3.72
11	MP574218 Out of stock	Bolt SPH M8 x 53 x 35	£1.70 £1.42
12	MP581527 Out of stock	Retainer- Clutch Cable Handle	£0.72 £0.60
13	MP971017 Out of stock	Handle-Lower “U” OPP Long	£24.16 £20.13
14	MP579689 Out of stock	Bracket- Flap OPP	£10.04 £8.37
15	MP501597 Out of stock	Screw Set M8 x 20 Hex	£0.44 £0.37
17	MP501606 Out of stock	Washer Flat 8 x 19 x 1.6	£0.40 £0.33
18	MP501793 Out of stock	Nut M8 Hex Nyloc x 8mm thick	£0.62 £0.52
