Description

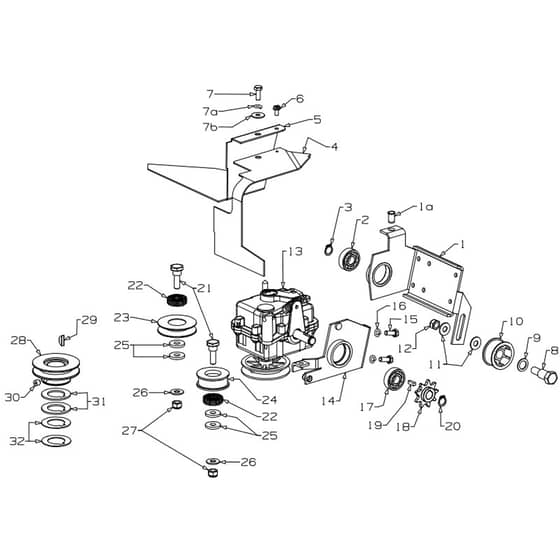

Masport 18 Petrol Rotarola - Gearbox Assembly Parts Diagram

Part Number: 457954

Model: S18 AL Rotarola SP Instart

Engine Model: B&S Series 675EXi

Model Range: Nov 2016

Serial Number: -

Ref. Img. Part No. Details
  1 (1a) Nut M6 Nutsert
(1a) Nut M6 Nutsert
MP501040 Out of stock
(1a) Nut M6 Nutsert
£0.72 £0.60

  1 Gearbox- Support Assy RH
Gearbox- Support Assy RH
MP957279 Out of stock
Gearbox- Support Assy RH
£28.14 £23.45

  2 Brg Ball 12x32x10 6201 2RS
Brg Ball 12x32x10 6201 2RS
MP501213 Out of stock
Brg Ball 12x32x10 6201 2RS
£17.94 £14.95

  3 Circlip 12 Ext
Circlip 12 Ext
MP503759 Out of stock
Circlip 12 Ext
£0.44 £0.37

  6 Screw S.T 10 x .4
Screw S.T 10 x .4
MP503630 Out of stock
Screw S.T 10 x .4
£0.90 £0.75

  7 Screw Set M6x16 HT8.8 Hex
Screw Set M6x16 HT8.8 Hex
MP503223 Out of stock
Screw Set M6x16 HT8.8 Hex
£1.06 £0.88

  8 Stud - Tensioner Pulley
Stud - Tensioner Pulley
MP557300 Out of stock
Stud - Tensioner Pulley
£6.94 £5.78

  9 Washer. Flt 1.2 x 3.4 x 18G
Washer. Flt 1.2 x 3.4 x 18G
MP503301 Out of stock
Washer. Flt 1.2 x 3.4 x 18G
£3.36 £2.80

  10 Pulley- Tensioner
Pulley- Tensioner
MP557067 Out of stock
Pulley- Tensioner
£6.88 £5.73

  11 Washer FLT 8 x 19 x 1.6
Washer FLT 8 x 19 x 1.6
MP501606 Out of stock
Washer FLT 8 x 19 x 1.6
£0.40 £0.33

  12 Nut M8 Hex Nylock 8thck
Nut M8 Hex Nylock 8thck
MP501793 Out of stock
Nut M8 Hex Nylock 8thck
£0.62 £0.52

  13 Gearbox- Rotarola
Gearbox- Rotarola
MP557268 In stock
Gearbox- Rotarola
£137.84 £114.87

  14 Support Assy- Gearbox LH
Support Assy- Gearbox LH
MP757281 Out of stock
Support Assy- Gearbox LH
£33.32 £27.77

  18 Sprocket- 9T G.B Out
Sprocket- 9T G.B Out
MP557306 Out of stock
Sprocket- 9T G.B Out
£44.62 £37.18

  19 Key 4 x 4 x 12
Key 4 x 4 x 12
MP503873 Out of stock
Key 4 x 4 x 12
£0.80 £0.67

  21 Stud- Idler Pulley
Stud- Idler Pulley
MP557317 In stock
Stud- Idler Pulley
£6.22 £5.18

  22 Brg Ball 12x28x8 6001 2RSH
Brg Ball 12x28x8 6001 2RSH
MP503901 Out of stock
Brg Ball 12x28x8 6001 2RSH
£20.20 £16.83

  23 Pulley- V Idler
Pulley- V Idler
MP557316 Out of stock
Pulley- V Idler
£27.14 £22.62

  24 Pulley- Flat Idler
Pulley- Flat Idler
MP573382 Out of stock
Pulley- Flat Idler
£22.56 £18.80

  25 Washer Flt 8x20x3.0
Washer Flt 8x20x3.0
MP503872 Out of stock
Washer Flt 8x20x3.0
£1.80 £1.50

  28 Pulley- Eng 25 x 68 x 28.5
Pulley- Eng 25 x 68 x 28.5
MP568651 Out of stock
Pulley- Eng 25 x 68 x 28.5
£31.14 £25.95

  29 Key Woodruff 5.8x3.16x1.4
Key Woodruff 5.8x3.16x1.4
MP503363 Out of stock
Key Woodruff 5.8x3.16x1.4
£0.44 £0.37

  30 Screw Grb M8x8
Screw Grb M8x8
MP503386 Out of stock
Screw Grb M8x8
£0.44 £0.37

  31 Spacer- Pulley Eng 25 x 42 x 2
Spacer- Pulley Eng 25 x 42 x 2
MP569552 Out of stock
Spacer- Pulley Eng 25 x 42 x 2
£3.52 £2.93

  32 Spacer - Pulley Eng 25x42x1
Spacer - Pulley Eng 25x42x1
MP573024 Out of stock
Spacer - Pulley Eng 25x42x1
£0.90 £0.75


Description

Masport 18 Petrol Rotarola - Gearbox Assembly Parts Diagram

Part Number: 457954

Model: S18 AL Rotarola SP Instart

Engine Model: B&S Series 675EXi

Model Range: Nov 2016

Serial Number: -
