Masport 18 - 457945 - Sept 2011 7494435 - Deck Assembly

Description

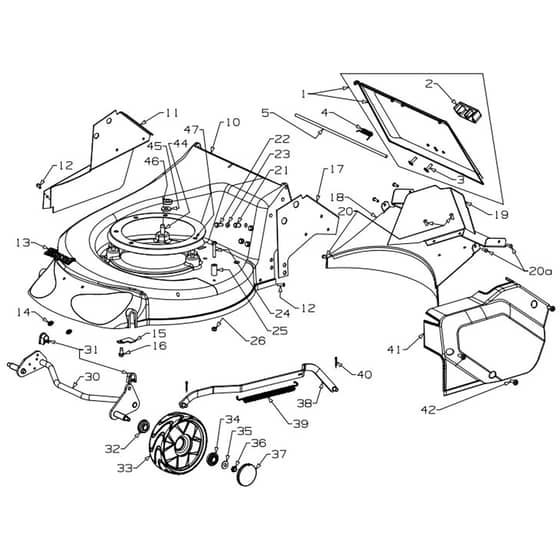

Masport 18 Petrol Rotarola - Deck Assembly Parts Diagram

Part Number: 457945

Model: Rotarola AL SP

Engine Model: Honda GCV 160E

Model Range: Sept 2011

Serial Number: 7494435

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781477 Out of stock	Flap assembly - Steel Black	£36.22 £30.18
2	MP580602 Out of stock	Handle- Flap	£2.82 £2.35
3	MP503650 Out of stock	Screw. S.Tapping #12x11.16"	£0.90 £0.75
4	MP564275 Out of stock	Spring- Flap STL 18".20"	£1.92 £1.60
5	MP581743 Out of stock	Wire- Flap Pivot 6x347	£2.98 £2.48
10	MP779498 Out of stock	Hsg Assy- Ali 18" RR SP TTNM	£295.28 £246.07
11	MP957311 Out of stock	Cover- Side RH TTNM	£28.40 £23.67
13	MP567406 Out of stock	Nameplate Masport B.W	£6.04 £5.03
14	MP503150 Out of stock	Clip- Starlock 5 Dia	£0.52 £0.43
15	MP980564 Out of stock	Plate- Retainer Front Axle	£0.86 £0.72
16	MP501599 In stock	Screw S.T 1.4x5.8 Hex	£1.58 £1.32
17	MP957312 Out of stock	Plate- Side LH	£21.00 £17.50
18	MP957270 Out of stock	Ramp Assy Grass	£79.82 £66.52
19	MP957273 Out of stock	Cover- Chute Grass	£19.14 £15.95
21	MP501040 Out of stock	Nut M6 Nutsert 9658-0619	£0.72 £0.60
22	MP503223 Out of stock	Screw Set M6 x 16 HT 8.8	£1.06 £0.88
24	MP501815 Out of stock	Screw Set M6 x 35	£0.36 £0.30
25	MP503874 Out of stock	Bush X-Lube 1.4" x 1.2" x 1"	£0.90 £0.75
26	MP501764 Out of stock	Nut M6 Hex Nylock x 6mm Thick	£0.34 £0.28
30	MP983246 Out of stock	Axle Assy Front 150mm Thrd	£34.78 £28.98
31	MP580030 Out of stock	Bush- Pivot Axle	£0.72 £0.60
32	MP551212 Out of stock	Bearing- Wheel Ball Type	£5.98 £4.98
33	MP579195 Out of stock	Wheel Assy- 150mm Spkd Slv	£26.82 £22.35
35	MP501606 Out of stock	Washer Flt 8x19x1.6	£0.40 £0.33
36	MP503831 Out of stock	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
37	MP579198 Out of stock	Hub Cap Button Spkd Slv	£0.86 £0.72
38	MP957290 Out of stock	Rod Assy Connecting R.R SP	£15.22 £12.68
39	MP580621 Out of stock	Spring Counter Balance SP RR	£5.14 £4.28
40	MP501056 Out of stock	Pin Cotter 2.3d x 16	£0.28 £0.23
41	MP557301 Out of stock	Cover- Side LH 18" R.R	£21.86 £18.22
42	MP503331 Out of stock	Screw Pan M6 x 16	£1.24 £1.03
45	MP573585 Out of stock	Spacer - Blade Driver 22 x 4	£3.26 £2.72
46	MP583542 Out of stock	Spacer Base 10.5 x 22 x 6.0	£3.46 £2.88
47	MP569037 Out of stock	Ring Safety Black	£18.80 £15.67
