MANOR 75 R G - 2010 - 217510043/M10 - Mountfield Tiller Transmission Diagram

Name: MANOR 75 R G - 2010 - 217510043/M10 - Mountfield Tiller Transmission Diagram
SKU: manor_75_r_g_217510043_m10_transmission-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MANOR 75 R G - 2010 - 217510043/M10 - Mountfield Tiller Transmission Diagram

Description

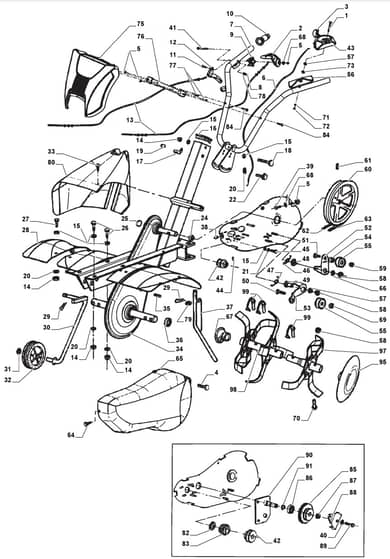

Mountfield MANOR 75 R G Parts Diagram

Model Year - 2010

Model Type - 75RG

Art.N - 217510043/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112819110/0 In stock	Screw	£1.74 £1.45
3	MO381007279/1 Out of stock	Throttle Lever	£1.66 £1.38
5	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
6	MO1483-2181-01 Out of stock	Throttle Cable	£13.19 £10.99
7	MO1483-2163-01 Out of stock	Handle	£99.71 £83.09
8	MO112154330/0 Out of stock	Nut	£1.48 £1.23
9	MO118805164/0 Out of stock	Support	£9.47 £7.89
12	MO118801224/0 Out of stock	Handle	£10.04 £8.37
13	MO1483-2162-01 Out of stock	Cable	£19.78 £16.48
14	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
16	MO1483-2166-01 Out of stock	Cap	£2.42 £2.02
18	MO112691900/0 Out of stock	Screw	£1.74 £1.45
19	MO1483-2191-01 Out of stock	Nut	£1.48 £1.23
20	MO9699-0122-02 Out of stock	Washer	£1.66 £1.38
21	MO9699-0028-02 Out of stock	Washer	£1.66 £1.38
22	MO9959-0825-16 Out of stock	Screw	£1.66 £1.38
24	MO1483-2187-01 Out of stock	Oil Seal	£5.22 £4.35
25	MO1483-2186-01 Out of stock	Cap	£4.09 £3.41
26	MO9997-0840-16 Out of stock	Screw	£1.66 £1.38
27	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
29	MO9598-0002-02 Out of stock	Elastic Pin	£1.66 £1.38
30	MO1483-2168-01 Out of stock	Support	£30.80 £25.67
31	MO1483-2195-01 Out of stock	Washer	£4.02 £3.35
32	MO1483-2112-01 Out of stock	Support	£14.95 £12.46
35	MO1483-2075-01 Out of stock	Cap	£3.48 £2.90
36	MO1483-2070-01 Out of stock	Oil Seal	£7.56 £6.30
37	MO1483-2167-01 Out of stock	Lever	£25.84 £21.53
38	MO1483-2190-01 Out of stock	Nut	£1.55 £1.29
39	MO112791200/1 Out of stock	Screw	£1.34 £1.12
40	MO9683-0025-02 Out of stock	Washer	£1.66 £1.38
41	MO9997-0660-12 Out of stock	Screw	£1.40 £1.17
42	MO1483-2174-01 Out of stock	Pulley	£23.82 £19.85
43	MO322981740/1 Out of stock	Accelerator	£1.66 £1.38
47	MO1483-2157-01 Out of stock	Spring	£6.76 £5.63
55	MO1483-2004-01 Out of stock	Pulley	£25.31 £21.09
56	MO322171006/0 Out of stock	Spacer	£1.66 £1.38
57	MO112521360/0 In stock	Washer	£1.48 £1.23
58	MO112156602/0 In stock	Lock Nut	£1.34 £1.12
59	MO9747-1231-02 Out of stock	Nut	£1.66 £1.38
60	MO1483-2150-01 Out of stock	Pulley	£60.25 £50.21
61	MO9595-0277-01 Out of stock	Pin	£1.66 £1.38
62	MO1483-2141-01 Out of stock	Belt	£15.88 £13.23
63	MO1483-2149-01 Out of stock	Belt	£44.45 £37.04
64	MO9959-0616-16 Out of stock	Screw	£1.66 £1.38
67	MO1483-2173-01 Out of stock	Dust Cover	£6.31 £5.26
68	MO9699-0100-02 Out of stock	Flat Washer	£1.66 £1.38
70	MO9997-1050-16 Out of stock	Screw	£2.42 £2.02
71	MO112521320/0 Out of stock	Washer	£1.48 £1.23
72	MO9799-0531-02 Out of stock	Nut	£1.66 £1.38
73	MO112508100/0 Out of stock	Cup Spring	£1.48 £1.23
78	MO2135030 In stock	Washer	£1.40 £1.17
79	MO112521390/0 Out of stock	Washer	£1.74 £1.45
82	MO1483-2117-01 Out of stock	Spacer	£2.66 £2.22
84	MO112674700/0 Out of stock	Screw	£1.48 £1.23
85	MO118804939/0 Out of stock	Sprocket	£33.64 £28.03
86	MO119216038/0 Out of stock	Ball Bearing	£5.63 £4.69
88	MO1483-2147-01 Out of stock	Bracket	£8.51 £7.09
89	MO9997-0612-16 Out of stock	Screw	£1.66 £1.38
90	MO1483-2146-01 Out of stock	Plate	£22.20 £18.50
91	MO112608600/0 In stock	Circlip	£1.48 £1.23
95	MO1483-2022-01 Out of stock	Disc	£37.49 £31.24
97	MO1483-2170-01 Out of stock	Left Tine Assy	£63.24 £52.70
97	MO1483-2169-01 Out of stock	Right Tine Assy	£61.90 £51.58
98	MO1483-2023-01 Out of stock	Rotor Assy-Rh	£76.70 £63.92
98	MO1483-2024-01 Out of stock	Rotor Assy-Lh	£76.70 £63.92
99	MO1483-2196-01 Out of stock	Lock Pin	£2.96 £2.47
