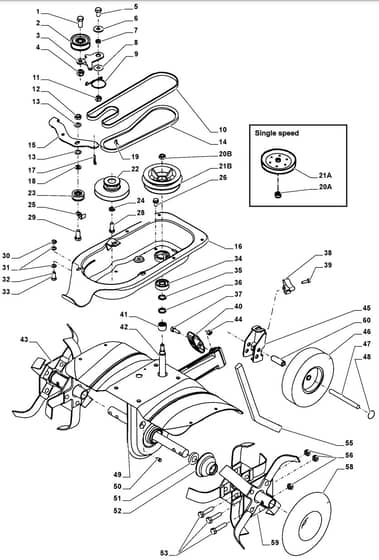

MANOR 50 G - 2008-2010 - 216000043/MO8 - Mountfield Tiller Transmission Diagram

Name: MANOR 50 G - 2008-2010 - 216000043/MO8 - Mountfield Tiller Transmission Diagram
SKU: manor_50_g_216000043_mo8_transmission-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MANOR 50 G - 2008-2010 - 216000043/MO8 - Mountfield Tiller Transmission Diagram

Description

Mountfield MANOR 50 G Parts Diagram

Model Year - 2008-2010

Model Type - 50 G

Art.N - 216000043/MO8

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1483-2004-01 Out of stock	Pulley	£25.31 £21.09
4	MO9747-1231-02 Out of stock	Nut	£1.66 £1.38
5	MO9997-1020-16 Out of stock	Screw	£1.66 £1.38
6	MO9699-0105-02 Out of stock	Washer	£1.66 £1.38
9	MO1483-2033-01 Out of stock	Spring	£4.96 £4.13
14	MO1483-2035-01 Out of stock	Belt	£14.40 £12.00
19	MO112139100/0 In stock	Key	£1.48 £1.23
21	MO1483-2028-01 Out of stock	Pulley	£38.77 £32.31
24	MO112521360/0 In stock	Washer	£1.48 £1.23
26	MO112800815/0 Out of stock	Screw	£1.48 £1.23
28	MO9987-5225-16 Out of stock	Screw	£1.66 £1.38
31	MO9699-0028-02 Out of stock	Washer	£1.66 £1.38
32	MO9997-0840-16 Out of stock	Screw	£1.66 £1.38
34	MO1483-2071-01 Out of stock	Ball Bearing	£24.19 £20.16
36	MO1483-2000-01 Out of stock	Spacer	£1.61 £1.34
37	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
39	MO112793301/0 Out of stock	Screw	£1.48 £1.23
43	MO1483-2023-01 Out of stock	Rotor Assy-Rh	£76.70 £63.92
44	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
45	MO1483-2056-01 Out of stock	Support	£17.14 £14.28
46	MO1483-2061-01 Out of stock	Wheel	£9.42 £7.85
48	MO1483-2074-01 Out of stock	Fastener	£1.48 £1.23
50	MO1483-2075-01 Out of stock	Cap	£3.48 £2.90
51	MO1483-2070-01 Out of stock	Oil Seal	£7.56 £6.30
53	MO9997-1050-16 Out of stock	Screw	£2.42 £2.02
56	MO112156602/0 In stock	Lock Nut	£1.34 £1.12
58	MO1483-2022-01 Out of stock	Disc	£37.49 £31.24
59	MO1483-2024-01 Out of stock	Rotor Assy-Lh	£76.70 £63.92
