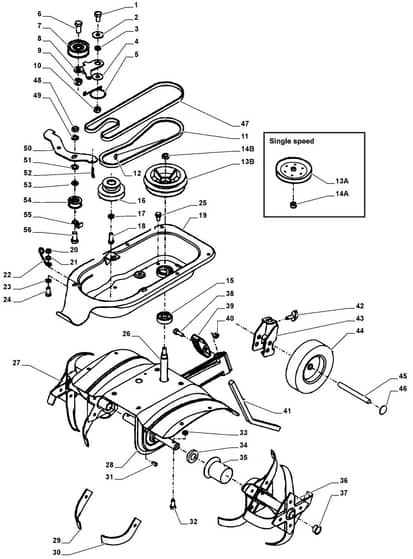

MANOR 40 RG - 2009-2010 - 214010043/MO9 - Mountfield Tiller Transmission Diagram

Name: MANOR 40 RG - 2009-2010 - 214010043/MO9 - Mountfield Tiller Transmission Diagram
SKU: manor_40_rg_214010043_mo9_transmission-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MANOR 40 RG - 2009-2010 - 214010043/MO9 - Mountfield Tiller Transmission Diagram

Description

Mountfield MANOR 40 RG Parts Diagram

Model Year - 2009-2010

Model Type - 40 R G

Art.N - 214010043/MO9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-1020-16 Out of stock	Screw	£1.66 £1.38
2	MO9699-0105-02 Out of stock	Washer	£1.66 £1.38
5	MO1483-2033-01 Out of stock	Spring	£4.96 £4.13
7	MO1483-2004-01 Out of stock	Pulley	£25.31 £21.09
9	MO9747-1231-02 Out of stock	Nut	£1.66 £1.38
10	MO112156602/0 In stock	Lock Nut	£1.34 £1.12
11	MO1483-2034-01 Out of stock	Belt	£14.94 £12.45
13	MO1483-2025-01 Out of stock	Pulley	£43.06 £35.88
15	MO1483-2071-01 Out of stock	Ball Bearing	£24.19 £20.16
16	MO1483-2065-01 Out of stock	Pulley	£58.92 £49.10
18	MO9987-5225-16 Out of stock	Screw	£1.66 £1.38
23	MO9699-0028-02 Out of stock	Washer	£1.66 £1.38
24	MO9997-0840-16 Out of stock	Screw	£1.66 £1.38
25	MO112800815/0 Out of stock	Screw	£1.48 £1.23
26	MO1483-2011-01 Out of stock	Screw	£69.64 £58.03
29	MO1483-2014-01 Out of stock	Left Tine	£7.20 £6.00
30	MO1483-2013-01 Out of stock	Right Tine	£7.20 £6.00
31	MO1483-2075-01 Out of stock	Cap	£3.48 £2.90
32	MO112691100/0 Out of stock	Screw	£1.48 £1.23
34	MO1483-2069-01 Out of stock	Oil Seal	£8.44 £7.03
35	MO1483-2012-01 Out of stock	Dust Cover	£4.69 £3.91
38	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
40	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
41	MO1483-2063-01 Out of stock	Lever	£26.24 £21.87
42	MO1483-2077-01 Out of stock	Screw	£10.04 £8.37
43	MO1483-2056-01 Out of stock	Support	£17.14 £14.28
44	MO1483-2058-01 Out of stock	Wheel	£11.65 £9.71
45	MO1483-2057-01 Out of stock	Axle. Wheels	£8.57 £7.14
46	MO1483-2074-01 Out of stock	Fastener	£1.48 £1.23
47	MO1483-2036-01 Out of stock	Belt	£43.44 £36.20
48	MO112295200/0 Out of stock	Nut	£1.34 £1.12
52	MO9599-0052-02 Out of stock	Cotter Pin	£1.40 £1.17
53	MO112521360/0 In stock	Washer	£1.48 £1.23
54	MO1483-2003-01 Out of stock	Roll	£25.70 £21.42
56	MO9997-1025-16 Out of stock	Screw M6S M10 X 25	£1.66 £1.38
