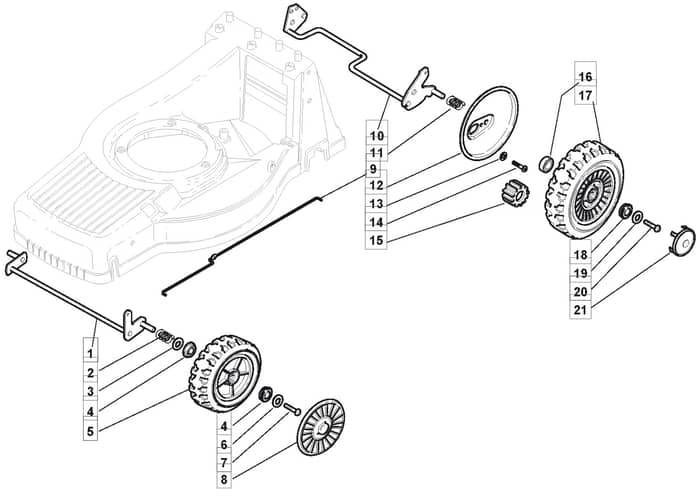

M63 PD ES - 2008 - 292552543/UM8 - Mountfield Rotary Mower Wheels Diagram

Name: M63 PD ES - 2008 - 292552543/UM8 - Mountfield Rotary Mower Wheels Diagram
SKU: m63_pd_es_292552543_um8_wheels-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M63 PD ES - 2008 - 292552543/UM8 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield M63 PD ES Parts Diagram

Product Name - M63 PD/ES

Model Year - 2008

Model Type - TU 554 TR/E

Art.N - 292552543/UM8

Engine Model - SV200 Electric Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002847/0 Out of stock	Front Wheel Axle From 01-9-2006	£33.10 £27.58
1	MO381002825/0 Out of stock	Front Wheel Axle To 31-August-2006	£44.56 £37.13
2	MO122430210/0 Out of stock	Bearing	£1.61 £1.34
3	MO112521370/0 Out of stock	Washer	£1.48 £1.23
4	MO122122206/0 In stock	Bearing	£1.74 £1.45
5	MO381007351/0 In stock	Wheel Ø 170 From 01-9-2006	£12.86 £10.72
5	MO381007344/0 Out of stock	Wheel To 31-8-2006	£28.01 £23.34
8	MO322110721/0 Out of stock	Hub Cap Grey Grey	£2.28 £1.90
10	MO381002823/0 Out of stock	Rear Wheel Axle	£48.37 £40.31
11	MO122430215/0 Out of stock	Spring	£3.08 £2.57
15	MO122570125/0 In stock	Pinion	£13.93 £11.61
16	MO119216038/0 Out of stock	Bearing	£5.63 £4.69
17	MO381007362/0 In stock	Wheel	£44.56 £37.13
18	MO122122201/0 In stock	Bearing	£2.15 £1.79
19	MO112521460/0 Out of stock	Washer To 31-8-2009	£1.34 £1.12
20	MO112735662/1 Out of stock	Screw	£2.28 £1.90
21	MO322110384/0 In stock	Hub Cap 190.215 [Grey]	£6.88 £5.73
