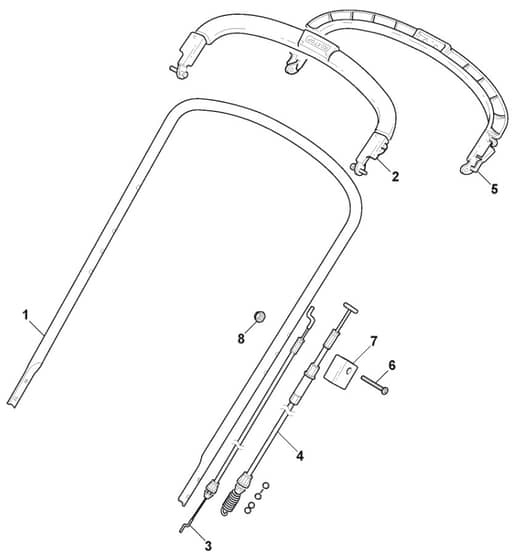

M63 PD ES - 2008 - 292552543/UM8 - Mountfield Rotary Mower Upper Handle Diagram

Name: M63 PD ES - 2008 - 292552543/UM8 - Mountfield Rotary Mower Upper Handle Diagram
SKU: m63_pd_es_292552543_um8_upper_handle-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M63 PD ES - 2008 - 292552543/UM8 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield M63 PD ES Parts Diagram

Product Name - M63 PD/ES

Model Year - 2008

Model Type - TU 554 TR/E

Art.N - 292552543/UM8

Engine Model - SV200 Electric Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006618/1 Out of stock	Handle. Upper Part	£48.37 £40.31
2	MO381003298/1 In stock	Lever	£31.82 £26.52
2	MO381003330/0 Out of stock	Lever. Engine Brake From 01-9-2010	£63.66 £53.05
3	MO181000777/0 Out of stock	Cable. Thread Engine Brake	£21.44 £17.87
4	MO381000697/0 In stock	Cable Rear Drive	£19.28 £16.07
5	MO381003297/1 In stock	Driving Lever	£20.75 £17.29
6	MO112727783/0 Out of stock	Screw	£1.61 £1.34
7	MO322551685/0 In stock	Cable Holder	£7.13 £5.94
8	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.48 £1.23
