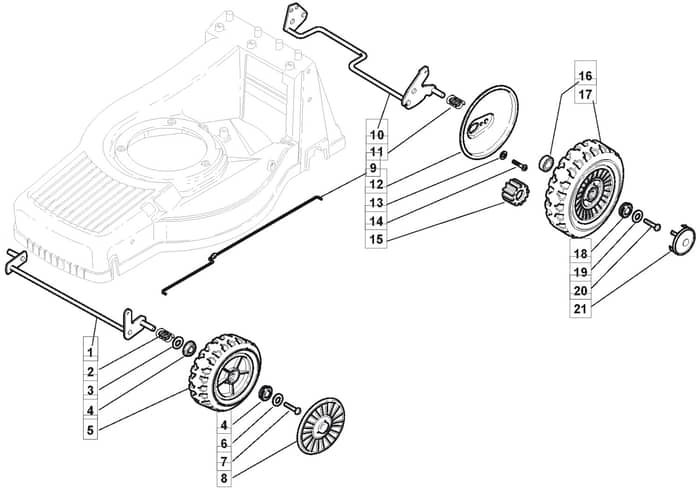

M63 PD ES - 2007 - 292552543/MO7 - Mountfield Rotary Mower Wheels Diagram

M63 PD ES - 2007 - 292552543/MO7 - Mountfield Rotary Mower Wheels Diagram
M63 PD ES - 2007 - 292552543/MO7 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield M63 PD ES Parts Diagram

Product Name - M63 PD/ES

Model Year - 2007

Model Type - TU 554 TR/E

Art.N - 292552543/MO7

Engine Model - SV200 Electric Start

Ref. Img. Part No. Details
  1 Front Wheel Axle From 01-9-2006
Front Wheel Axle From 01-9-2006
MO381002847/0 Out of stock
Front Wheel Axle From 01-9-2006
£33.10 £27.58

  1 Front Wheel Axle To 31-August-2006
Front Wheel Axle To 31-August-2006
MO381002825/0 Out of stock
Front Wheel Axle To 31-August-2006
£44.56 £37.13

  2 Bearing
Bearing
MO122430210/0 Out of stock
Bearing
£1.61 £1.34

  3 Washer
Washer
MO112521370/0 Out of stock
Washer
£1.48 £1.23

  4 Bearing
Bearing
MO122122206/0 In stock
Bearing
£1.74 £1.45

  5 Wheel To 31-8-2006
Wheel To 31-8-2006
MO381007344/0 Out of stock
Wheel To 31-8-2006
£28.01 £23.34

  5 Wheel Ø 170 From 01-9-2006
Wheel Ø 170 From 01-9-2006
MO381007351/0 In stock
Wheel Ø 170 From 01-9-2006
£12.86 £10.72

  8 Hub Cap Grey Grey
Hub Cap Grey Grey
MO322110721/0 Out of stock
Hub Cap Grey Grey
£2.28 £1.90

  10 Rear Wheel Axle
Rear Wheel Axle
MO381002823/0 Out of stock
Rear Wheel Axle
£48.37 £40.31

  11 Spring
Spring
MO122430215/0 Out of stock
Spring
£3.08 £2.57

  15 Pinion
Pinion
MO122570125/0 In stock
Pinion
£13.93 £11.61

  16 Bearing
Bearing
MO119216038/0 Out of stock
Bearing
£5.63 £4.69

  17 Wheel
Wheel
MO381007362/0 Out of stock
Wheel
£44.56 £37.13

  18 Bearing
Bearing
MO122122201/0 In stock
Bearing
£2.15 £1.79

  19 Washer To 31-8-2009
Washer To 31-8-2009
MO112521460/0 Out of stock
Washer To 31-8-2009
£1.34 £1.12

  20 Screw
Screw
MO112735662/1 Out of stock
Screw
£2.28 £1.90

  21 Hub Cap 190.215 [Grey]
Hub Cap 190.215 [Grey]
MO322110384/0 In stock
Hub Cap 190.215 [Grey]
£6.88 £5.73


Description

Mountfield M63 PD ES Parts Diagram

Product Name - M63 PD/ES

Model Year - 2007

Model Type - TU 554 TR/E

Art.N - 292552543/MO7

Engine Model - SV200 Electric Start
