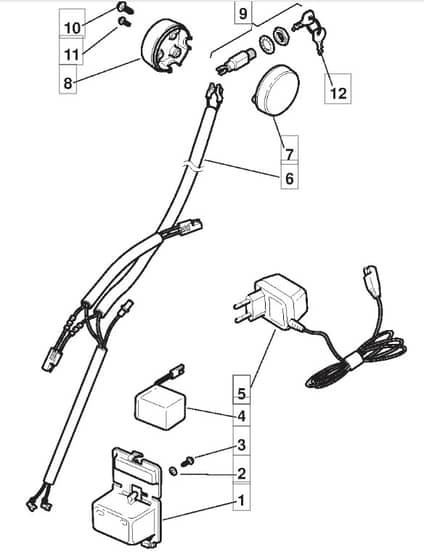

M60 PD ES - 2008 - 292552523/UM8 - Mountfield Rotary Mower Electric Start Diagram

Name: M60 PD ES - 2008 - 292552523/UM8 - Mountfield Rotary Mower Electric Start Diagram
SKU: m60_pd_es_292552523_um8_electric_start-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M60 PD ES - 2008 - 292552523/UM8 - Mountfield Rotary Mower Electric Start Diagram

Description

Mountfield M60 PD ES Parts Diagram

Product Name - M60 PD/ES

Model Year - 2008

Model Type - TU 554 TR/E 4S

Art.N - 292552523/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322109533/0 Out of stock	Battery Holder	£13.37 £11.14
2	MO112523040/0 In stock	Washer	£1.48 £1.23
4	MO118120064/0 In stock	Battery	£44.18 £36.82
5	MO118204120/1LC In stock	Battery Charger	£25.72 £21.43
6	MO118204196/0 Out of stock	Starting Cable	£52.22 £43.52
7	MO322722801/0 Out of stock	Starting Block Outer Half-Bearing	£1.52 £1.27
8	MO322722800/0 Out of stock	Starting Block Inner Half-Bearing	£9.94 £8.28
9	MO118450051/0 In stock	Switch	£17.68 £14.73
10	MO112728702/0 Out of stock	Screw	£1.48 £1.23
11	MO112728706/0 In stock	Screw	£1.48 £1.23
12	MO118210016/1 Out of stock	Ignition Key [Pair]	£12.18 £10.15
