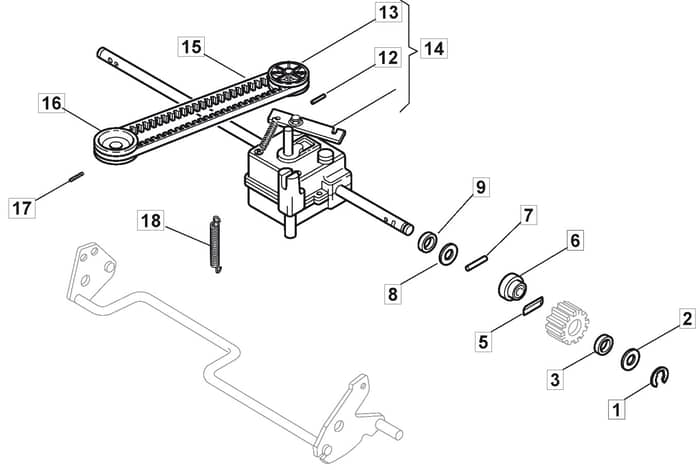

M60 PD ES - 2006-2007 - 292552523/MOU - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield M60 PD ES Parts Diagram

Product Name - M60 PD/ES

Model Year - 2006-2007

Model Type - TU 554 TR/E

Art.N - 292552523/MOU

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.39 £1.16
1	MO112000957/0 Out of stock	Benzing Ring	£1.39 £1.16
3	MO322160520/0 In stock	Dust Cover Disc	£1.39 £1.16
5	MO122076645/0 In stock	Key	£1.54 £1.28
6	MO322170630/1 Out of stock	Spacer	£4.45 £3.71
7	MO122753002/0 Out of stock	Pin	£1.78 £1.48
8	MO112520032/0 Out of stock	Washer	£1.39 £1.16
9	MO119035152/0 Out of stock	Grommet	£4.31 £3.59
12	MO112620310/0 Out of stock	Pin	£1.78 £1.48
13	MO122601913/0 Out of stock	Pulley	£15.23 £12.69
14	MO181003085/0 Out of stock	Gear Box F.R.	£146.03 £121.69
15	MO135064383/0 In stock	Belt	£13.60 £11.33
16	MO122601918/0 Out of stock	Pulley. Crankshaft Ø 22.2	£22.55 £18.79
17	MO112714312/0 Out of stock	Grub Screw	£1.39 £1.16
18	MO122450434/0 In stock	Tension Spring	£5.98 £4.98
